Artikl br. 10281
RAUSIKKO C3
nadvišenje za C3 revizioni element, tip X 8.3

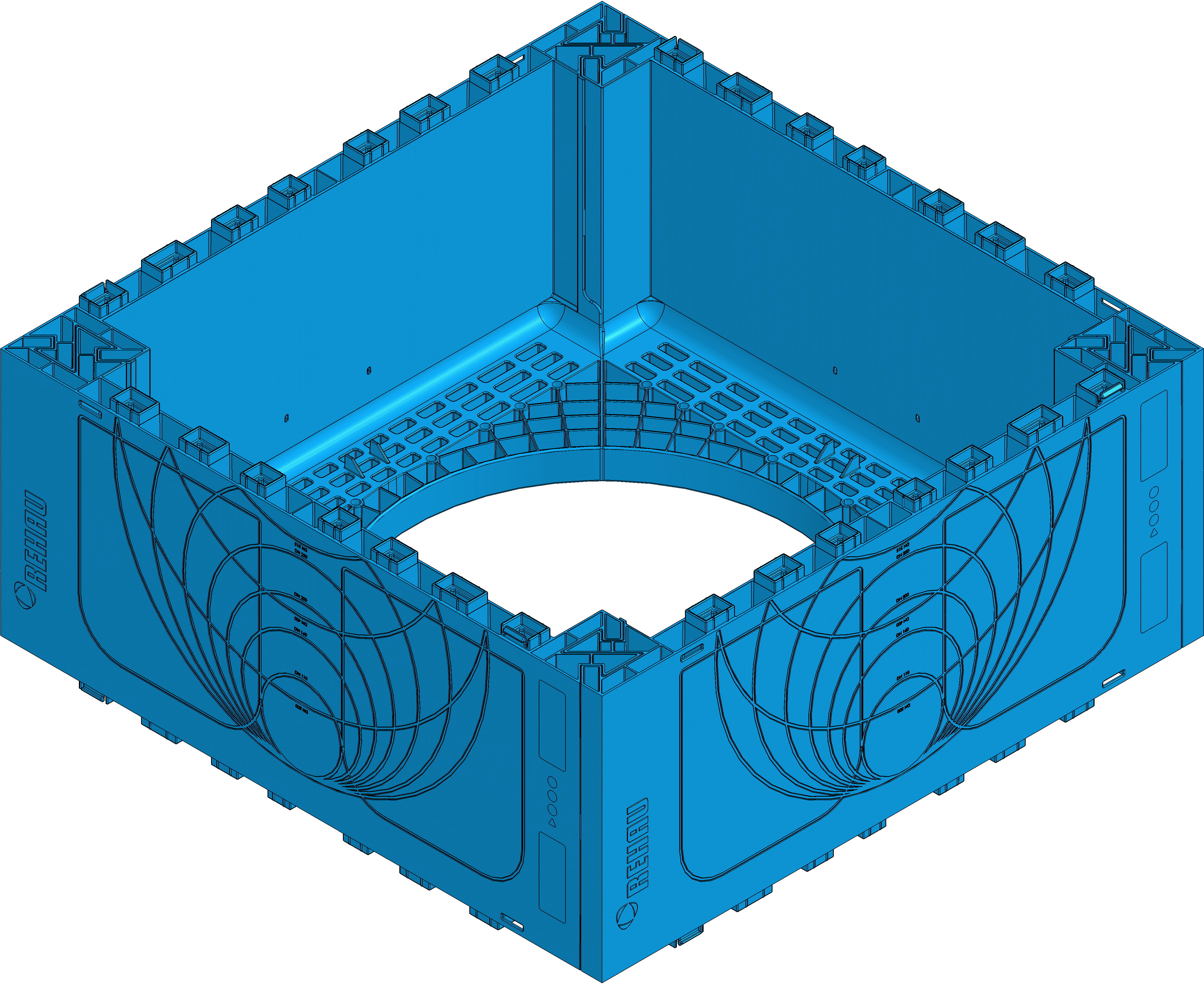

Slika proizvoda
Tehnički nacrt proizvoda
Nacrti
Nacrt (CAD)
Tehnički list proizvoda
Tehničke informacije o proizvodu
Artikl br.
10281
Duljina
800 mm
Širina
800 mm
Visina
330 mm
Težina
13.70 kg
Prodajni tekst
nadvišenje za C3 revizioni element, tip X 8.3
Opis proizvoda
RAUSIKKO C3 type X Stacking element 8.3: Shaft element C3 type X, for connecting/inspection/maintaining/cleaning of RAUSIKKO BOX soakaway/storage system, stackable in multiple layers, colour: blue, material PP, load bearing up to Heavy Goods Vehicle HGV 60 with suitable road structure; regulated construction product with approval from the German technical authority (DIBt), can be planned according to ÖWAV regulation 45; connection possibilities (in all directions): KG DN 110 - DN 250 - channel RAUSIKKO box S/SC/H/HC/SX - front connection spigot DN 200/250 - sand trap as stacking element for C3 type X - 8.6; dimensions: LxWxH 800x800x330mm, installation height 0,33 m; item no. 10281
Tekst brošure
nadvišenje za C3 revizioni element, tip X 8.3
