Article No. 10801
Cover for SPORTFIX Channels
Running track cover, straight, white, for open SPORTFIX channels, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

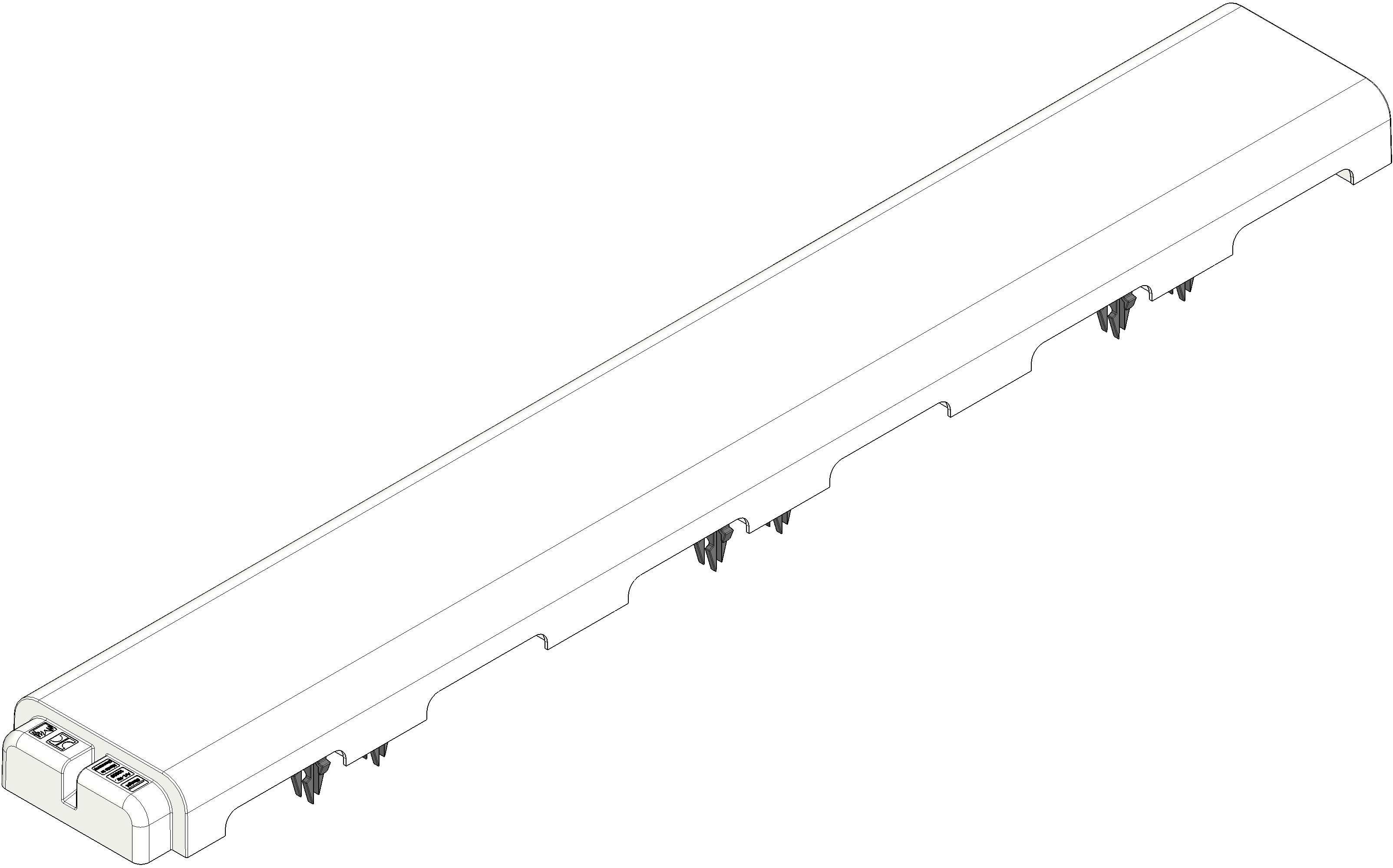

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10801
Length
1000 mm
Width
144 mm
Height
94 mm
Inlay depth
51 mm
Weight
1.45 kg
Material
reinforced Polypropylene
Intake cross-section
0.0 cm²/m
Nominal size
100
Inlet opening
0 mm
Material grating
reinforced Polypropylene
Regulations
EN 1433 + IAKS, DIN 19580
Sales text
SPORTFIX Running track cover, straight, made of composite, white, with positioning pins, for SPORTFIX channels, as inner track border for running tracks, 1 m
Product description
SPORTFIX - Running track cover, straight, with inlets on both sides, made of UV-resistant, shatterproof composite, white, with positioning pins, as inner track border for running tracks, for fixing on open SPORTFIX channels, straight, according to the requirements of World Athletics, LxWxH 1000x144x51 mm, item no. 10801
Packaging unit
-
