Article No. 10739
FASERFIX SUPER 100, class F 900
GUGI-Ductile iron mesh grating MS 15/25 mm, black, 0.5 m
Smaller quantities can be delivered immediately from stock, items will soon be available again in larger quantities
Questions?
Our experienced planning team will be happy to help you.
Get in touch

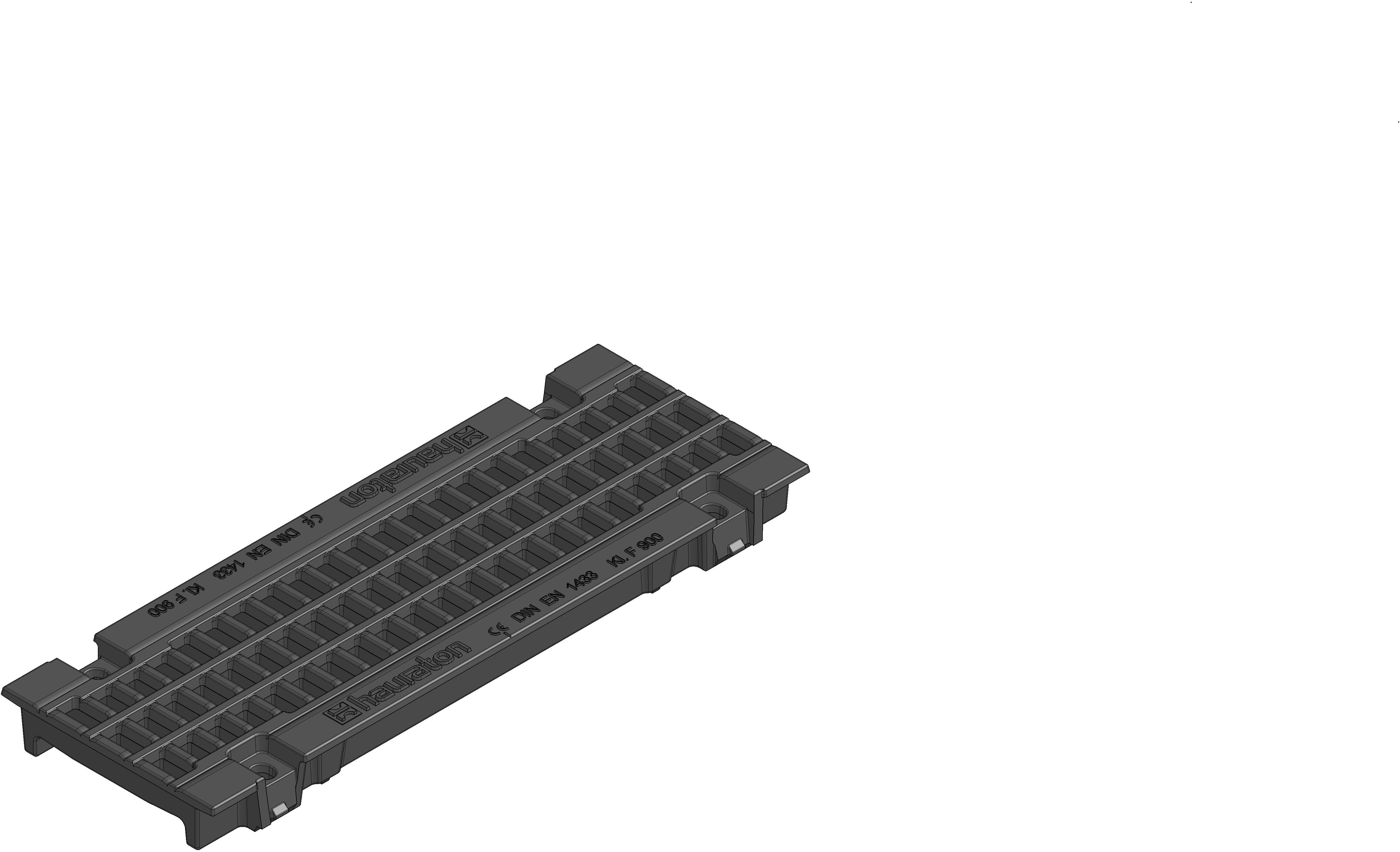

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10739
Length
500 mm
Width
179 mm
Height
47 mm
Inlay depth
40 mm
Weight
8.40 kg
Material
Ductile iron GJS 500-7
Intake cross-section
497.0 cm²/m
Nominal size
100
Inlet opening
15 x 25 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433
Sales text
GUGI-Ductile iron mesh grating MS 15/25 mm, black, cl. F 900, FASERFIX SUPER 100, 0.5 m
Product description
FASERFIX SUPER 100 - GUGI-Ductile iron mesh grating MS 15/25 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, load class A 15 - F 900 according to EN 1433, CE compliant, 4-fold-locking, installation length 500 mm, item no. 10739
Packaging unit
112
Declaration of Performance
