Article No. 7740
SPORTFIX Sand traps
Sand trap channel with mesh grating 30/30 mm, galvanised, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

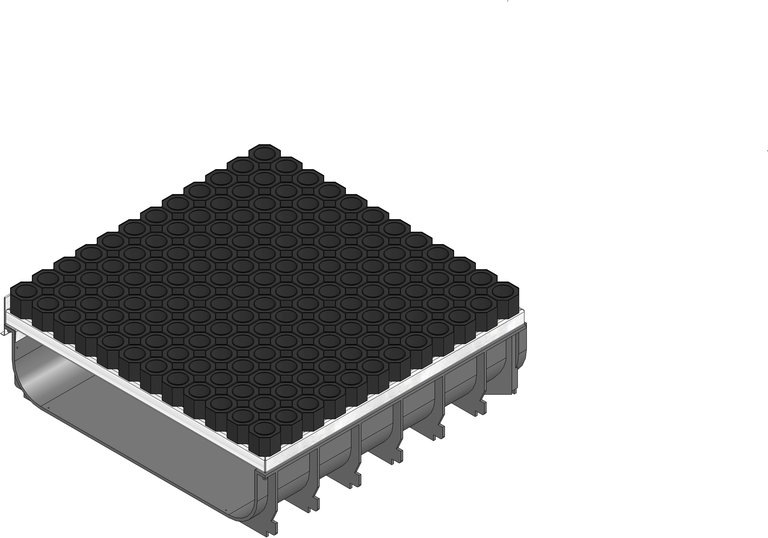

Product image
Technical drawing
Drawings
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
7740
Length
500 mm
Width
500 mm
Height
163 mm
Weight
19.813 kg
Nominal width | System size
460
Edge frame height
-
Clear channel cross-section
-
Inlet cross-section
0 cm²/m
Grating inlay depth
-
Grating design
Sport cover
Inlet opening
0 mm
Material of channel body
recycled polypropylene
Material of grating
hot-dip galvanised steel
Type according to DIN EN 1433
Typ M
Regulations
DIN 1433
Sales text
SPORTFIX Sand trap channel with mesh grating MS 30/30 mm, galvanised and securely fixed rubber mat, 1 m
Product description
SPORTFIX Sand trap channel, channel body made of recycled polypropylene, black, with preformed connection possibility DN/OD 110, with edge frame made from galvanised steel on one side for track connection, with mesh grating MS 30/30 mm, galvanised, and securely fixed rubber mat, pedestrian-accessible, LxWxH 1000 (2x500)x500x163 mm, item no. 7740
Brochure text
Sand trap channel with mesh grating 30/30 mm, galvanised, 1.0 m
Declaration of Performance
Tender Texts
Installation example
A 15 - running track / long jump
A 15 - running track / long jump - as double strand
