Article No. 65421
Extension frame element 40 x 40
Fram, type 55, galvanised
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

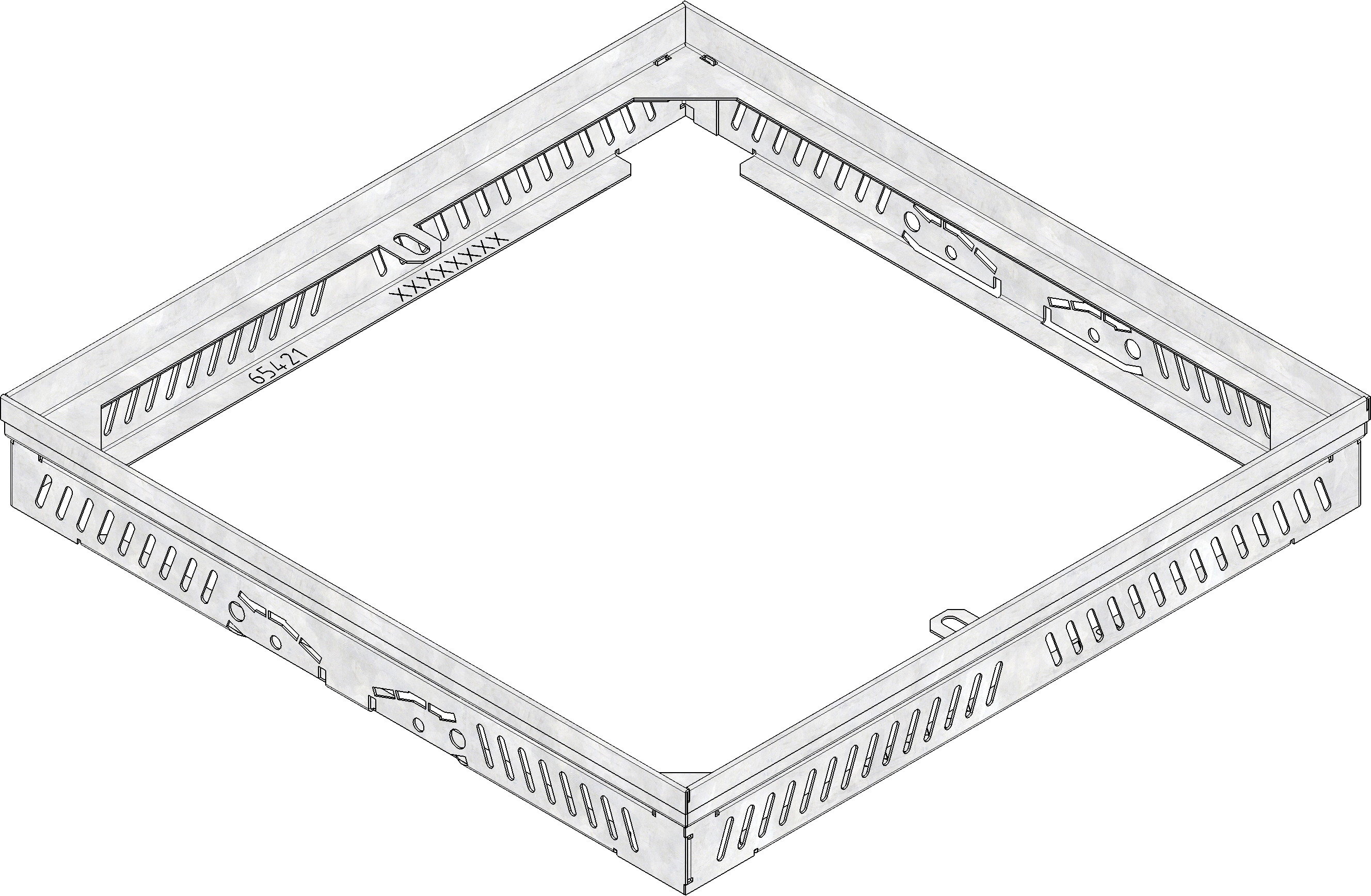

Product image
Technical drawing
Drawings
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
65421
Length
400 mm
Width
400 mm
Height
55 mm
Weight
1.12 kg
Nominal width | System size
30x30
Material of bottom part
strip galvanized steel
Sales text
Extension frame element 40/40 type 55 as inspection shaft of installation height 55 mm, galvanised, cl. A 15, DACHFIX POINT Gully 40/40 type 55
Product description
DACHFIX POINT Gully 40/40 type 55, made of galvanised steel, also for maintenance purposes above a flat roof drain, with connection possibility for cross-intersection channel, load class A 15, LxWxH 400x400x55 mm, item no. 65421
Brochure text
Fram, type 55, galvanised
Packaging unit
60 PAL
