Article No. 10803
SPORTFIX channels with track boundaries
Type 010, straight, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

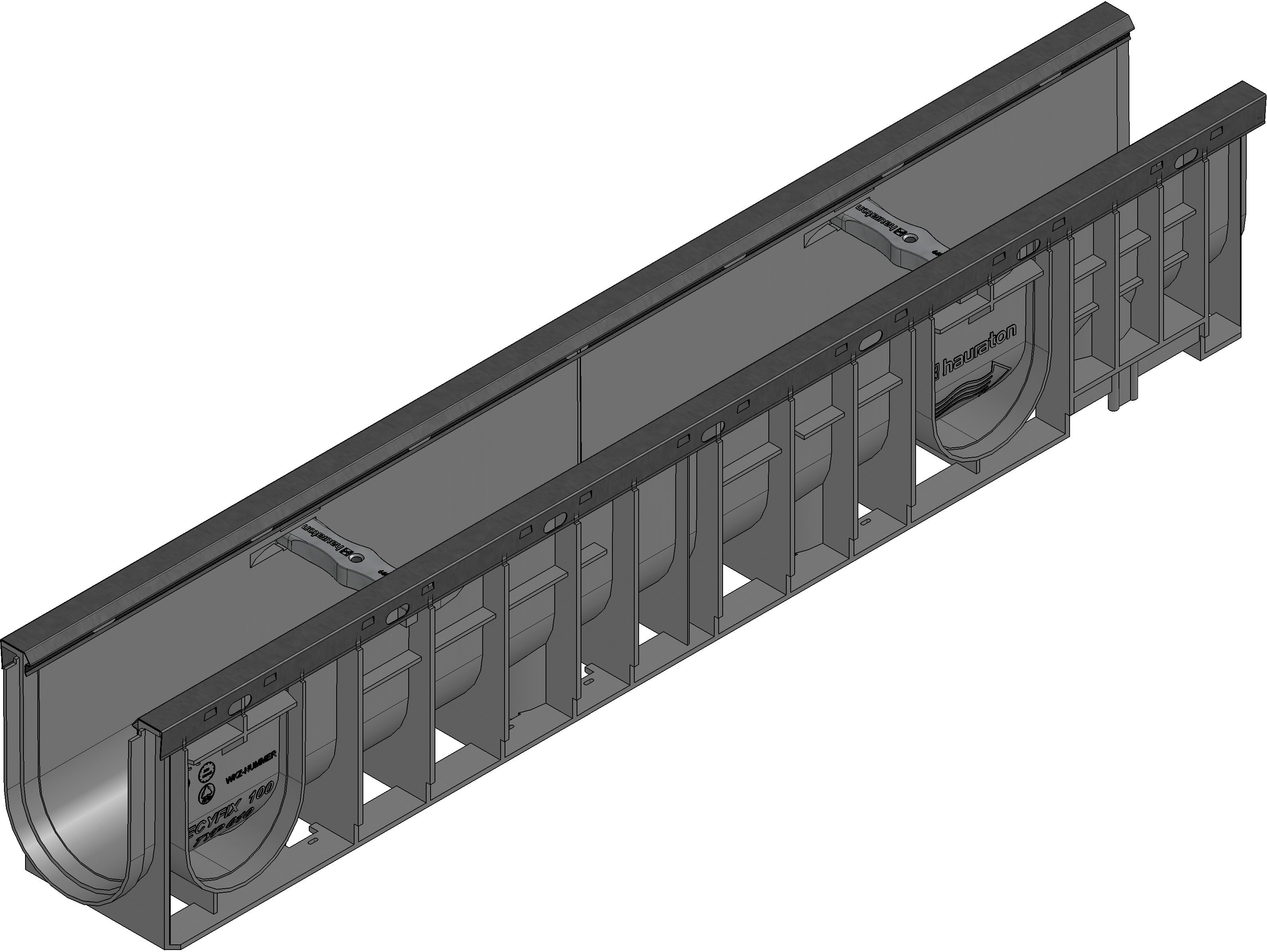

Product image
Technical drawing
Drawings
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
10803
Length
1000 mm
Width
146 mm
Height
182 mm
Weight
3.09 kg
Nominal width | System size
100
Edge frame height
-
Material of channel body
recycled polypropylene
Material of edge frame
KTL coated steel
Type according to DIN EN 1433
Typ M
Regulations
EN 1433 + IAKS
Sales text
SPORTFIX Channel body type 010 with edge frames made of KTL-coated steel, straight, 1 m
Product description
SPORTFIX 100 Typ 010 - Channel body, straight, made of recycled polyethylene, with edge frames made of KTL-coated steel, for easy installation of running track surface, with vertical connection possibility DN/OD 110, LxWxH 1000x146x182 mm, item no. 10803
Brochure text
Type 010, straight, 1.0 m
Packaging unit
70 PAL
Declaration of Performance
Tender Texts
Installation example
A 15 - playing field
