Article No. 10806
SPORTFIX Slotted Channels
Type 010, straight, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

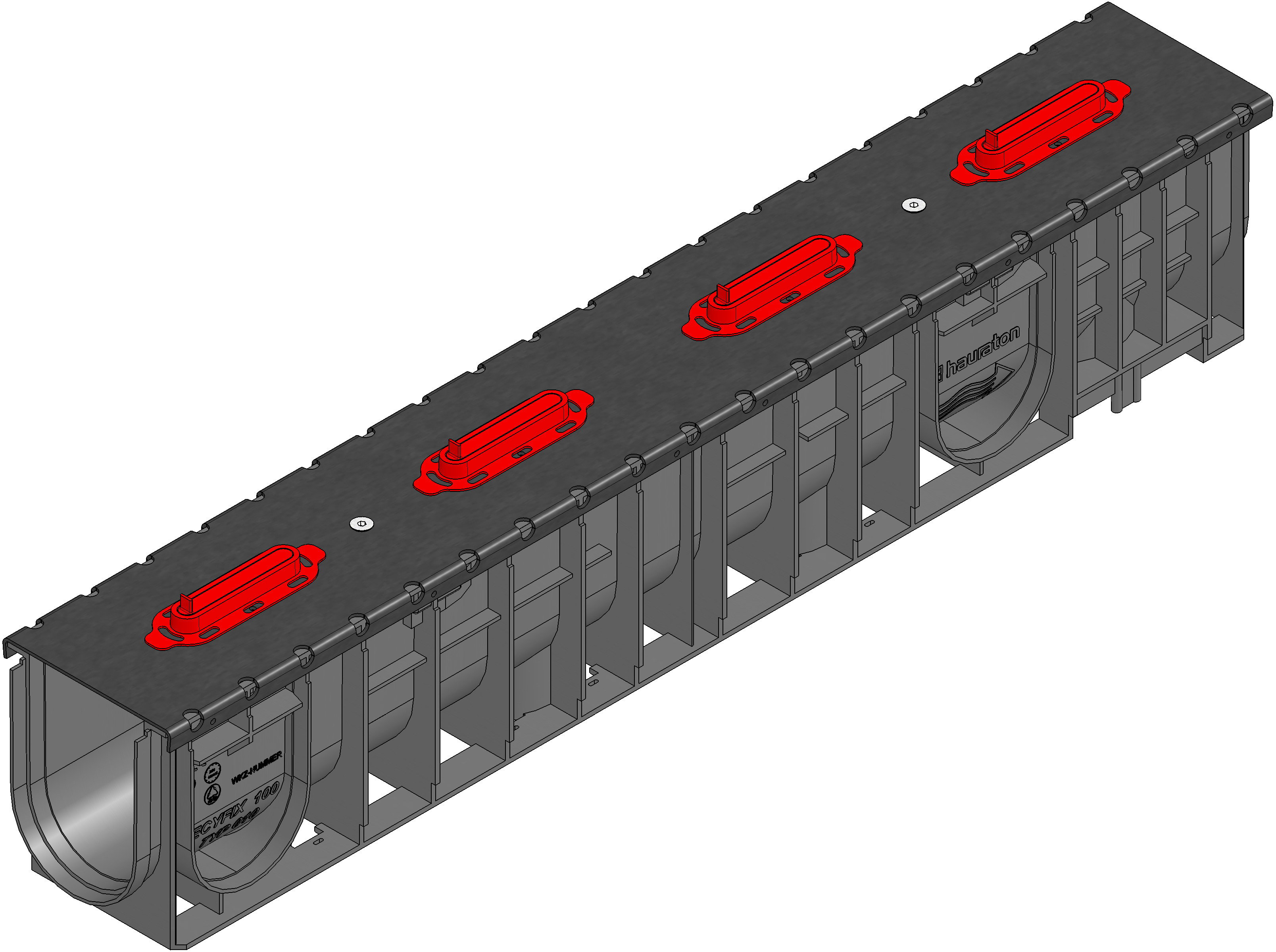

Product image
Technical drawing
Drawings
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
10806
Length
1000 mm
Width
152 mm
Height
181 - 184 mm
Weight
5.79 kg
Nominal width | System size
100
Edge frame height
-
Clear channel cross-section
142 cm²
Material of channel body
Stahl
Material of edge frame
KTL coated steel
Type according to DIN EN 1433
Typ M
Regulations
DIN 19580, EN 1433 + IAKS
Sales text
SPORTFIX Slotted channel 100 type 010, straight, 1 m
Product description
SPORTFIX Slotted channel 100 type 010 made of recycled polypropylene, black, with integrated slotted cover without turf edge, KTL-coated, with EPDM inserts, brick-red, for an easy installation of running track surfaces, LxWxH 1000x152x184 mm, item no. 10806
Brochure text
Type 010, straight, 1.0 m
Packaging unit
35 PAL
Declaration of Performance
Tender Texts
Installation example
A 15 - playing field
A 15 - playing field - Track border for running tracks
B 125 - artificial turf
