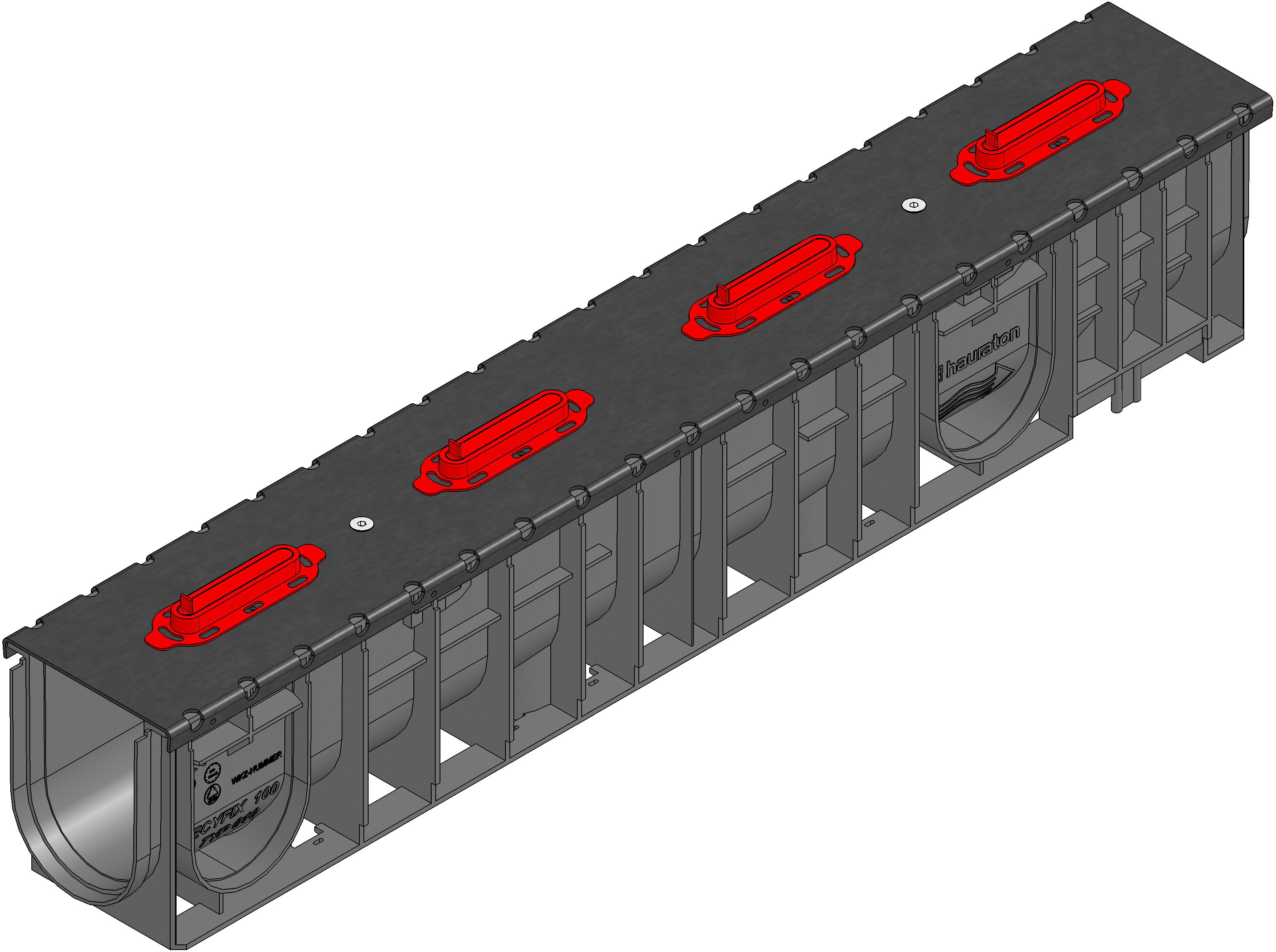

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10806
Length
1000 mm
Width
152 mm
Height
184 mm
Weight
5.79 kg
Height of angle housing
-
Nominal size
-, 100
Internal channel cross-section
-
Fall
-
Type according to DIN EN 1433
M
Regulations
EN 1433 + IAKS, DIN 19580
Sales text
SPORTFIX Slotted channel 100 type 010, straight, 1 m
Product description
SPORTFIX Slotted channel 100 type 010 made of recycled polypropylene, black, with integrated slotted cover without turf edge, KTL-coated, with EPDM inserts, brick-red, for an easy installation of running track surfaces, LxWxH 1000x152x184 mm, item no. 10806
Packaging unit
35
Tender Texts
Installation example
running track class A 15,
running track / playing field class A 15,
running track / playing field class A 15,
running track class A 15,
running track class B 125,
running track / playing field class B 125,
