Article No. 96600
DRAINFIX TWIN, Seepage element made of recycled composite
TWIN 0, black (1 part, 253 L), closed
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

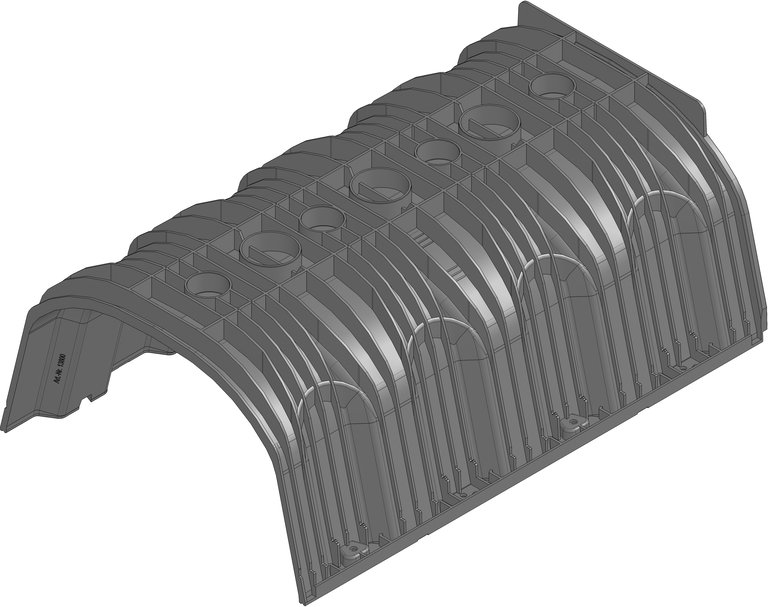

Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
96600
Length
1145 mm
Width
760 mm
Height
454 mm
Weight
11.00 kg
Material
recycled, modified Polypropylene
Nominal size
650
Sales text
DRAINFIX TWIN 0 Half-shell, black (1 part, 253 L), solid
Product description
DRAINFIX TWIN 0 solid half-shell, made or recycled polypropylene, black, for attenuation, retention and infiltration of rainwater, suitable also for inspection of DRAINFIX TWIN units, volume 253 litres, trafficable up to HGV 30 with suitable structure, LxWxH 1145x760x455 mm, item no. 96600
Packaging unit
32
Volume
0.0 l

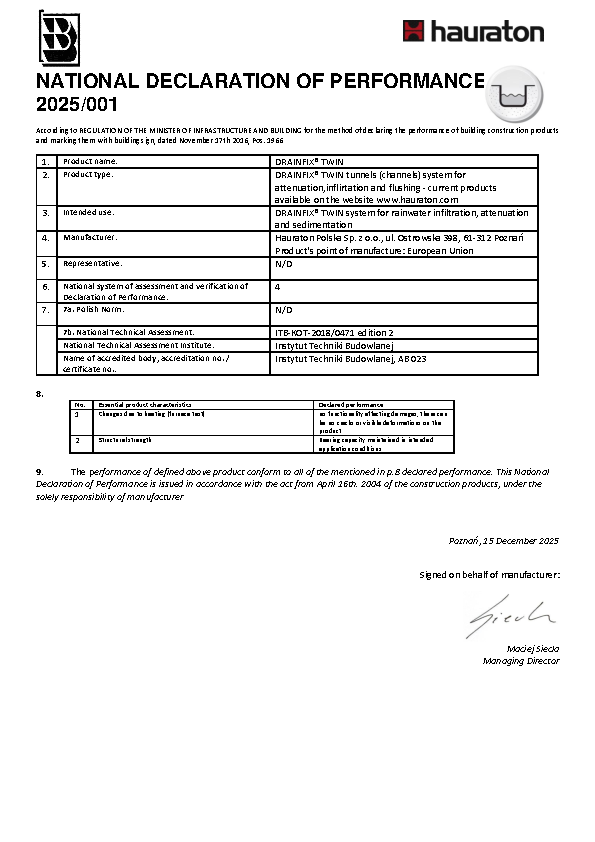

national declaration of performance
Nation DoP
Tender Texts

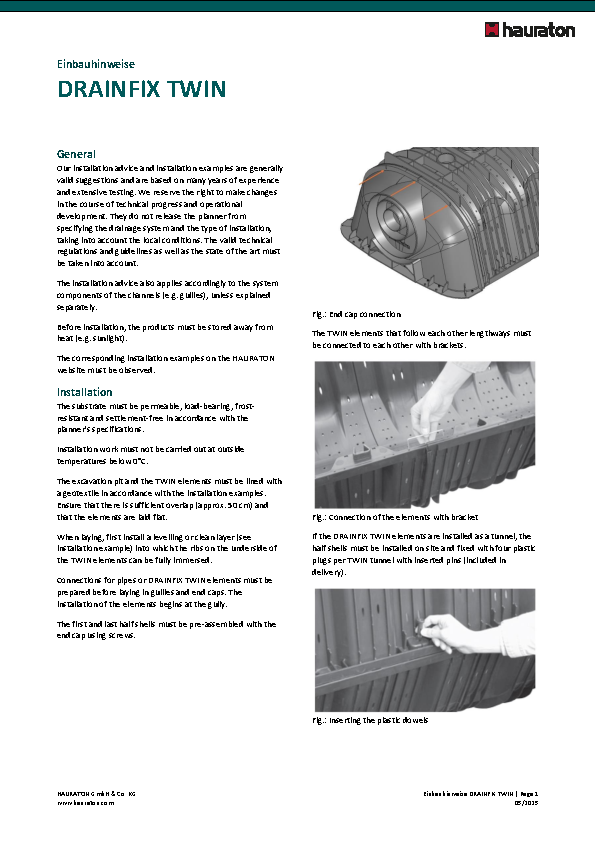

Installation instructions
Installation guide
Installation guide
Installation example
green space class Walkable, DRAINFIX TWIN 0/1, 1/1, 0/0
green space class Walkable, DRAINFIX TWIN 0/1, 1/1, 1/0 (3x)
green space class Walkable, DRAINFIX TWIN 0/1, 1/1, 1/0 in two levels
green space class Walkable, DRAINFIX TWIN 1 + 0 (3x)
Pavement class SLW 30, DRAINFIX TWIN 0/1, 1/1, 1/0 (3x)
Pavement class SLW 30, DRAINFIX TWIN 0/1, 1/1, 1/0 in two levels
Asphalt class SLW 30, DRAINFIX TWIN 1 + 0 (3x)
