Article No. 10603
End caps
for NW 200, for Type 450, with integrated pipe outlet DN/OD 200, made of PP
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

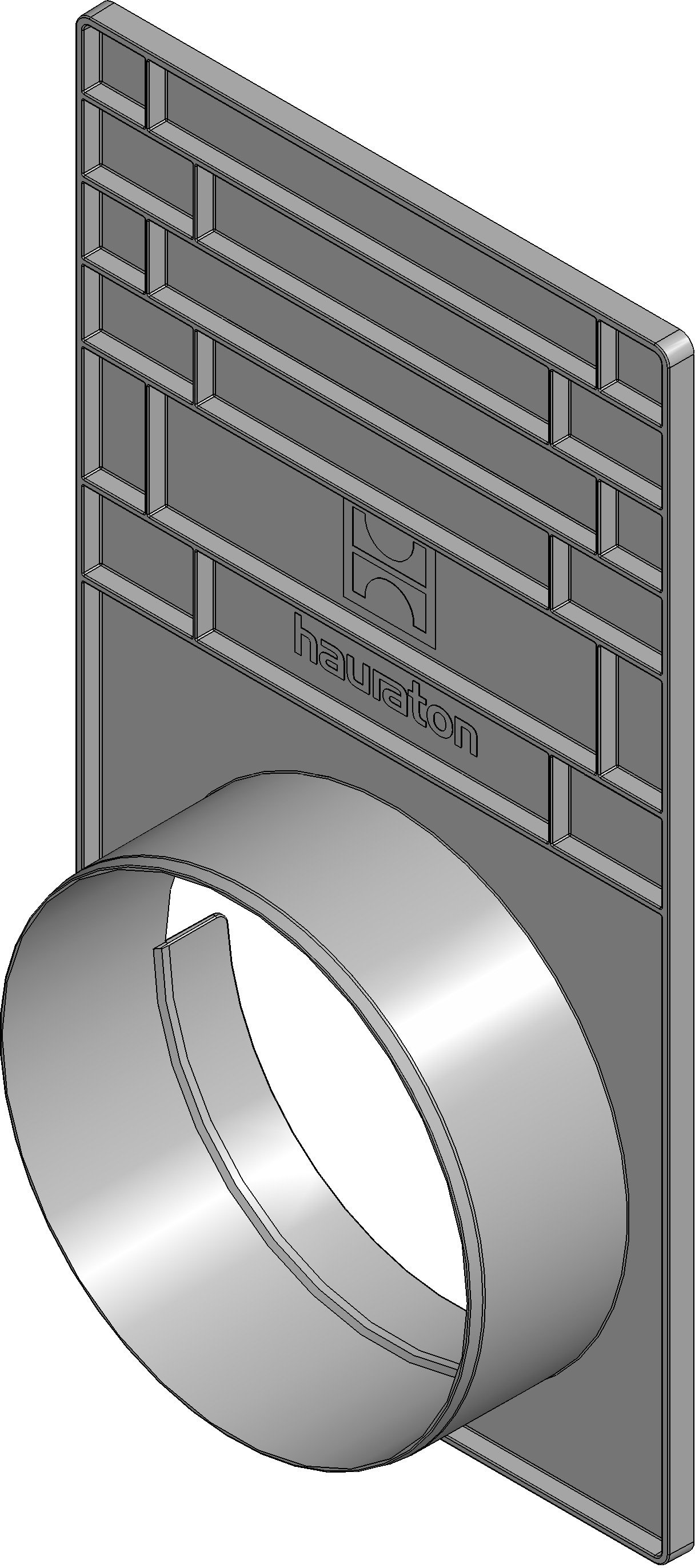

Product image

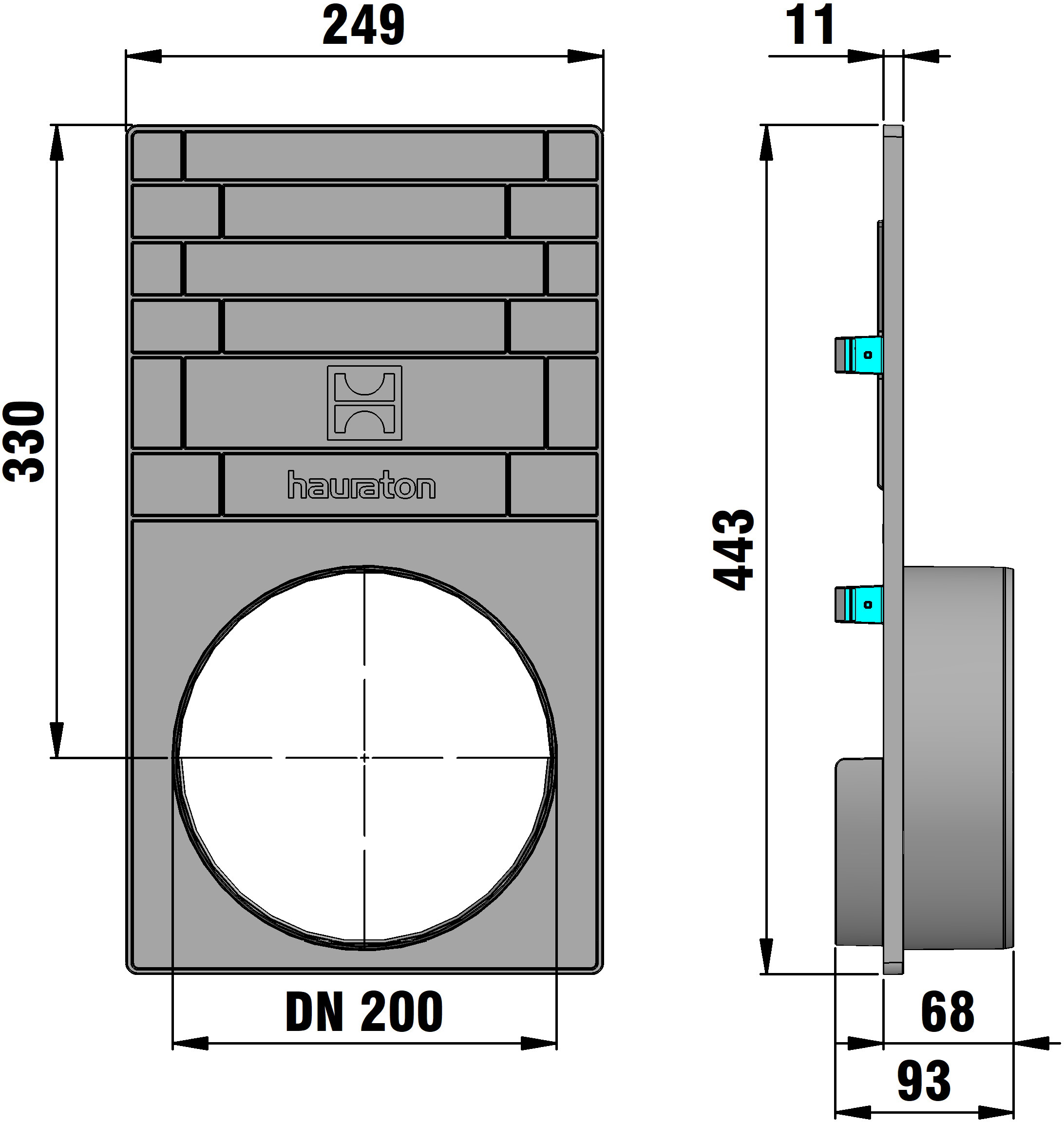

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10603
Width
249 mm
Height
443 mm
Weight
0.40 kg
Material
recycled, modified Polypropylene
Nominal size
200
Sales text
End cap with integrated pipe outlet DN/OD 200, made of PP, RECYFIX MONOTEC 200 type 450
Product description
RECYFIX MONOTEC 200 type 450 - End cap made of recycled polypropylene, for end of channel run, with integrated pipe outlet DN/OD 200 , item no. 10603
Packaging unit
111
