Article No. 22004

FASERFIX SUPER 150 with gradient 0.5 %, up to load class F 900

Type 4, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

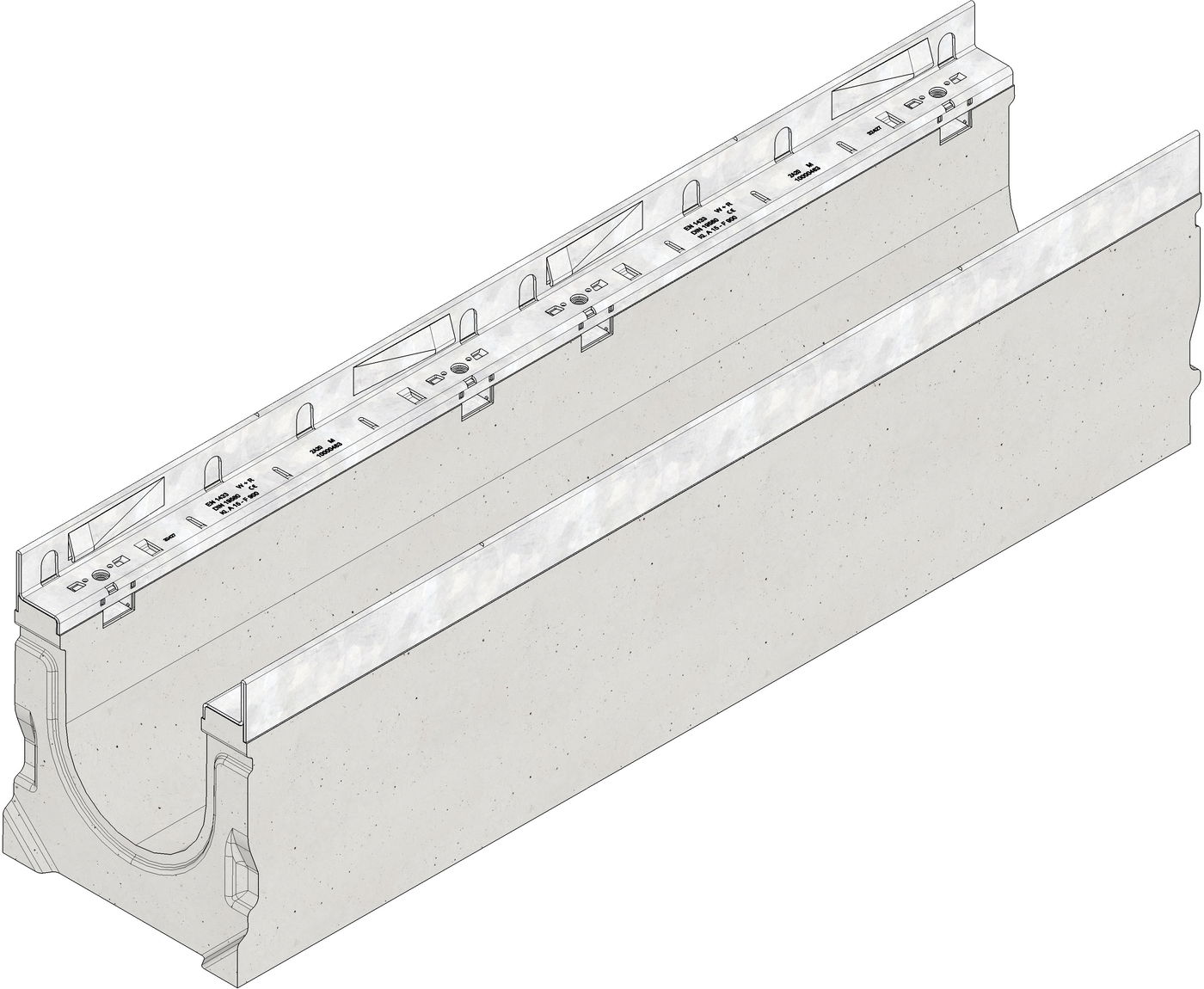

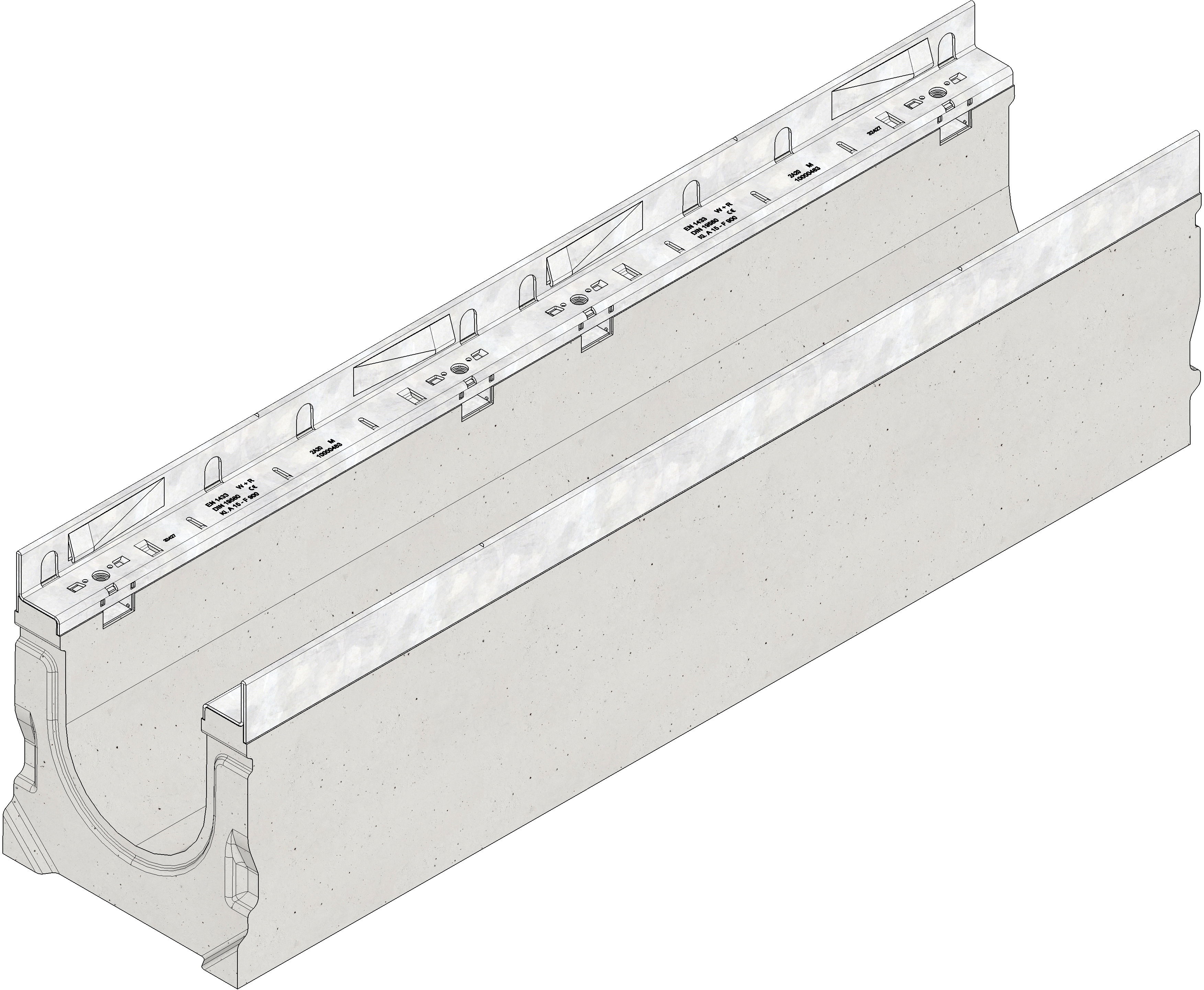

Product image

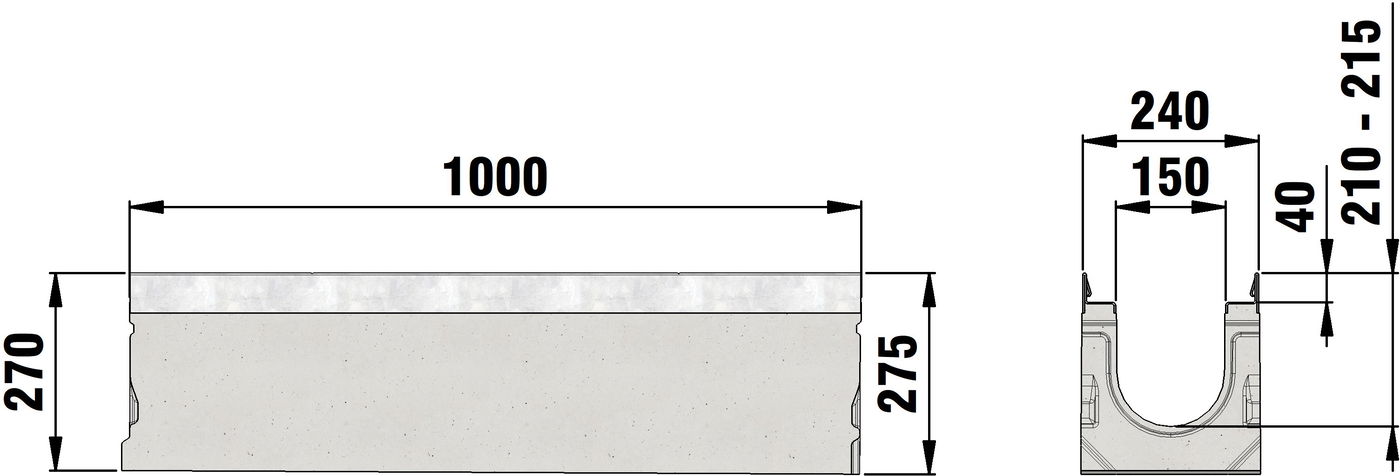

Technical drawing

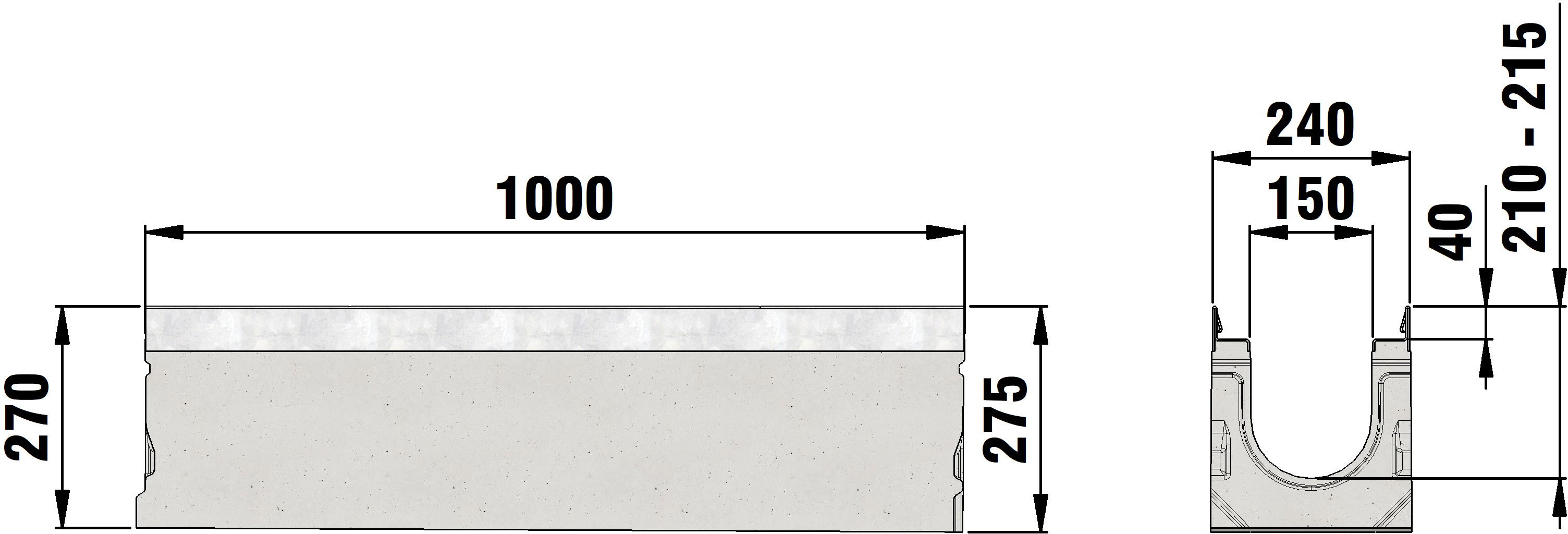

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
22004
Length
1000 mm
Width
240 mm
Height
270 - 275 mm
Weight
80.20 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
150
Internal channel cross-section
235 cm²
Fall
0.5 %
Fixing type
SIDE-LOCK, Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 150 Channel body type 4 with edge frames made of galvanised steel, 1 m
Product description
FASERFIX SUPER 150 type 1 - 19 - Channel body made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, sloping depth channel 0.5 %, with edge frame made of galvanised steel, with boltless quick-locking system SIDE-LOCK for quick and easy installation of the cover, 8-fold bolting additionally possible, 8-fold locking, with sealing groove, LxWxH 1000x240x255-350 mm, item no. 22001 - 22019
