Article No. 24445

FASERFIX SUPER 300 with ductile iron angle housings, up to load class F 900

Type 01L, with opening DN/OD 200, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

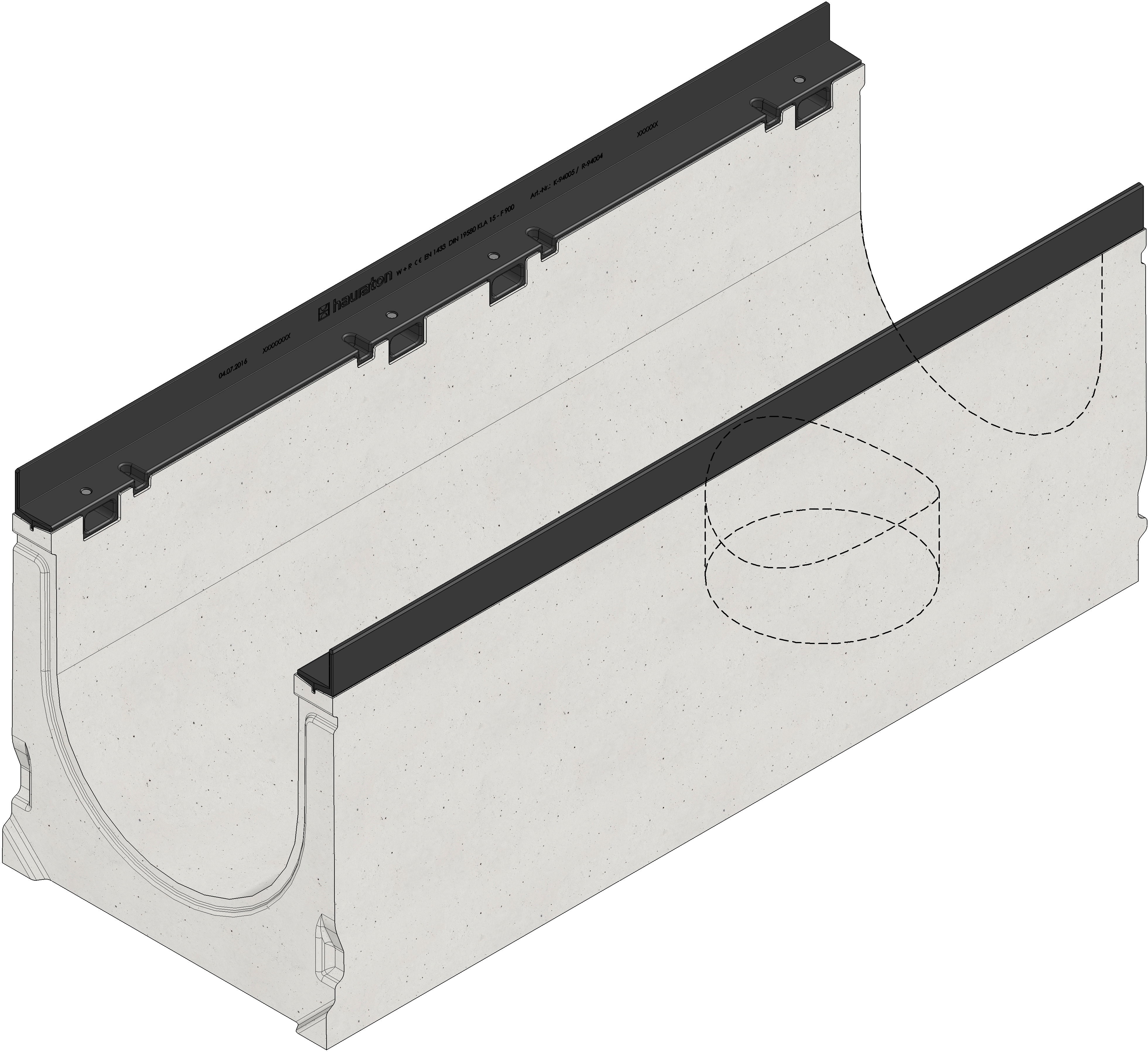

Product image

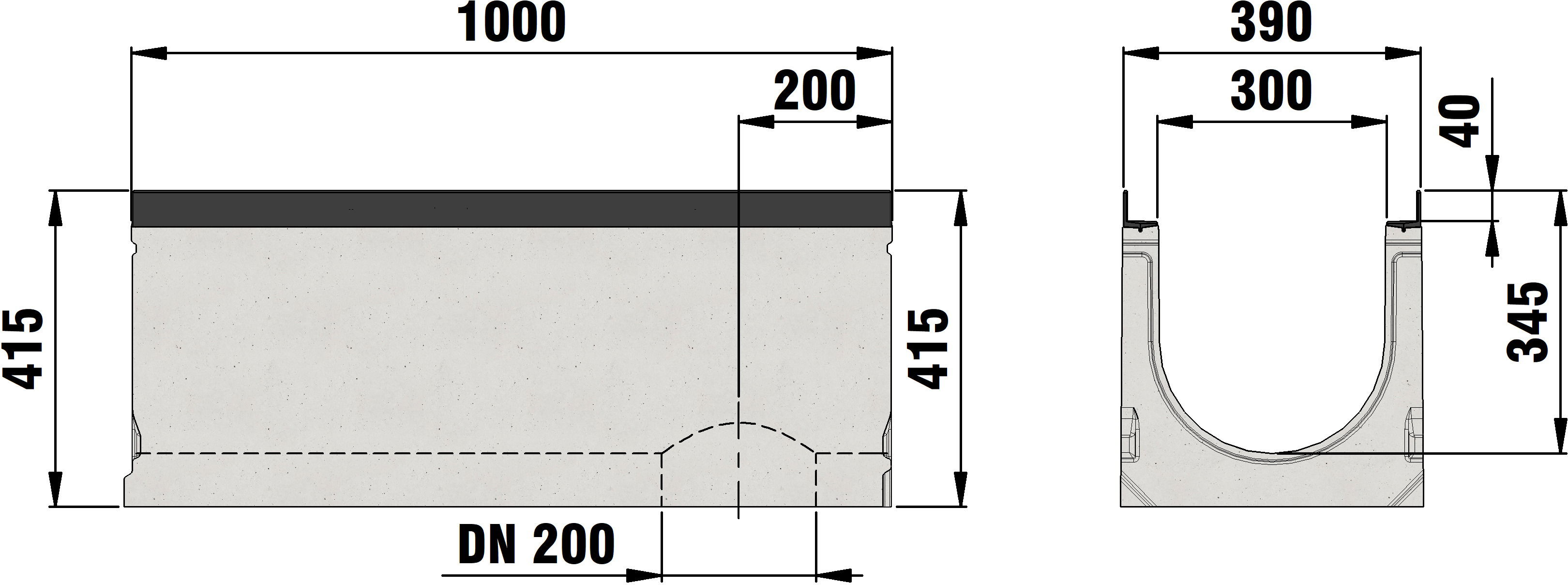

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
24445
Length
1000 mm
Width
390 mm
Height
415 mm
Weight
150.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Height of angle housing
40 mm
Nominal size
300
Internal channel cross-section
810 cm²
Fall
-
Fixing type
Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 300 Channel body type 01L with outlet DN/OD 200, with edge frames made of KTL-coated ductile iron, 1 m
Product description
FASERFIX SUPER 300 type 01L - Channel body made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with vertical connection possibility DN/OD 200 at the end of the channel in channel base, with edge frame made of KTL-coated ductile iron, with sealing groove, cover inlay depth 40 mm, 8-fold bolting per 0.5 m piece, LxWxH 1000x390x415 mm, item no. 24445
Packaging unit
6

Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Asphalt class D 400,

Installation example

Asphalt class D 400, in ramps

Installation example

Asphalt class D 400, with curb

Installation example

Concrete class D 400, with curb

Installation example

Asphalt class D 400 - E 600,

Installation example

Concrete class D 400 - F 900,

Installation example

Pavement class D 400,

Installation example

Asphalt class D 400 - E 600,

Installation example

Asphalt class D 400 - E 600, with ledge stone

Installation example

Pavement class D 400 - E 600, in ramps

Installation example

Concrete class D 400 - F 900, in ramps

Installation example

Concrete class E 600,

Installation example

Asphalt class F 900,

Installation example

Concrete class F 900,

Installation example

Concrete class D 400, as double strand

Installation example

Pavement class D 400, as double strand

Installation example

Asphalt class E 600, as double strand

Installation example

Asphalt class F 900, as double strand

Installation example

Concrete class A 15 - C 250, Flat channel

Installation example
