Article No. 10465
RECYFIX MONOTEC ULTRA 200, up to load class F 900
Type 010, with permanently integrated ductile iron cover SW 2 x 75/18 mm, black, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

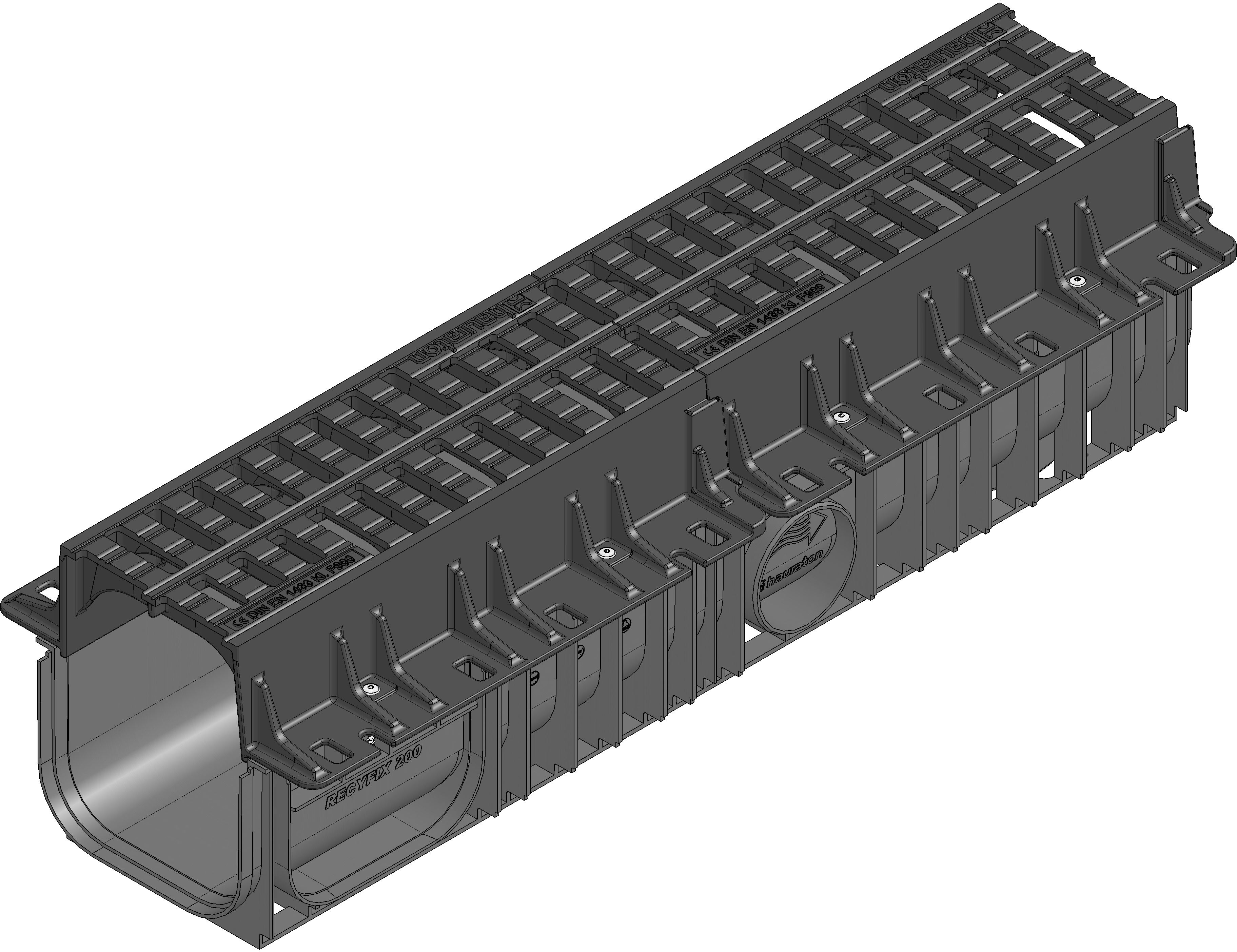

Product image

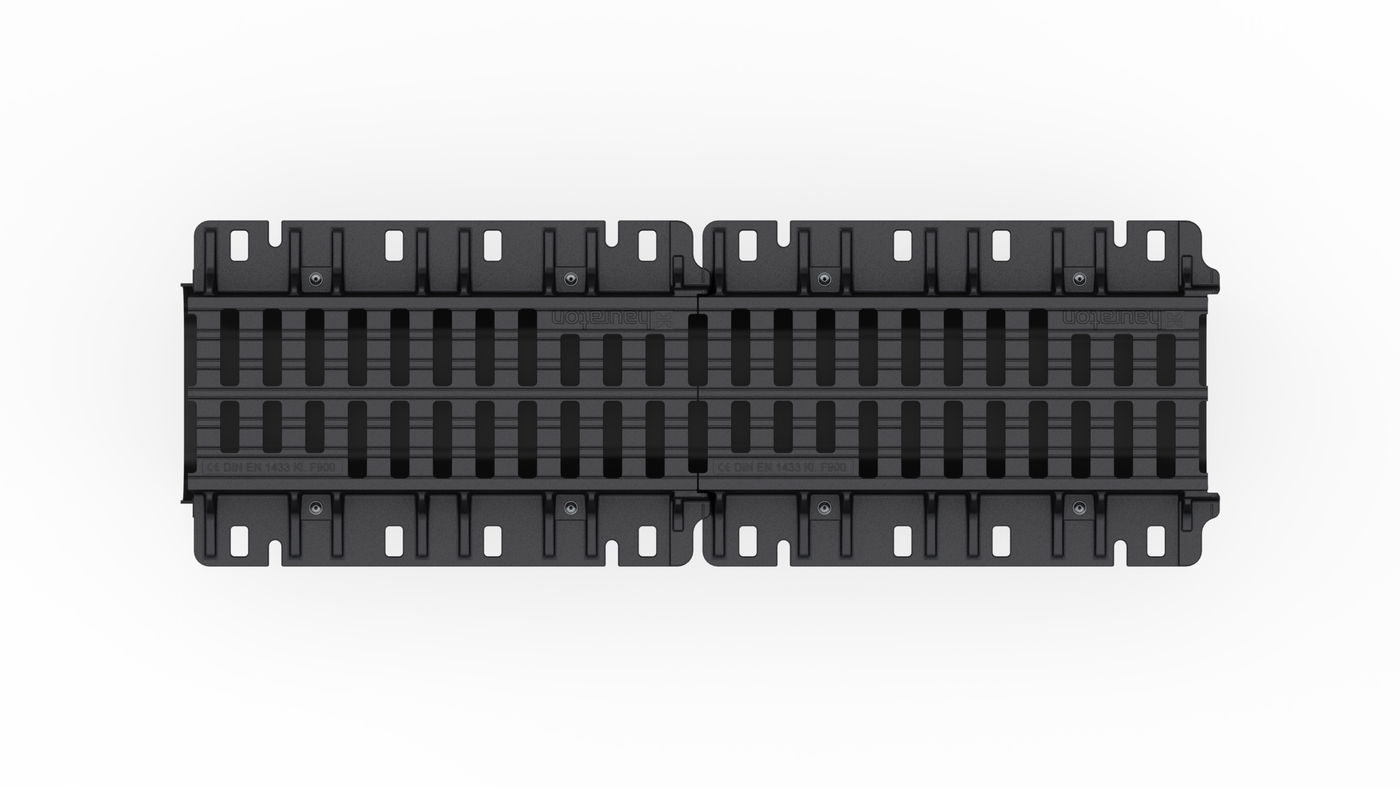

Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10465
Length
1000 mm
Width
340 mm
Height
281 mm
Weight
32.65 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene
Height of angle housing
28 mm
Intake cross-section
580.0 cm²/m
Nominal size
200
Internal channel cross-section
410 cm²
Fall
-
Type according to DIN EN 1433
M
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX MONOTEC ULTRA 200 type 010 with permanently integrated ductile iron cover 2x SW 75/18 mm, black, cl. F 900, 1 m
Product description
RECYFIX MONOTEC ULTRA 200 type 010 - Monolithic channel, consists of channel body made of recycled polypropylene and permanently integrated ductile iron cover, made of spheroidal ductile iron EN-GJS-500-7, 2x SW 75/18 mm, black, according to EN 1433, with lateral (DN/OD 110) and vertical (DN/OD 110/160) connection possibility, load class A 15 - F 900 according to EN 1433, LxWxH 1000x340x281 mm, item no. 10465
Packaging unit
16
Declaration of Performance
Tender Texts
Installation example

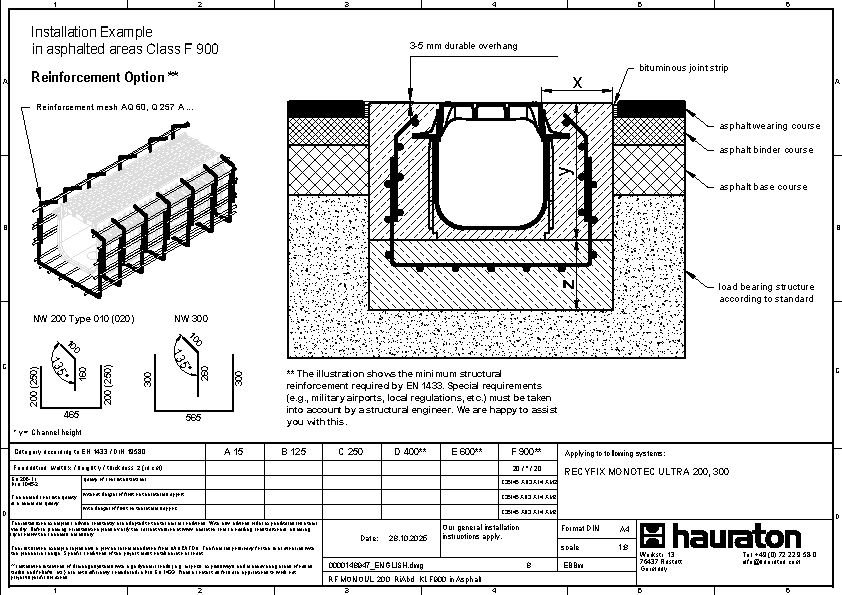

Asphalt class F 900,

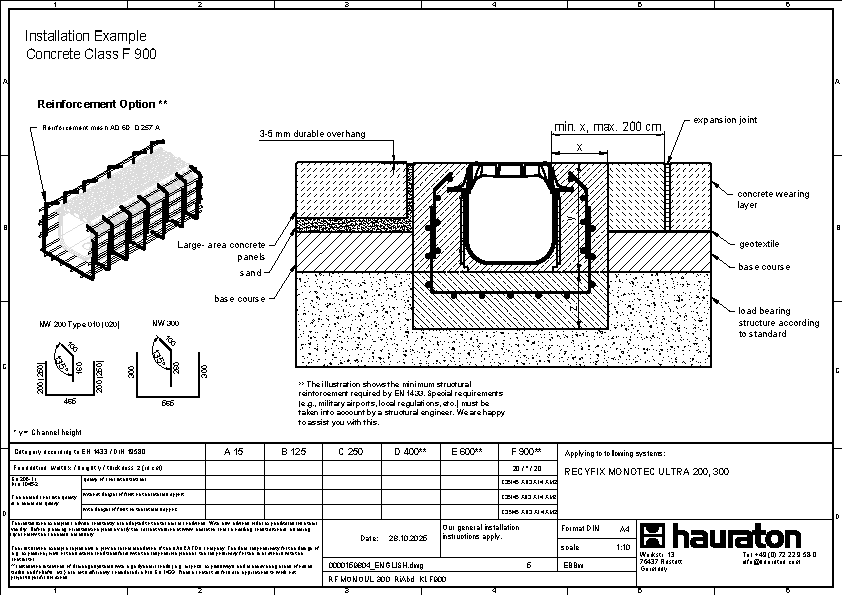

Concrete class F 900,
