Article No. 40106

RECYFIX NC 200, class D 400

type 01 with ductile iron grate, SW 198/10 mm in FIBRETEC design, black, 4-fold screwed, 0.5 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

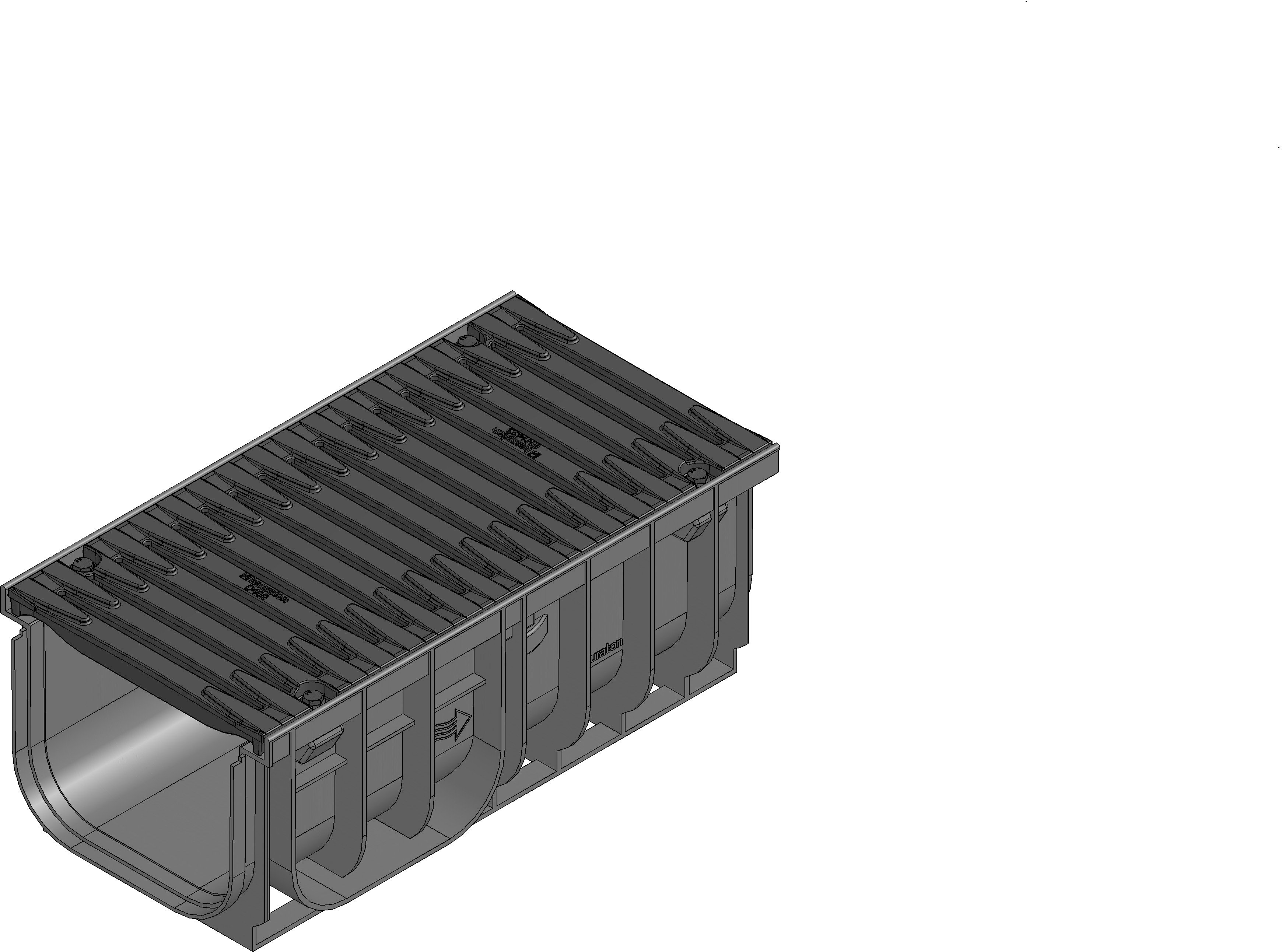

Product image

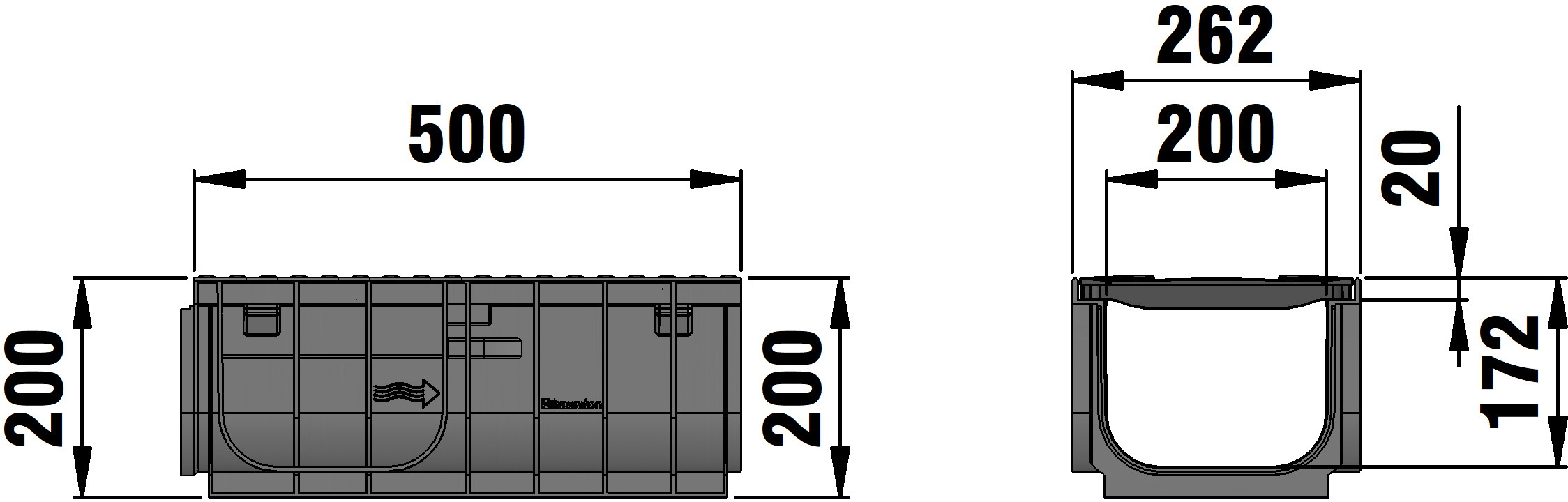

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
40106
Length
500 mm
Width
262 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
9.80 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
572.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC 200 Channel type 010 with ductile iron cover SW 198/10 mm in FIBRETEC design, black, cl. D 400, 0.5 m
Product description
RECYFIX NC 200 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with ductile iron cover slot width 198/10 mm in FIBRETEC design, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, with 4-fold bolting load class A 15 - D 400 according to DIN 19580/EN 1433, LxWxH 500x262x200 mm, item no. 40106
Packaging unit
40

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Concrete class D 400 - E 600, channel height ≥ 150 mm

Installation example

Asphalt class D 400 - E 600, channel height ≥ 150 mm

Installation example

Pavement class D 400, channel height ≥ 150 mm

Installation example

Asphalt class A 15 - B 125, as double strand

Installation example

Pavement class A 15 - C 250, as double strand

Installation example

Pavement class D 400, as double strand

Installation example

Asphalt class E 600, as double strand

Installation example

Concrete class C 250 - D 400, as double strand

Installation example

Asphalt class C 250 - D 400, as double strand

Installation example

Concrete class E 600, as double strand

Installation example

Installation instructions
