Article No. 47166

RECYFIX PRO 100, class A 15

Type 010 with longitudinal cover Filigree, bar distance 8 mm, stainless steel, locked, 1.0 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

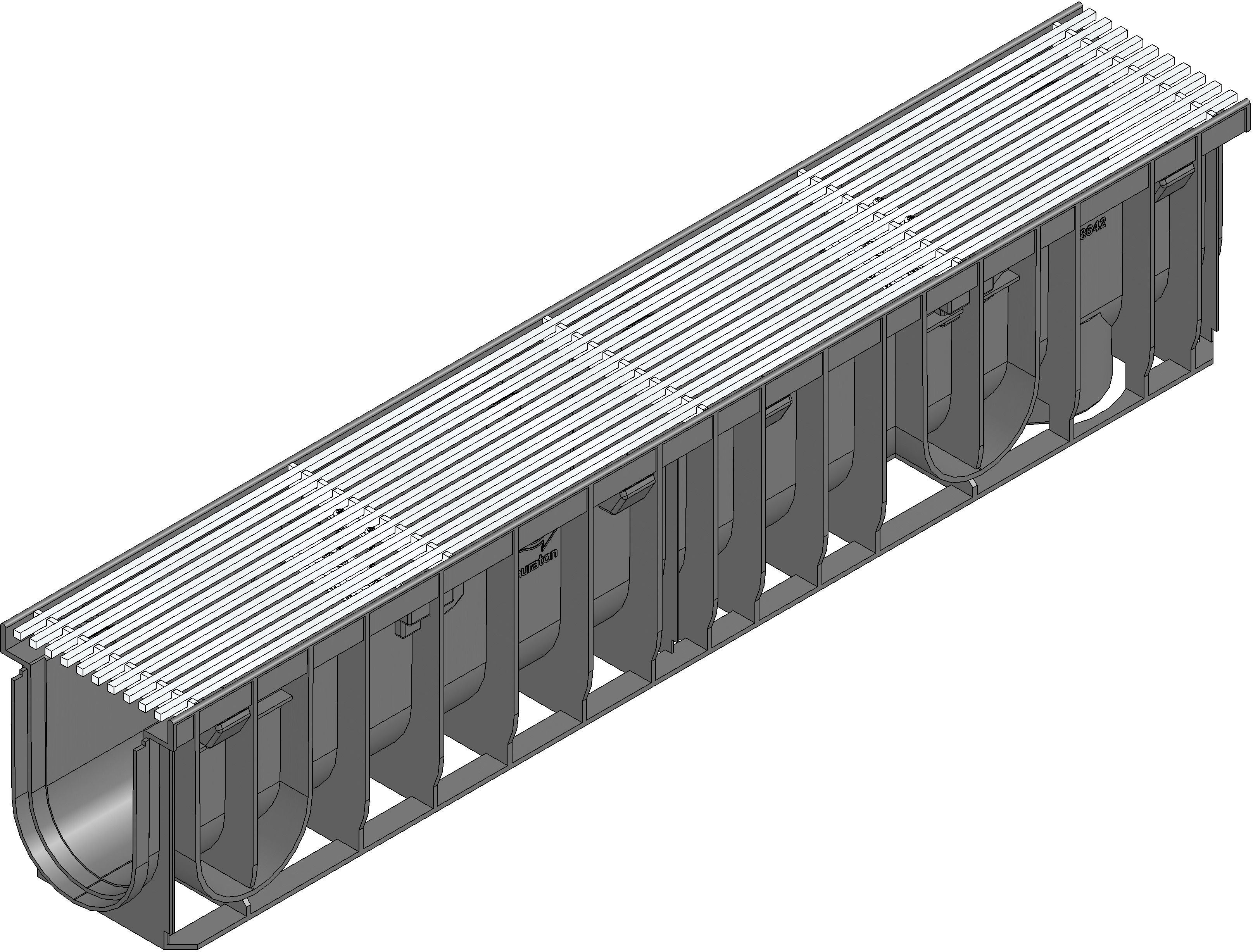

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

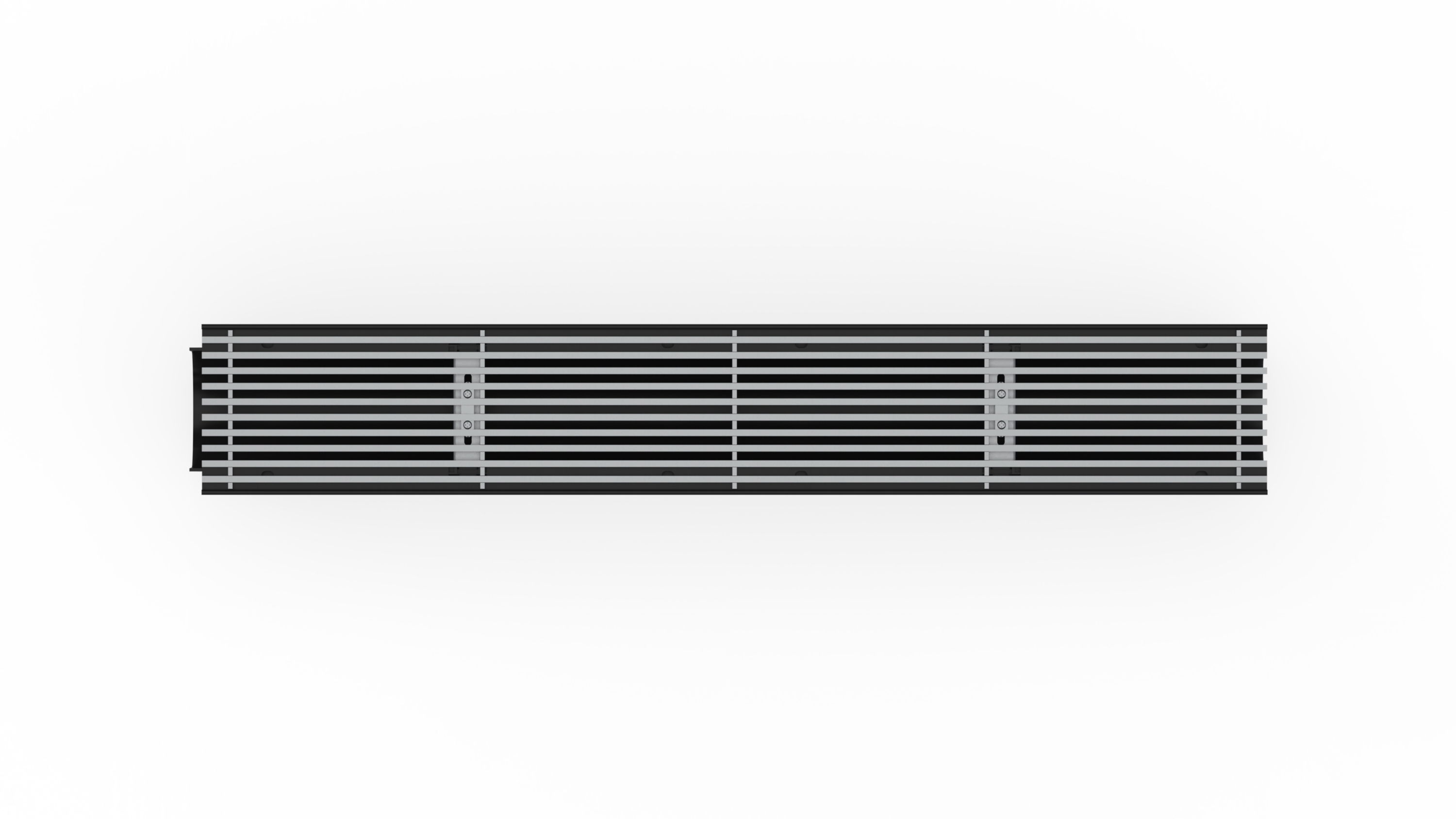

Top view

Data Sheet

Technical information and metrics
Article No.
47166
Length
1000 mm
Width
160 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
5.99 kg
Material
recycled, modified Polypropylene, Stainless steel (V2A), Stainless steel 1.4301
Intake cross-section
863.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Stainless steel 1.4301
Sales text
RECYFIX PRO 100 Channel type 010 with integrated edge frames, with longitudinal cover Filigree, bar distance 8 mm, stainless steel , cl. A 15, locked, 1 m
Product description
RECYFIX PRO 100 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 110, with longitudinal cover Filigree bar distance 8 mm, stainless steel CNS 1.4301, with locking, load class A 15 according to EN 1433, LxWxH 1000x160x200 mm, item no. 47166
Packaging unit
35

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

water-bound road surfaces class A 15,

Installation example

Asphalt class A 15 - B 125,

Installation example

Pavement class A 15 - B 125,

Installation example

water-bound road surfaces class A 15 - B 125,

Installation example

Pavement class A 15 - B 125,

Installation example

Cemented floor class A 15 - C 250,

Installation example

Pavement class C 250,

Installation example

Concrete class C 250,

Installation example

Asphalt class C 250,

Installation example

Pavement class C 250,

Installation example

Asphalt class A 15 - B 125, as double strand

Installation example

Pavement class A 15 - C 250, as double strand

Installation example

Asphalt class C 250, as double strand

Installation example

Concrete class C 250, as double strand

Installation example

Installation instructions
Installation instructions
