Article No. 41457
Trash boxes
for NW 100, with edge frames made of stainless steel and silt bucket made of recycled PP, with ductile iron cover SW 80/6 mm, black, class C 250, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

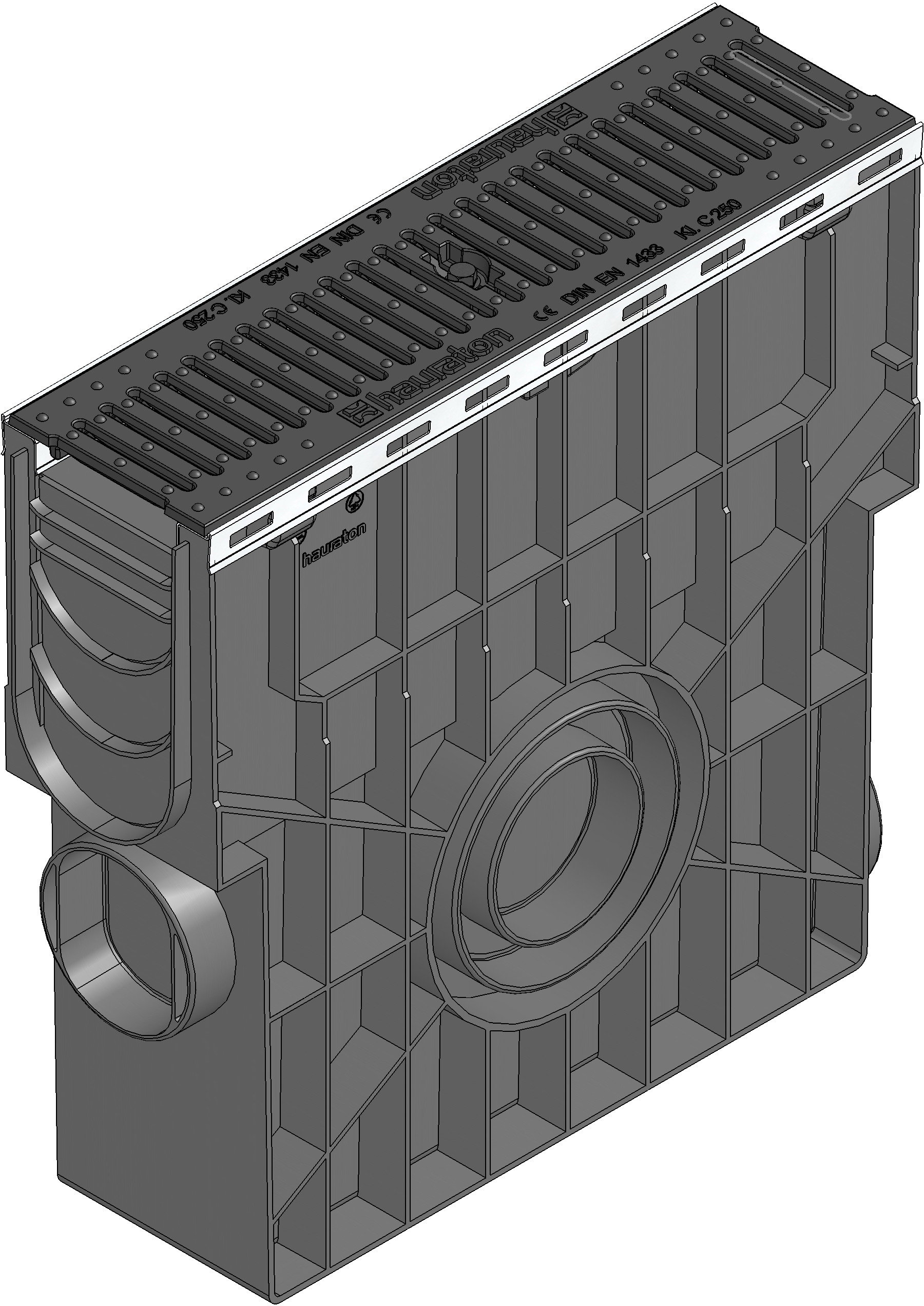

Product image
Technical drawing
Drawing (CAD)

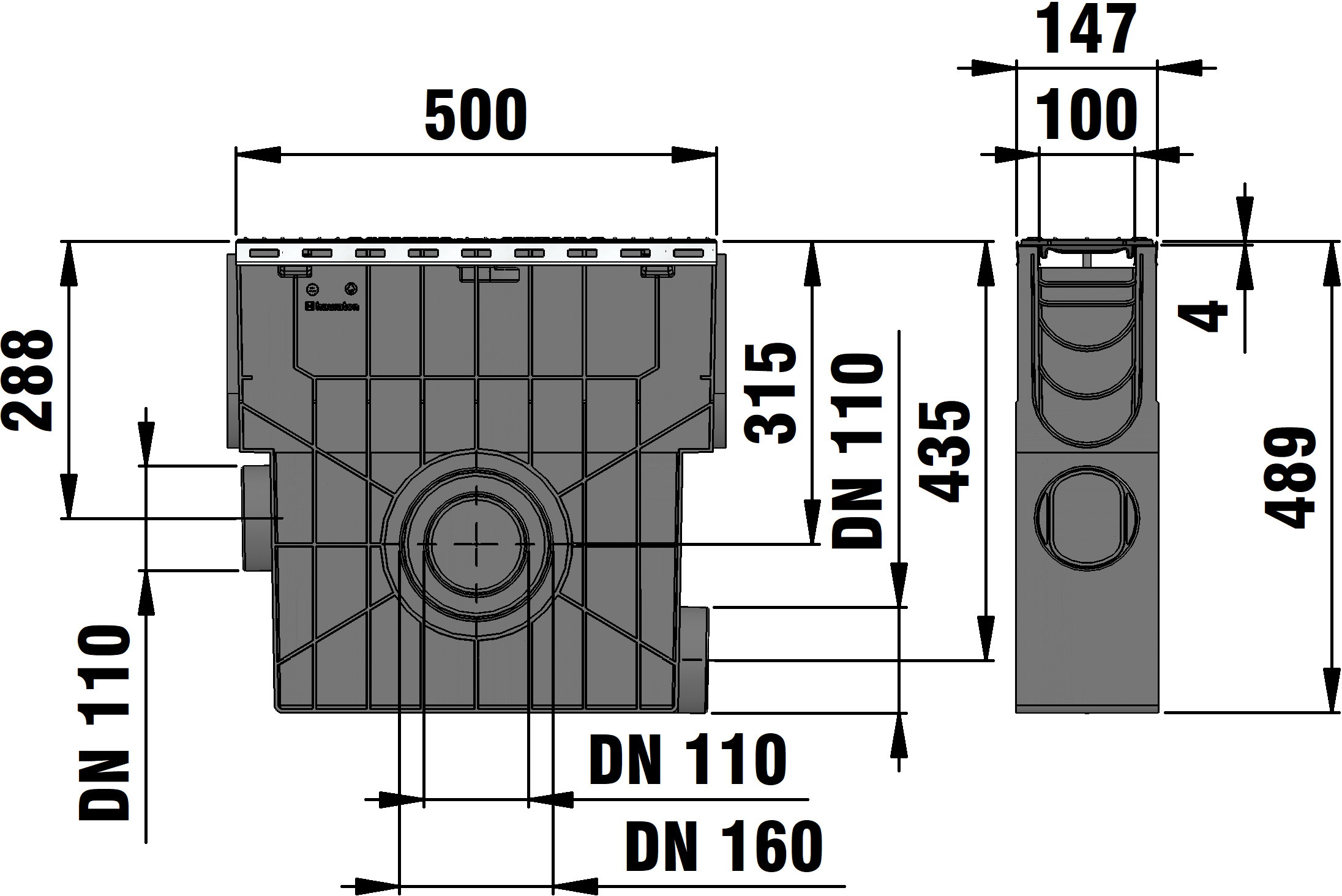

Drawing

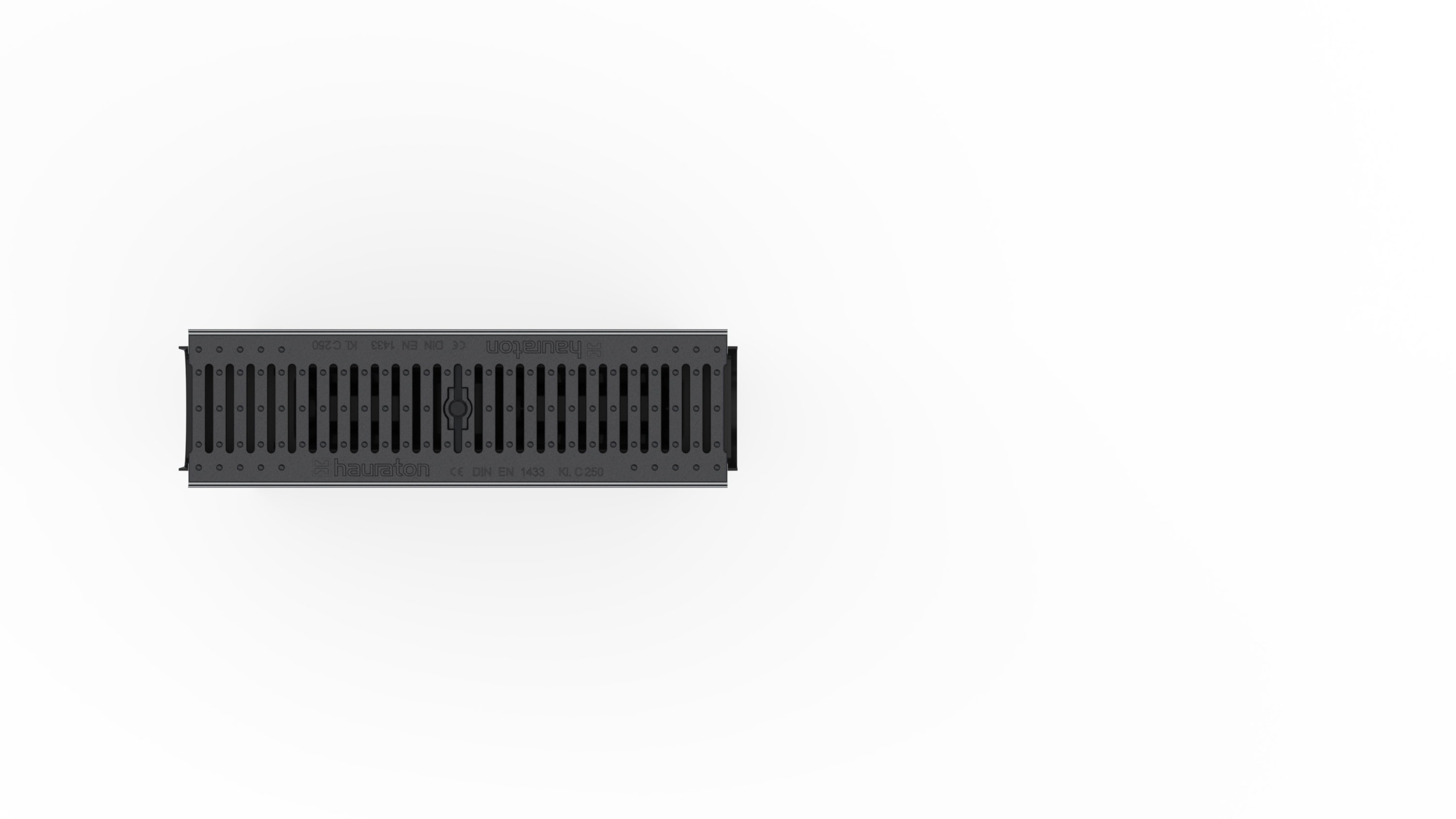

Top view
Technical information and metrics
Article No.
41457
Length
500 mm
Width
147 mm
Height
489 mm
Einlegetiefe
6 mm
Weight
7.70 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301, Steel black galvanised
Intake cross-section
254.0 cm²/m
Nominal size
100
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
Sump unit with edge frames made of stainless steel, with ductile iron cover SW 80/6 mm, black, cl. C 250, locked, with silt bucket made of recycled PP, RECYFIX PLUS 100, 0.5 m
Product description
RECYFIX PLUS 100 - Sump unit made of recycled polypropylene, with edge frames made of stainless steel CNS 1.4301, 4-sided connection possibility (on the front sides DN/OD 110, on the sides DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PLUS 100, with ductile iron cover SW 80/6 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x147x489 mm, item no. 41457
Packaging unit
28
