Article No. 26052
Trash boxes
for NW 100, with edge frames made of galvanised steel and silt bucket made of galvanised steel, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

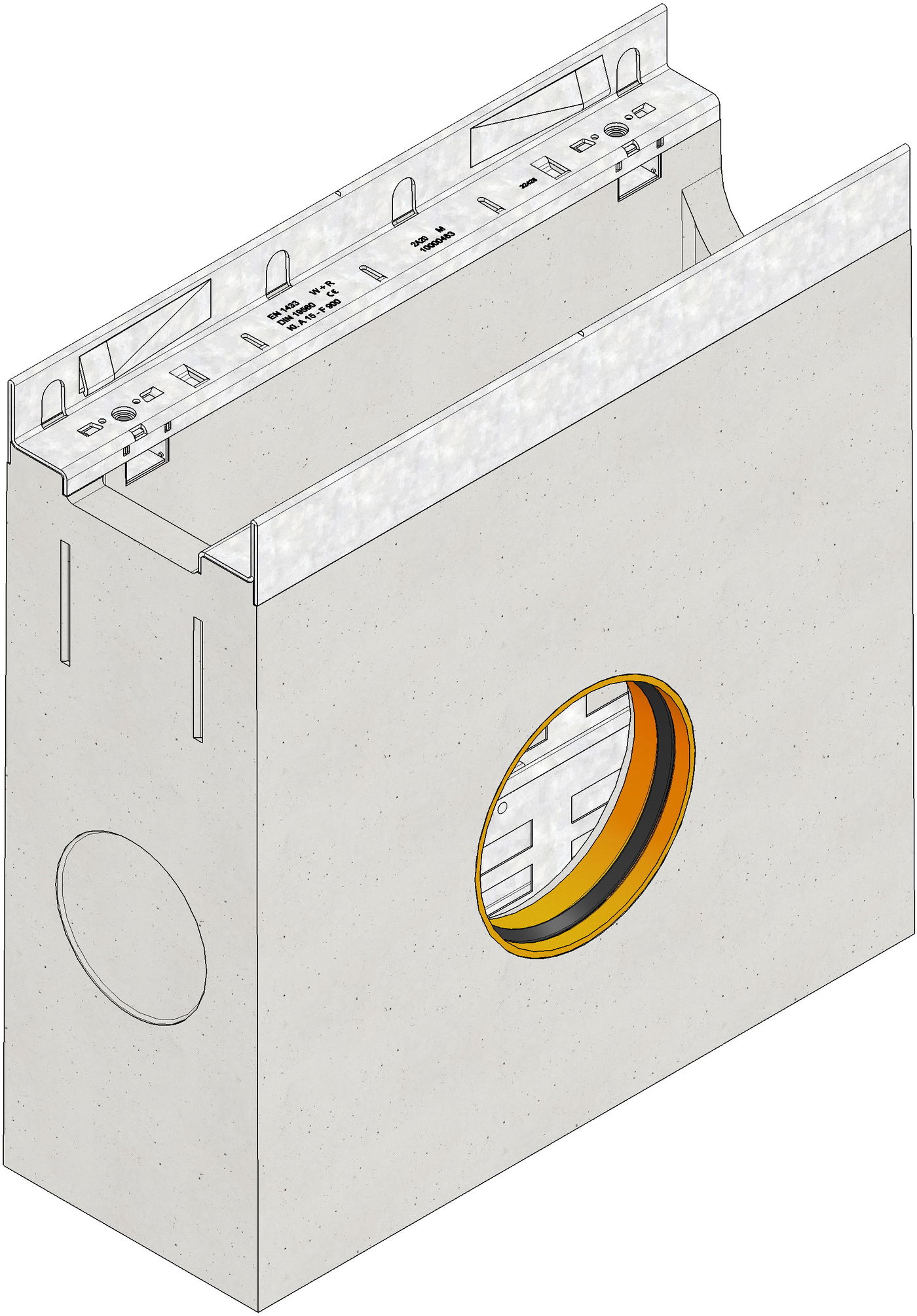

Product image

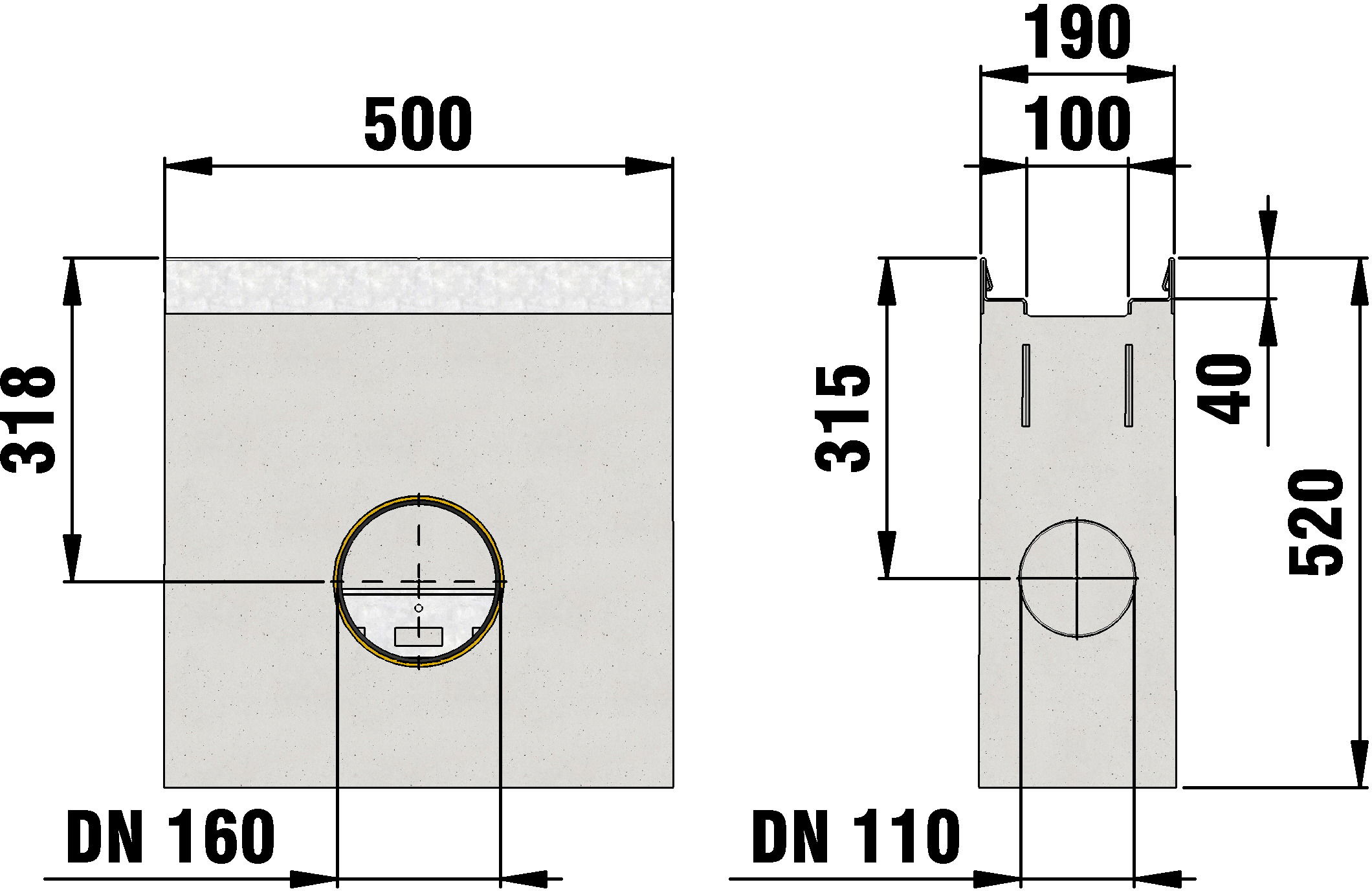

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
26052
Length
500 mm
Width
190 mm
Height
520 mm
Weight
59.00 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Nominal size
100
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of galvanised steel, with silt bucket made of galvanised steel, FASERFIX SUPER 100, 0.5 m
Product description
FASERFIX SUPER 100 - Sump unit made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frame made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the cover, 4-fold locking, 3-sided connection possibility (on the front side DN/OD 110, on the side with integrated PVC-U socket DN/OD 160, with removable silt bucket made of galvanised steel, suitable for both-sided connection of all channel types FASERFIX SUPER 100, LxWxH 500x190x520 mm, item no. 26052
Packaging unit
16
