Article No. 36003
Trash boxes
for NW 100, with removable silt bucket made of composite, with ductile iron cover 110/9 mm, in FIBRETEC design, KTL-coated, with 4-fold-bolting, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

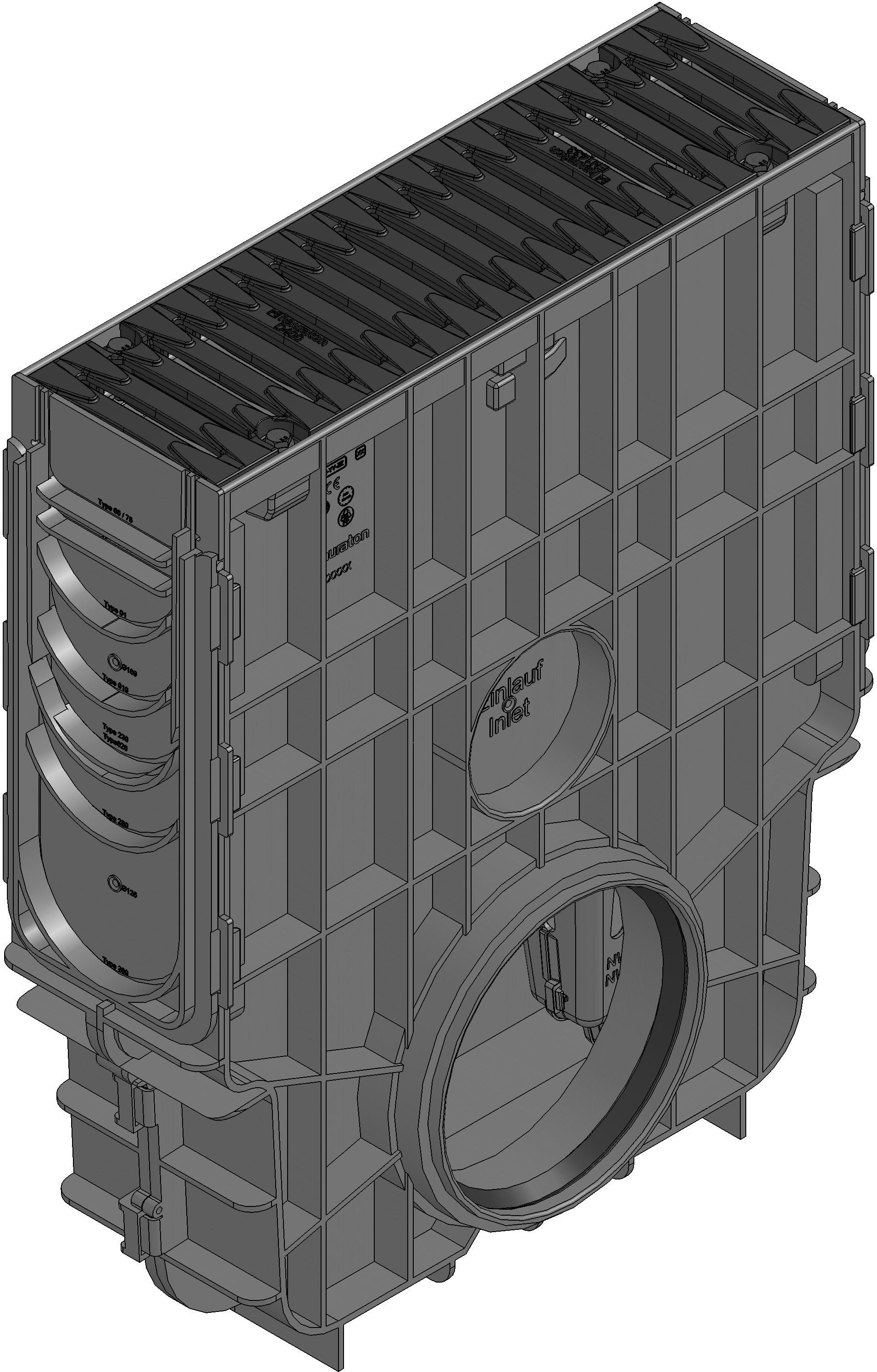

Product image

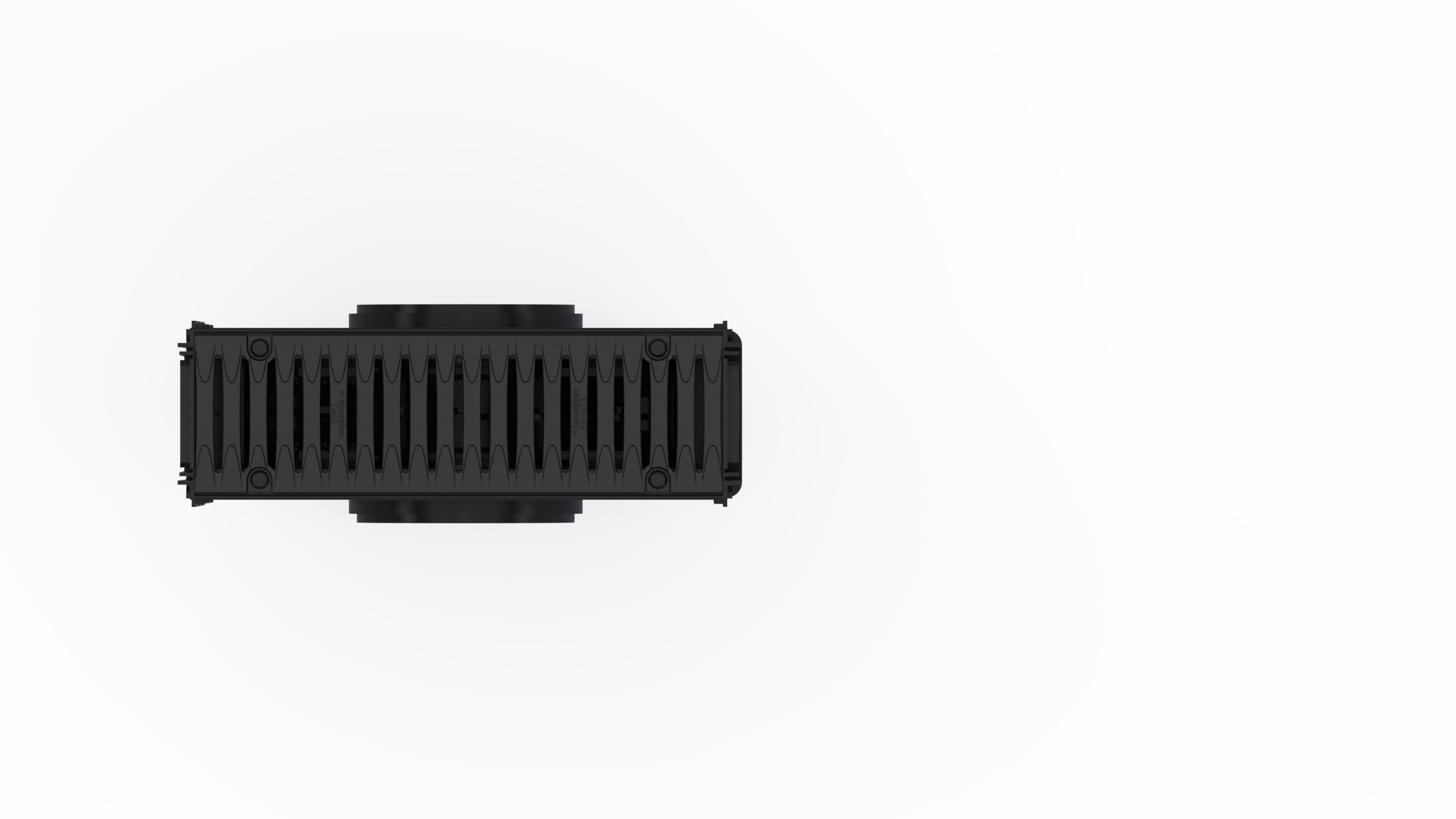

Top view

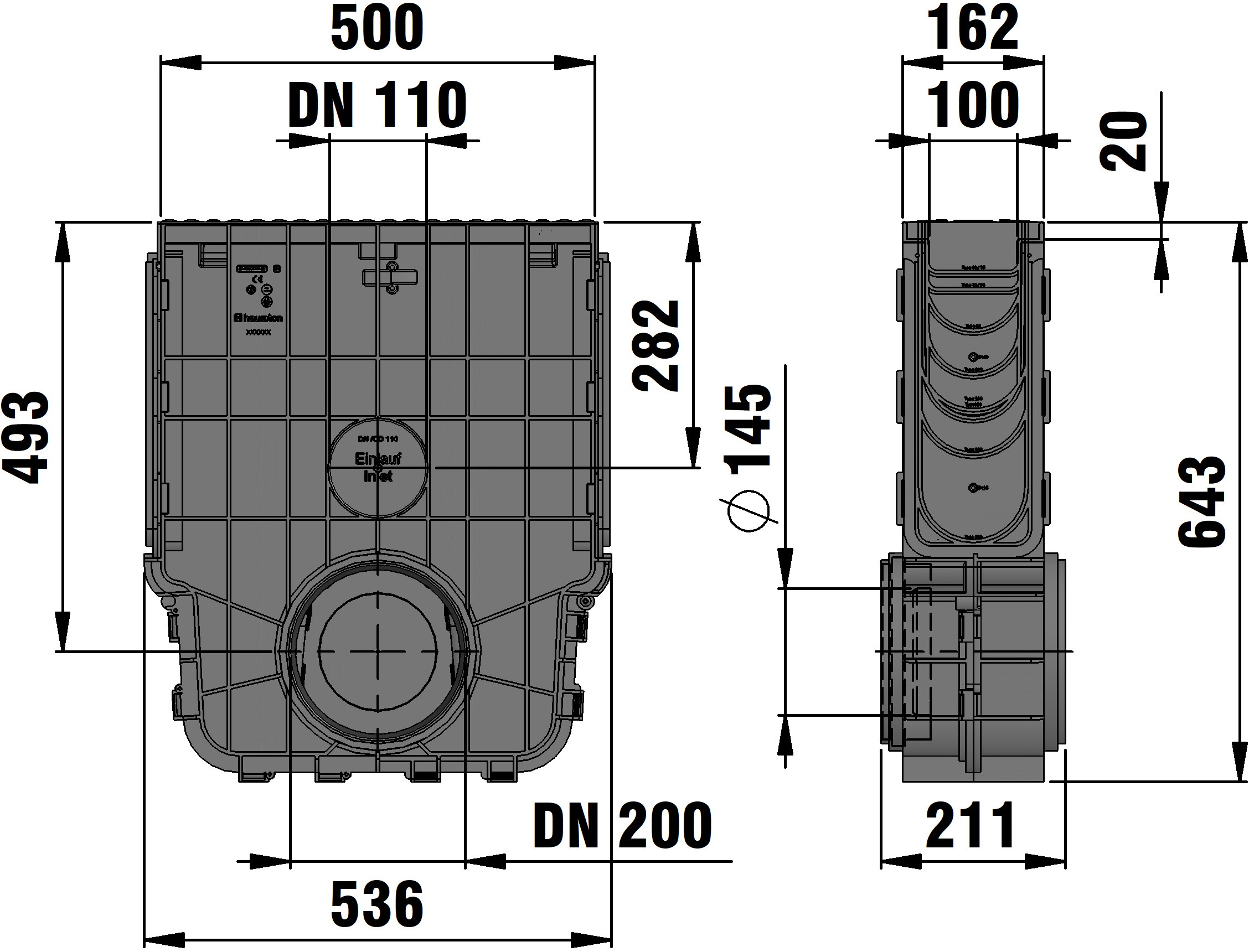

Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
36003
Length
510 mm
Width
162 mm
Height
643 mm
Einlegetiefe
20 mm
Weight
10.95 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
330.0 cm²/m
Nominal size
100
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with ductile iron cover SW 110/9 mm in FIBRETEC design, KTL-coated, Kl. D 400, locked, with silt bucket made of recycled PP, RECYFIX MONOTEC 100, 0.5 m
Product description
RECYFIX MONOTEC 100 - Sump unit made of recycled polypropylene, with integrated edge frames, lateral two-sided preformed pipe connection element DN/OD 200, with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX MONOTEC 100, with ductile iron cover 110/9 mm, in FIBRETEC design, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, load class A 15 - D 400 according to EN 1433 with 4-fold-bolting, LxWxH 500x162x643 mm, item no. 36003
Packaging unit
8
