Article No. 33511
Trash boxes
for NW 200 + 300, with galvanised steel frame, with ductile iron cover SW 3 x 140/20 mm, black, class F 900, 0.51 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

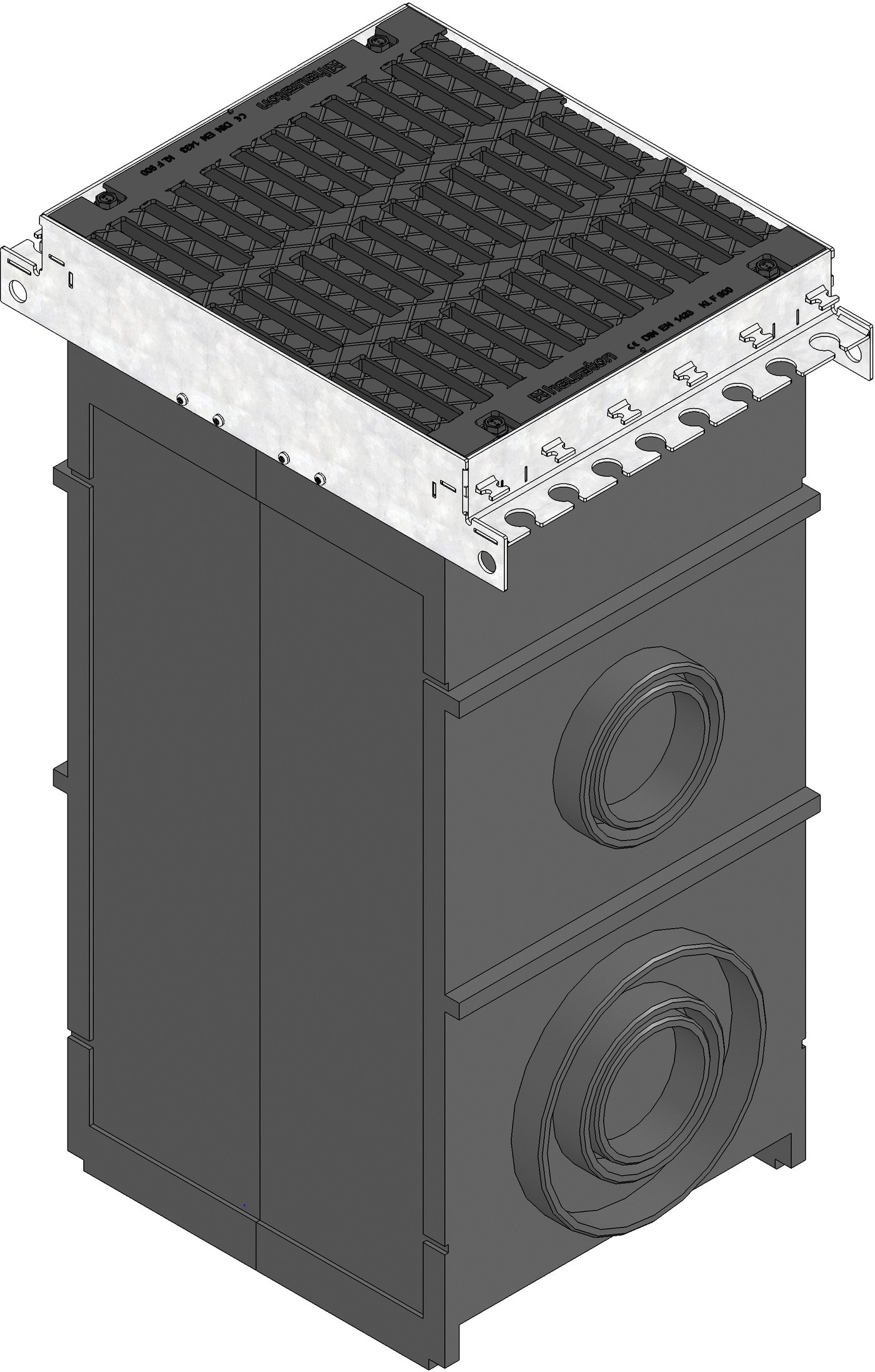

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
33511
Length
510 mm
Width
590 mm
Height
1116 mm
Weight
101.84 kg
Nominal size
200, 300
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with galvanised steel frame, with ductile iron cover 3x SW 140/20 mm, black, cl. F 900, RECYFIX MONOTEC ULTRA 200 + 300, 0,51 m
Product description
RECYFIX MONOTEC ULTRA 200 + 300 - Sump unit according to EN 1433, made of recycled polyolefin, CE compliant, with all-round edge frame made of galvanised steel, with ductile iron cover 3x SW 140/20 mm, made of spheroidal ductile iron EN-GJS-500-7, black, load class A 15 - F 900, 4-fold-bolting, 2-sided connection possibility (DN/OD 160/200/315 on the sides) for connection of RECYFIX MONOTEC ULTRA 200 + 300 channels, LxWxH 510x590x1116 mm, item no. 33511
Packaging unit
-
Declaration of Performance
