Article No. 23454
Trash boxes
for NW 200, 2-part, with edge frames made of KTL-coated ductile iron and silt bucket made of galvanised steel, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

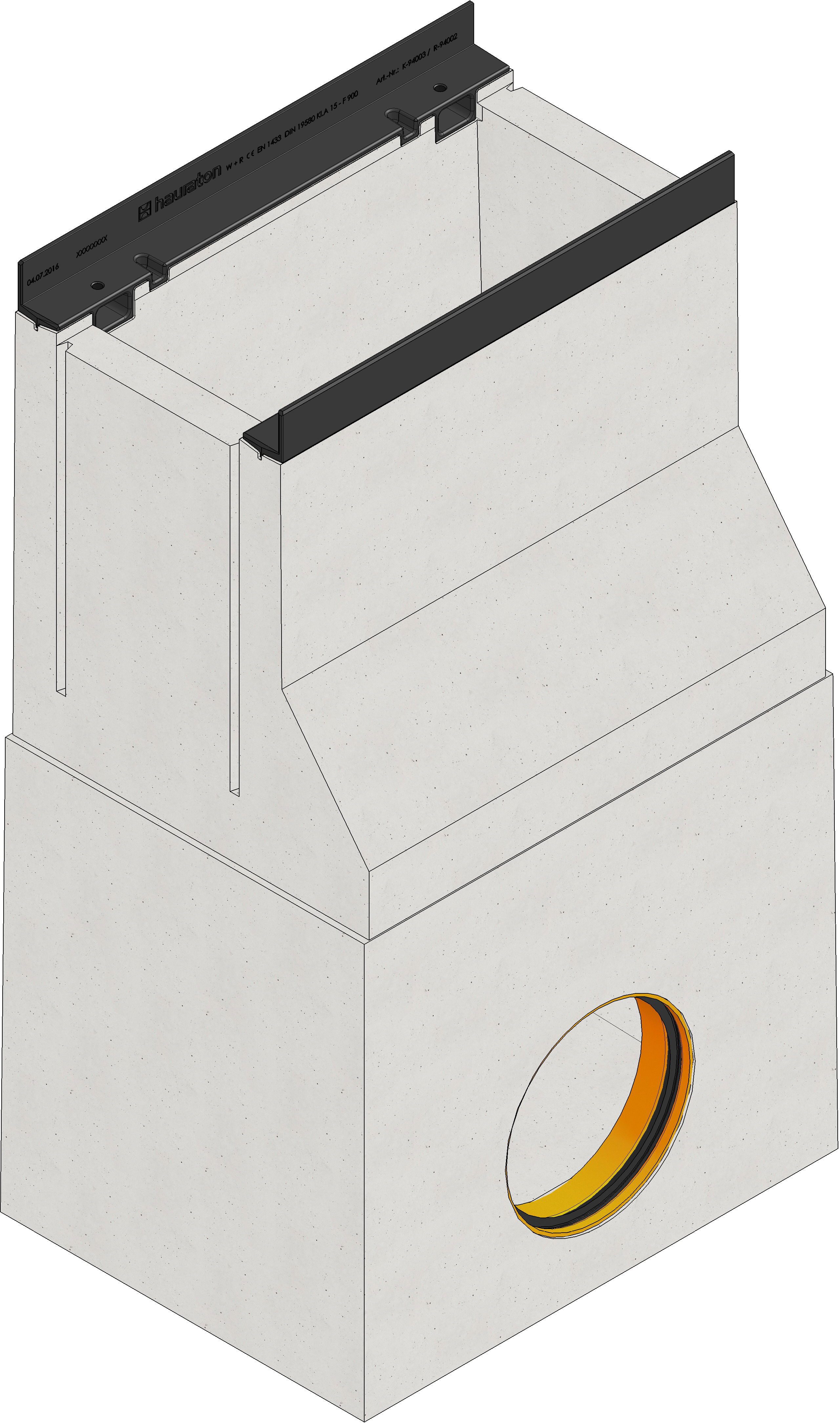

Product image

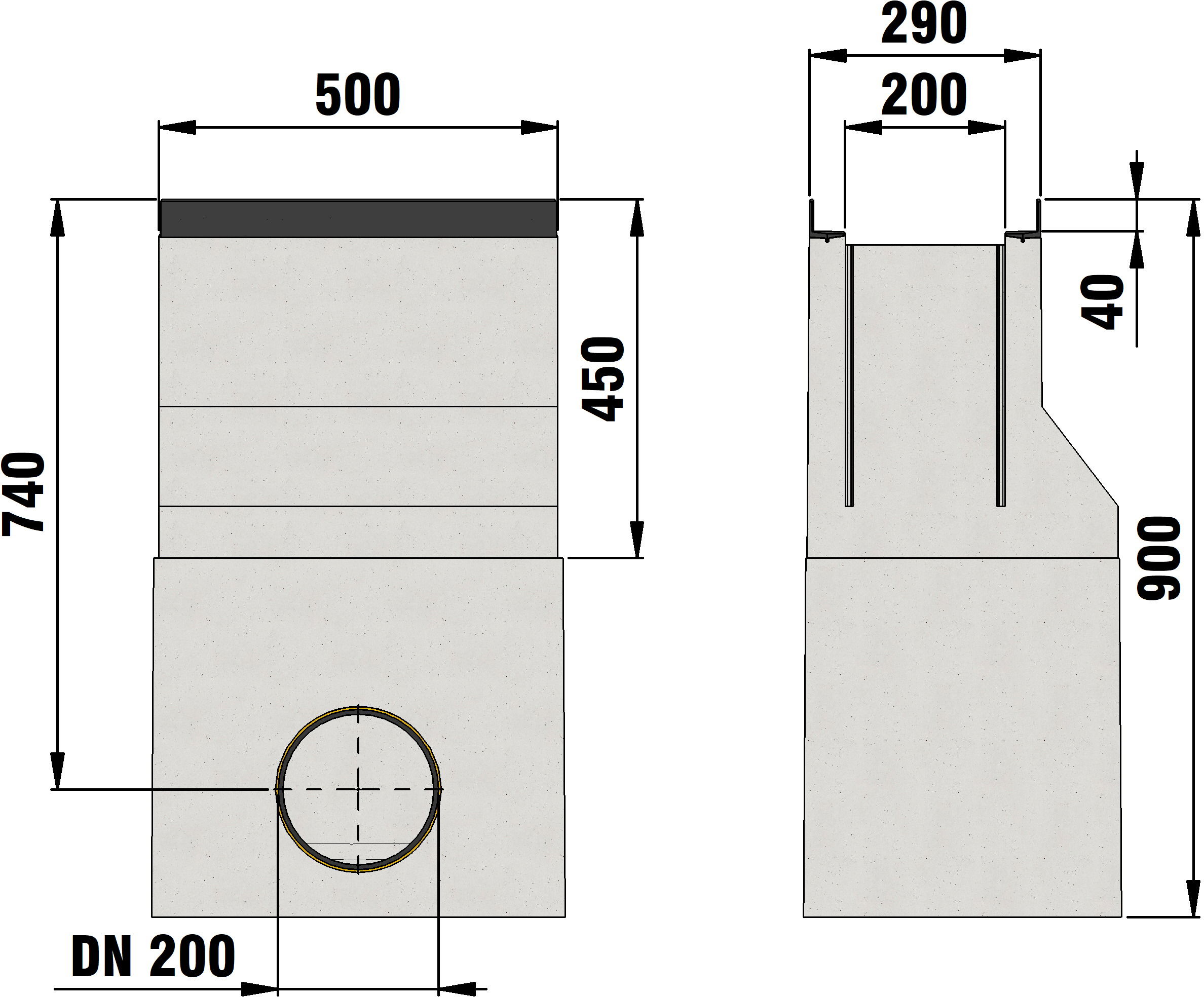

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
23454
Length
500 mm
Width
290 mm
Height
900 mm
Weight
191.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Nominal size
200
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with edge frames made of KTL-coated ductile iron, with silt bucket made of galvanised steel, FASERFIX SUPER 200, 0.5 m
Product description
FASERFIX SUPER 200 - Sump unit, 2-part, made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frame made of KTL-coated ductile iron, one-sided connection possibility (on the side) with integrated PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, suitable for both-sided connection of all channel types FASERFIX SUPER 200, 4-fold-bolting per 0.5 m piece, LxWxH 500x290x900 mm, item no. 23454
Packaging unit
4
