Article No. 40061
Trash boxes
for NW 200, with silt bucket made of recycled PP, with longitudinal cover Filigree, bar distance 8 mm, stainless steel, cl. A 15, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

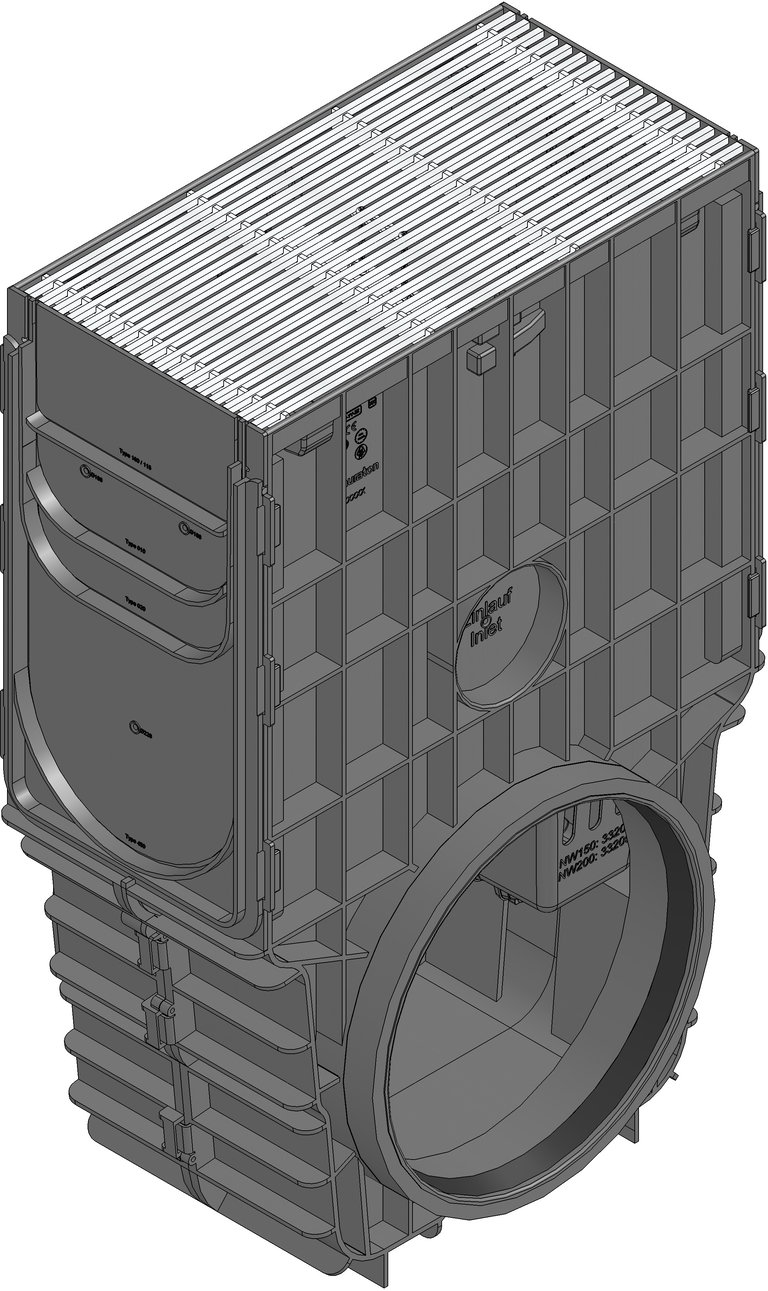

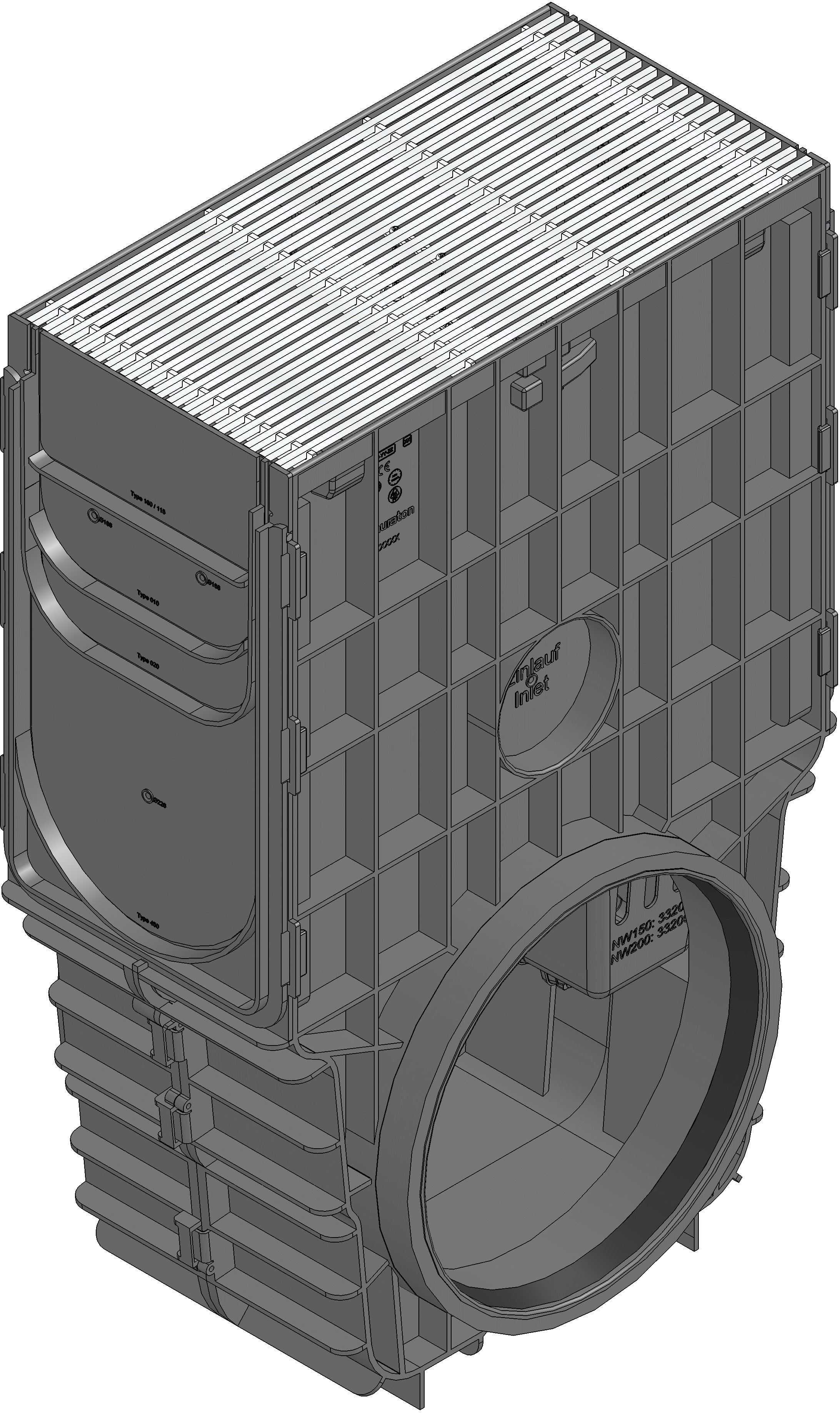

Product image
Technical drawing
Drawing (CAD)

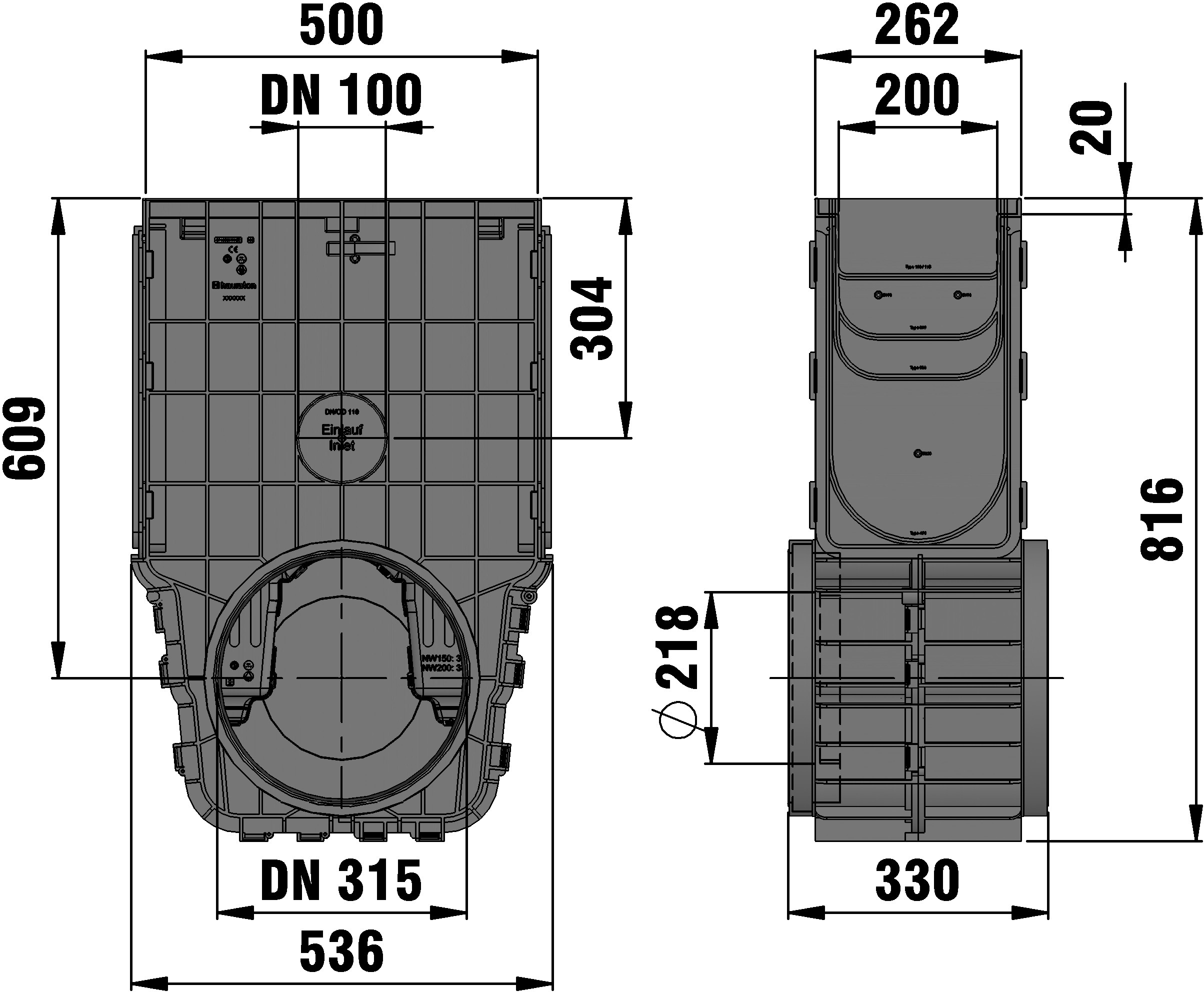

Drawing

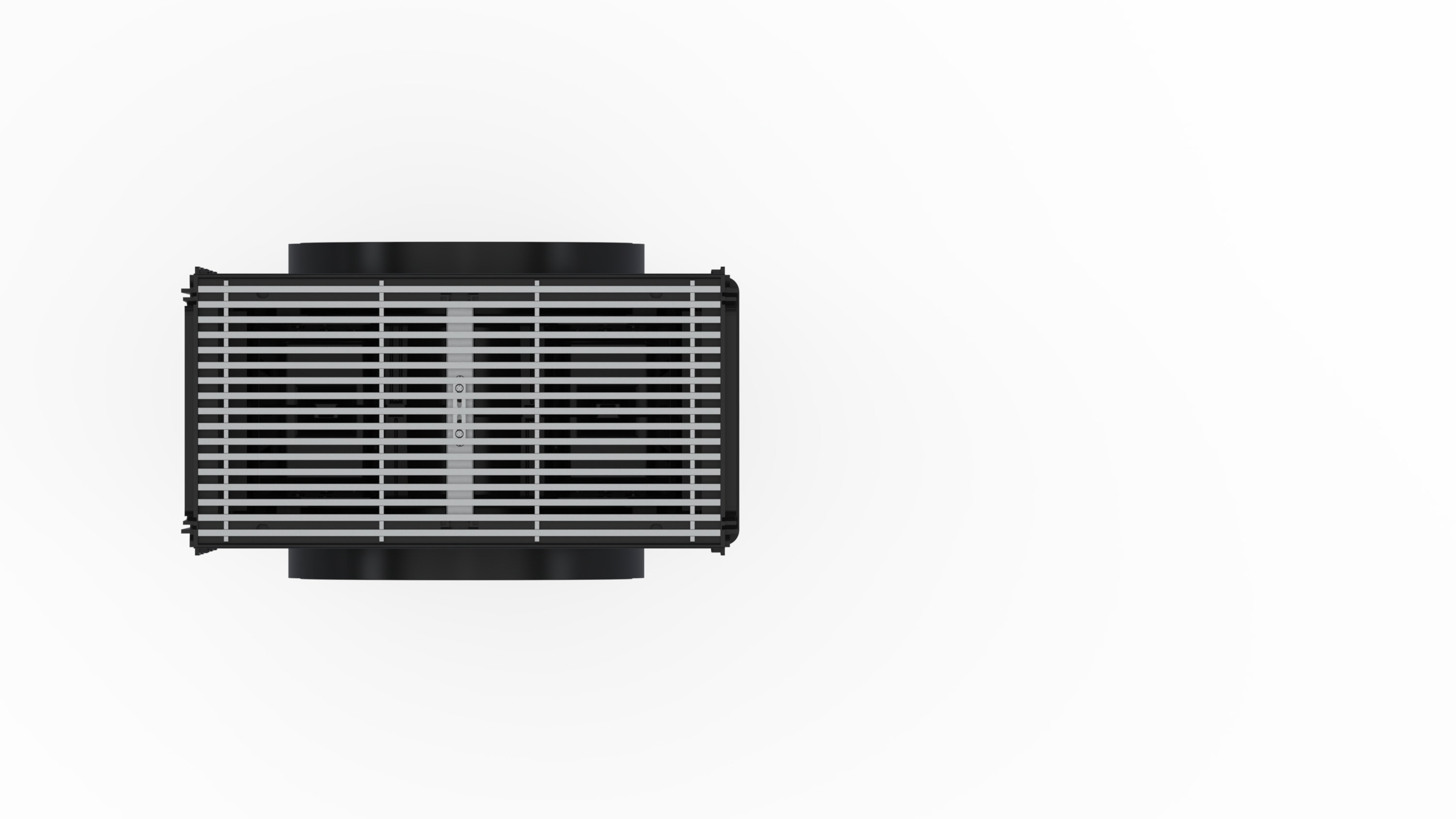

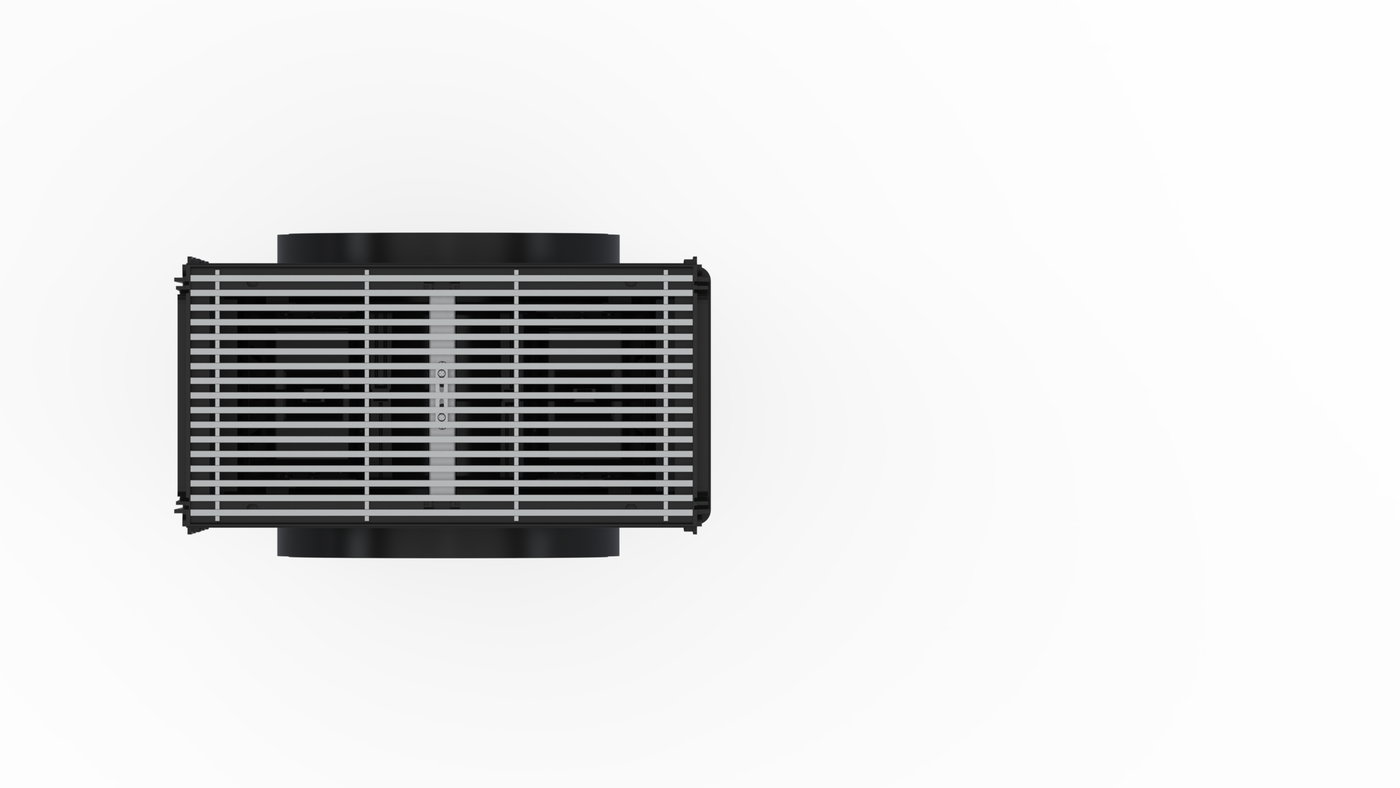

Top view
Technical information and metrics
Article No.
40061
Length
500 mm
Width
262 mm
Height
816 mm
Einlegetiefe
20 mm
Weight
11.74 kg
Material
recycled, modified Polypropylene, Stainless steel (V2A), Stainless steel 1.4301
Intake cross-section
1406.0 cm²/m
Nominal size
200
Material cover
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with 2 end caps made of recycled PP, with longitudinal cover Filigree, bar distance 8 mm, stainless steel, cl. A 15, locked, with silt bucket made of recycled PP, RECYFIX PRO 200, 0.5 m
Product description
RECYFIX PRO 200 - Sump unit made of recycled polypropylene, with integrated edge frames, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 200, with longitudinal cover Filigree, bar distance 8 mm, stainless steel CNS 1.4301, with locking, load class A 15 according to EN 1433, LxWxH 500x262x816 mm, item no. 40061
Packaging unit
4
