Article No. 24430
Trash boxes
for NW 500, for Type 01, 2-part, with edge frames made of KTL-coated ductile iron and silt bucket made of galvanised steel, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

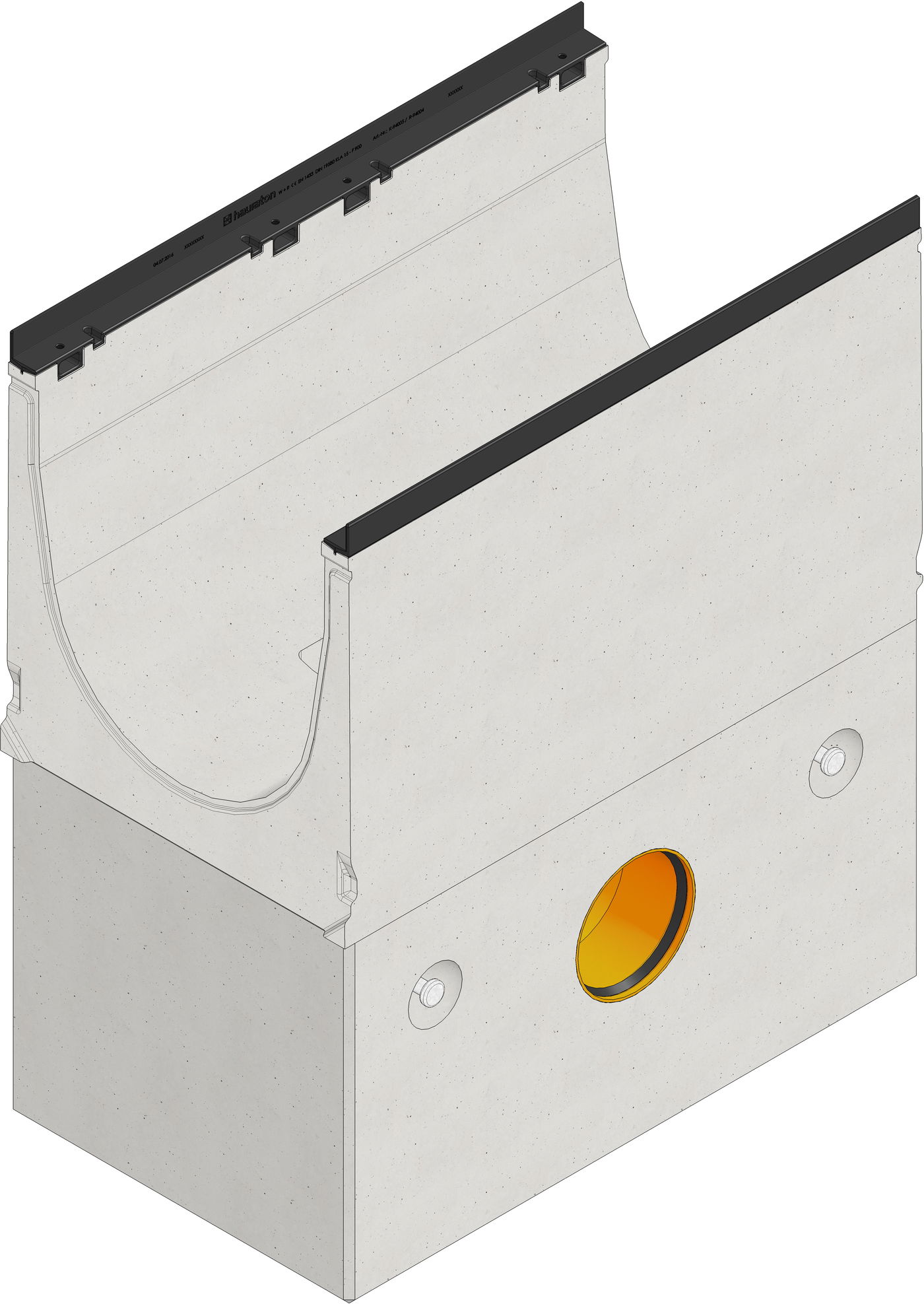

Product image

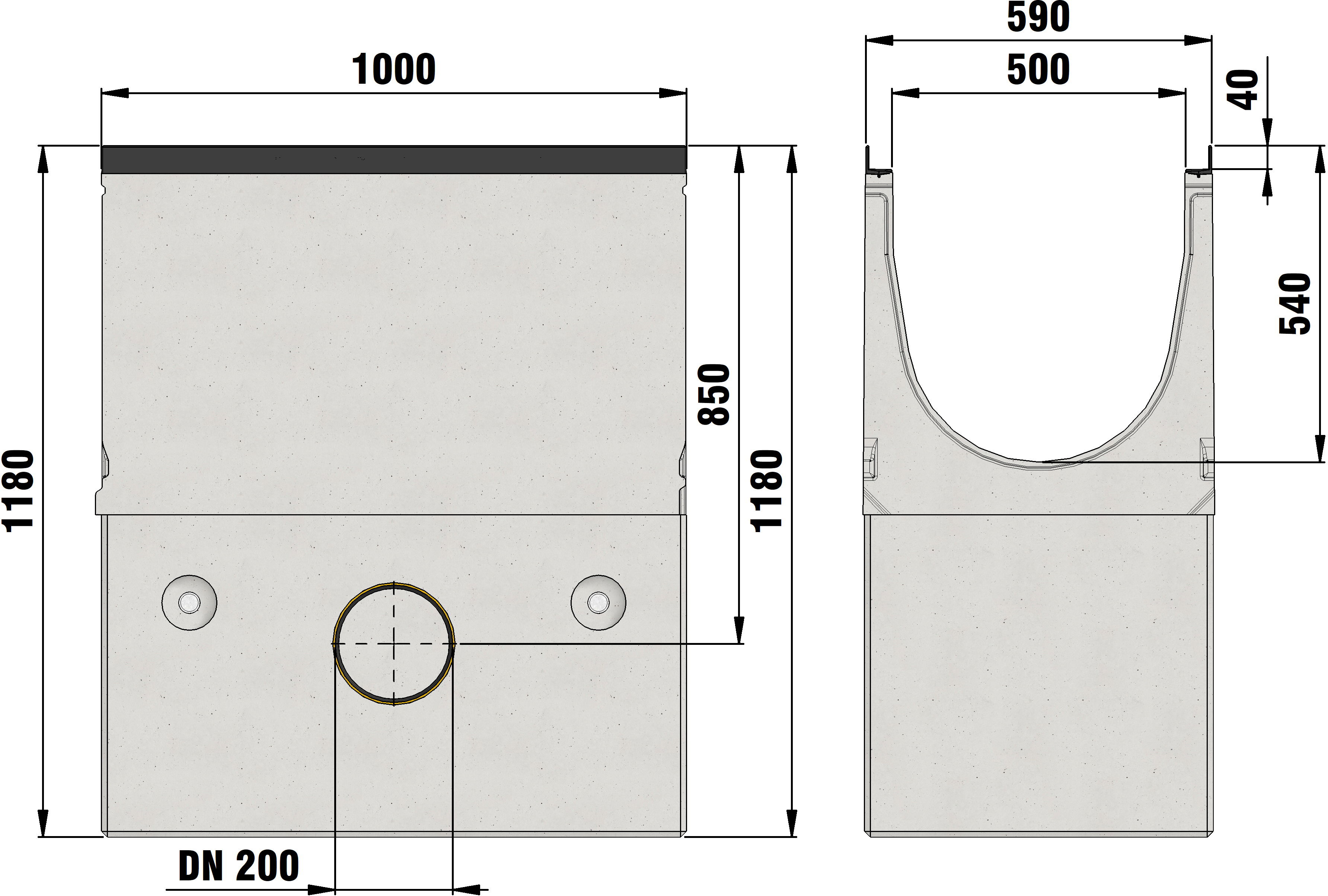

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
24430
Length
1000 mm
Width
590 mm
Height
1180 mm
Weight
1031.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Nominal size
500
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with edge frames made of KTL-coated ductile iron, with silt bucket made of galvanised steel, FASERFIX SUPER 500 type 01, 1 m
Product description
FASERFIX SUPER 500 type 01 - Sump unit, 2-part,made of fibre-reinforced concrete, load class A 15 - F 900 according to DIN 19580/EN 1433, CE compliant, with edge frame made of KTL-coated ductile iron, 8-fold locking, one-sided connection possibility (on the side) with integrated PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, suitable for both-sided connection of FASERFIX SUPER 500 type 01, LxWxH 1000x590x1180 mm, item no. 24430
Packaging unit
1
