Article No. 7830
Trash boxes
for NW 100, with edge frames made of KTL-coated steel and silt bucket made of recycled PP, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

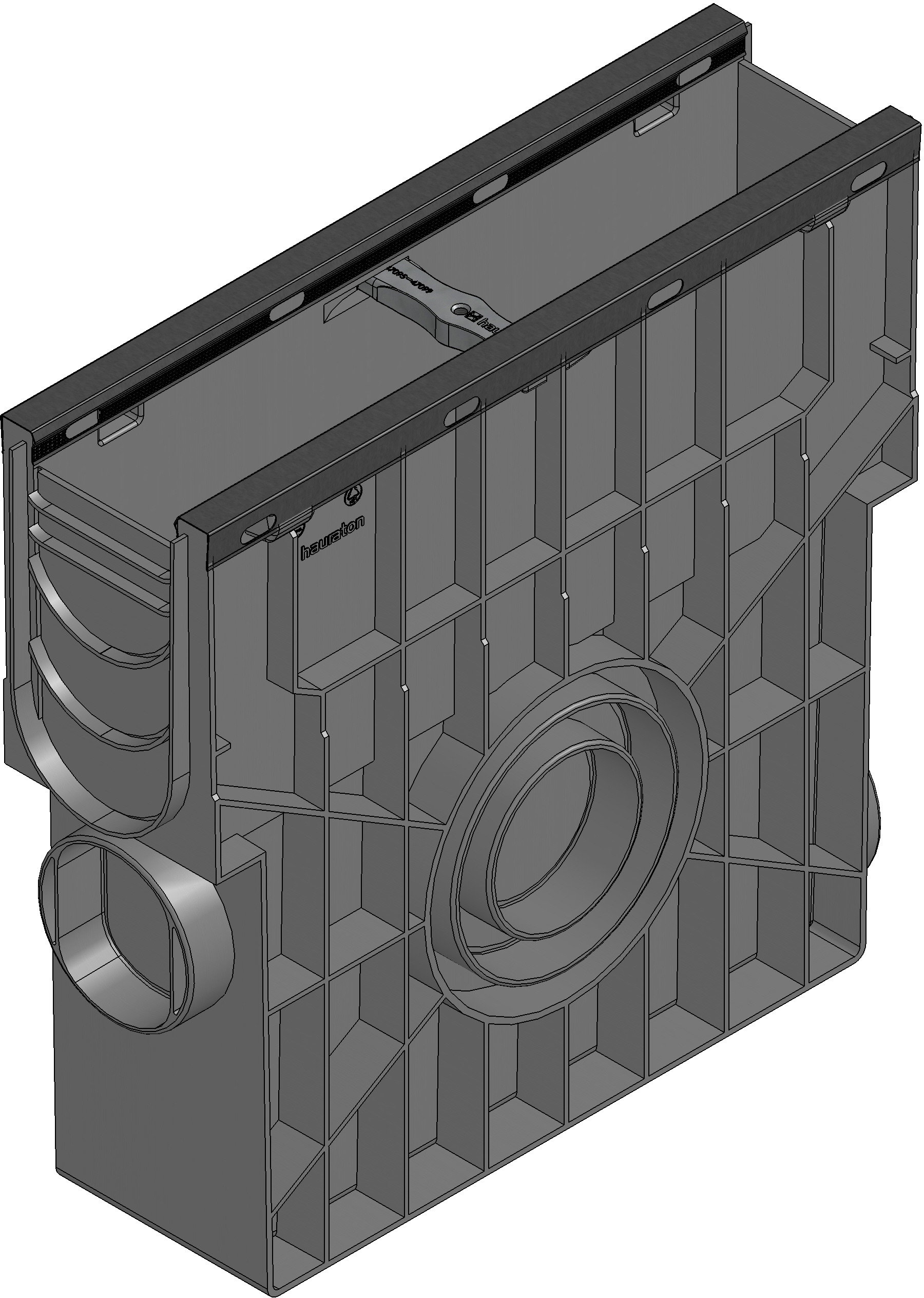

Product image
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
7830
Length
500 mm
Width
146 mm
Height
485 mm
Weight
4.36 kg
Material
KTL coated steel, recycled, modified Polypropylene
Nominal size
100
Sales text
Sump unit with edge frames made of KTL-coated steel, with silt bucket made of recycled PP, SPORTFIX 100, 0.5 m
Product description
SPORTFIX Sump unit, made of recycled polypropylene, with integrated edge frames, KTL-coated, for easy installation of running track surface, 4-sided preformed pipe connection element (on the front side DN/OD 110, on the sides DN/OD 110/160), with removable silt bucket made of recycled polypropylene, LxWxH 500x146x485 mm, item no. 7830
Packaging unit
28
Volume
0.0 l
