Article No. 88115
AQUAFIX SKBPPP Coalescence separator with sludge trap and bypass
SKCBpPP 20/2000
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

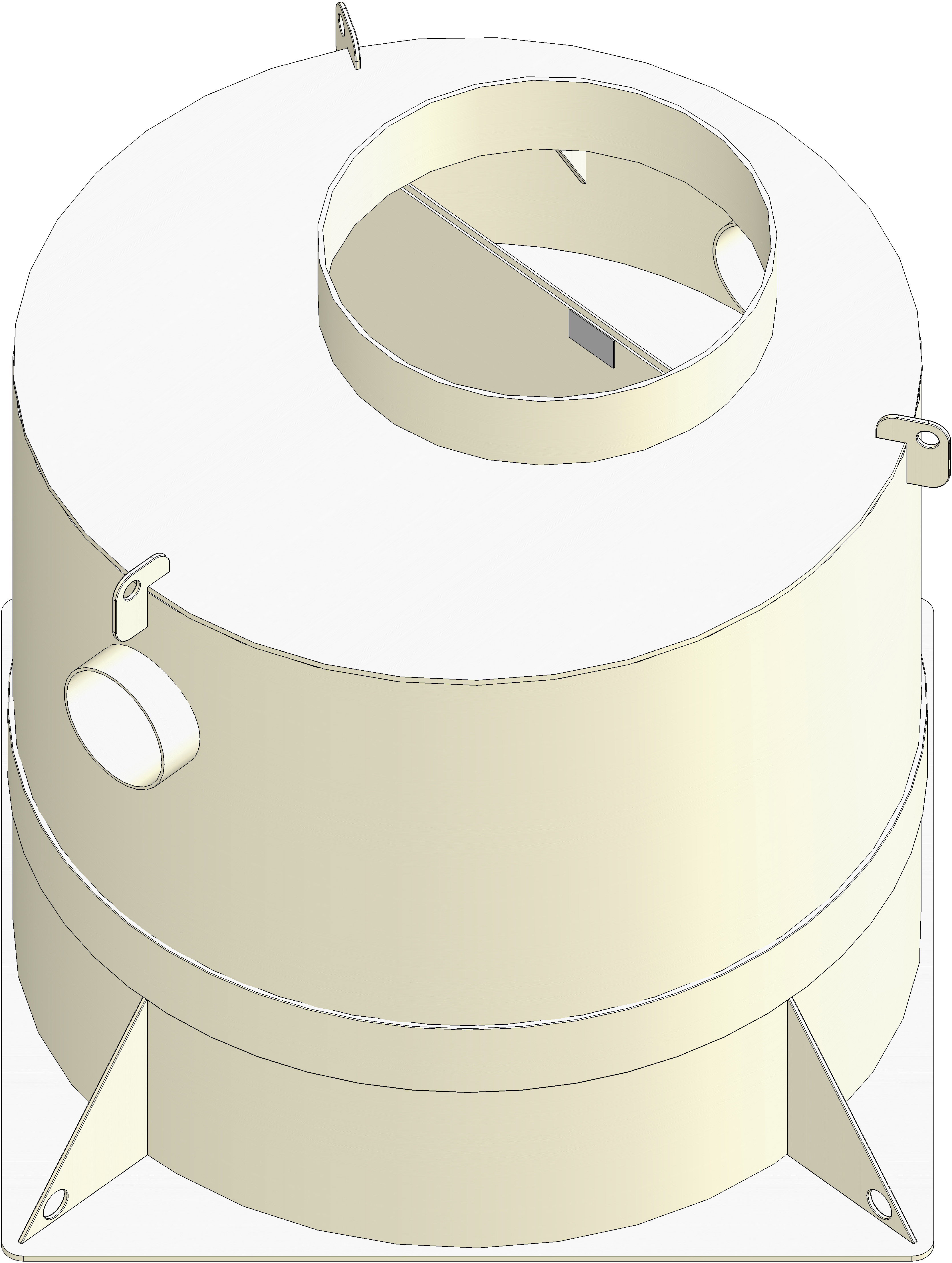

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing

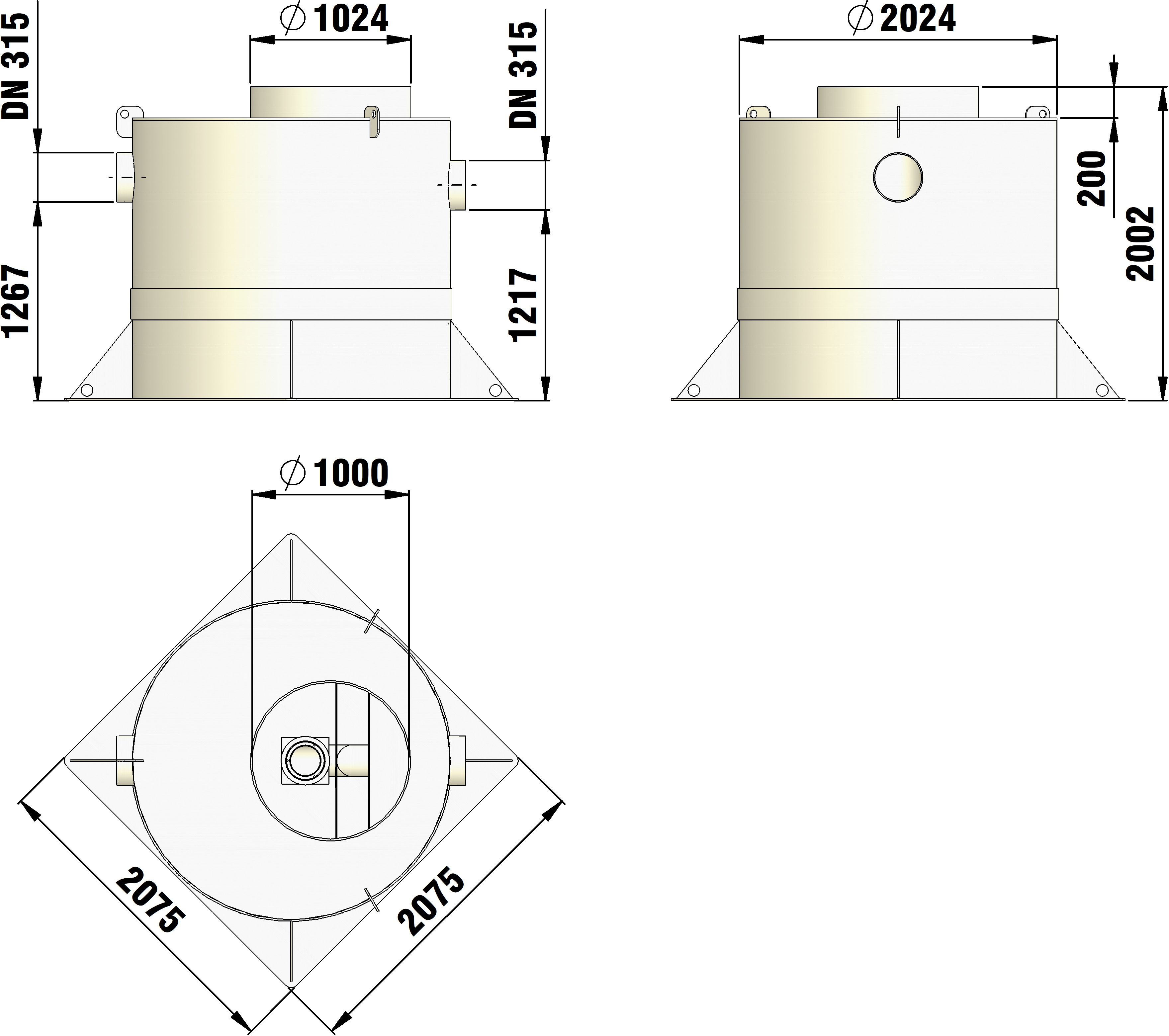

Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
88115
Length
2075 mm
Width
2075 mm
External diameter
2024 mm
Height
2002 mm
Weight
-
Material
AQUAFIX Coalescence material, Polypropylene
Nominal size
20.00 l/s
Bypass
single bypass
Durchflussleistung
100.0 l/s
Sludge trap capacity
2000 l
Separator capacity
1265 l
DN in-/outlet
315 mm
HE H inlet
1267 mm
HA height outlet
1217 mm
DNE Manhole 1
1000 mm
Regulations
EN 858 conditionally
Sales text
AQUAFIX Compact Sludge Trap Coalescence Separator - Compact unit with Bypass SKCBpPP 20/2000 made of PP
Product description
AQUAFIX Compact Sludge Trap Coalescence Separator - Compact unit with Bypass SKCBpPP 20/2000 made of PP
Packaging unit
-
