Article No. 88081
AQUAFIX SKPP Coalescence separator with sludge trap, with limit < 5 mg/l
SKPP 06/0600
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

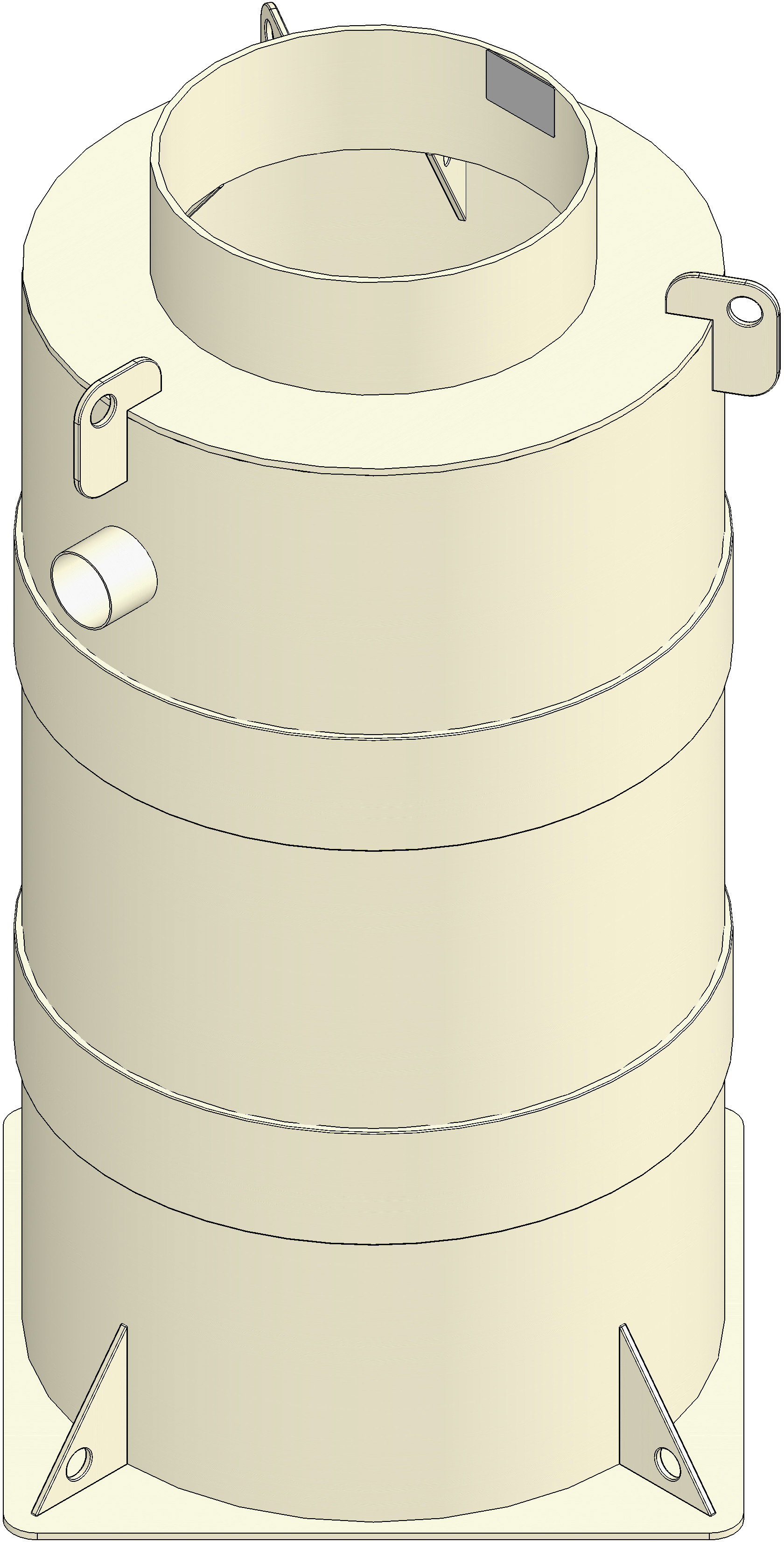

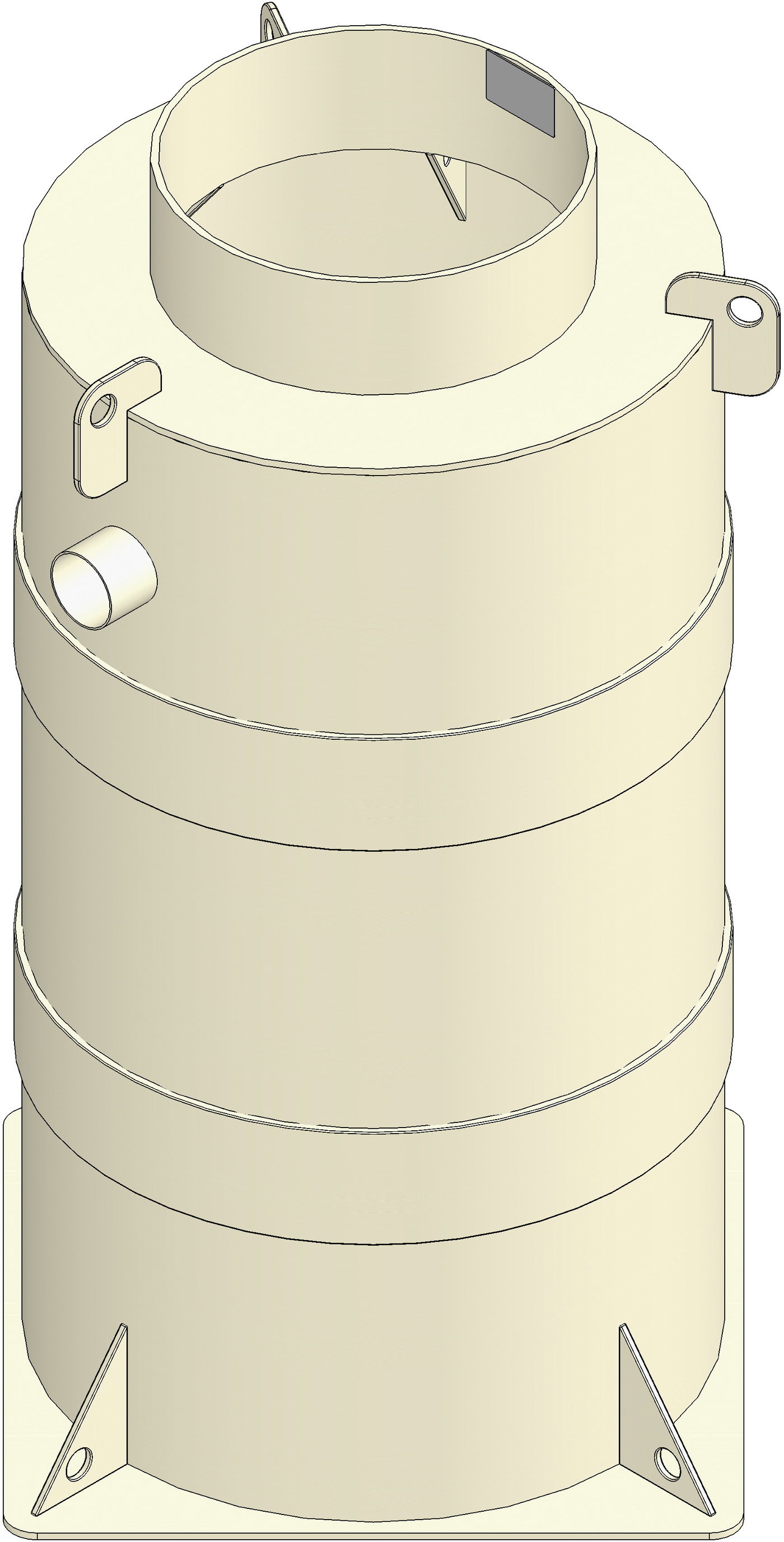

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing

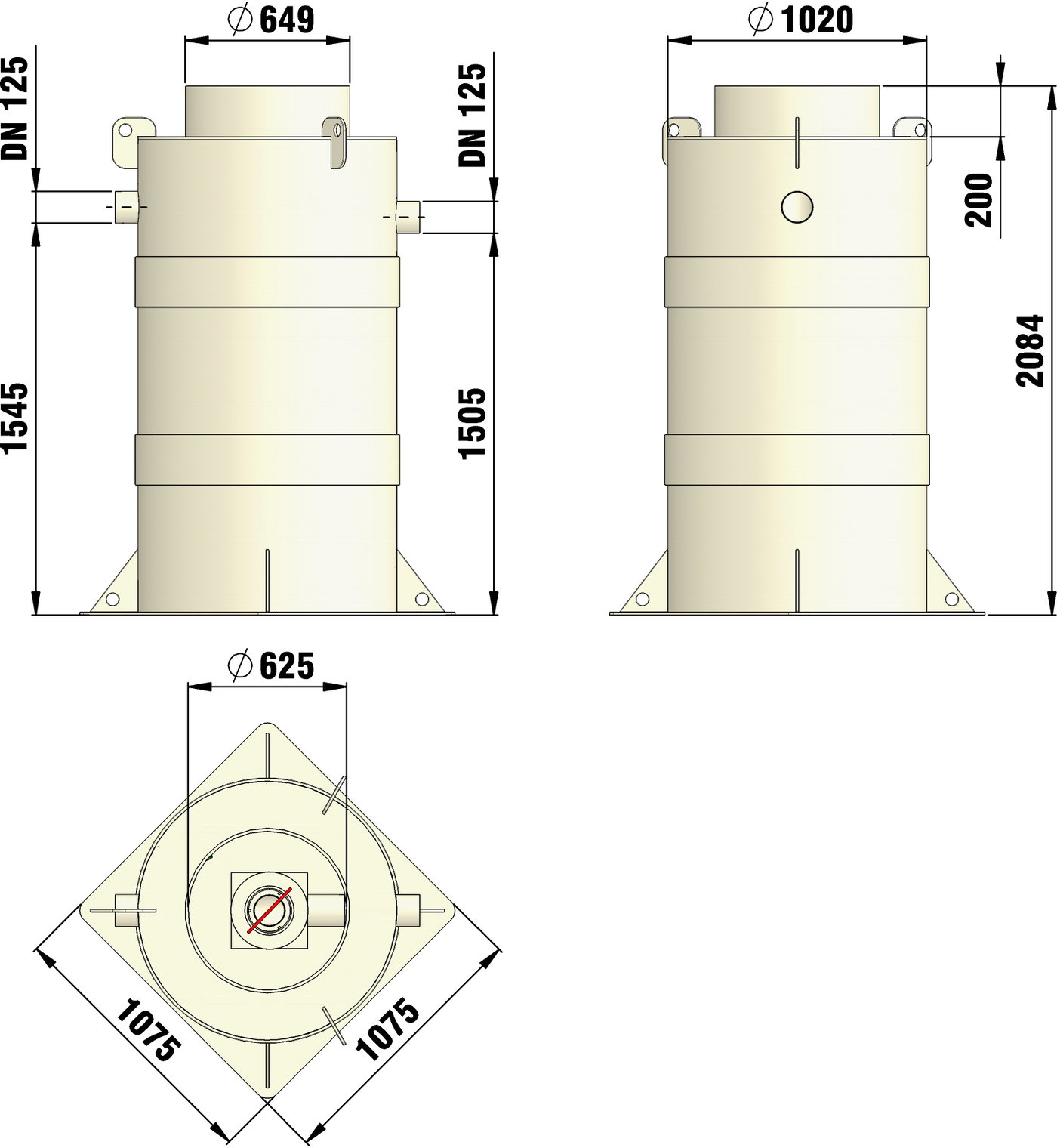

Technical drawing
Drawing (CAD)

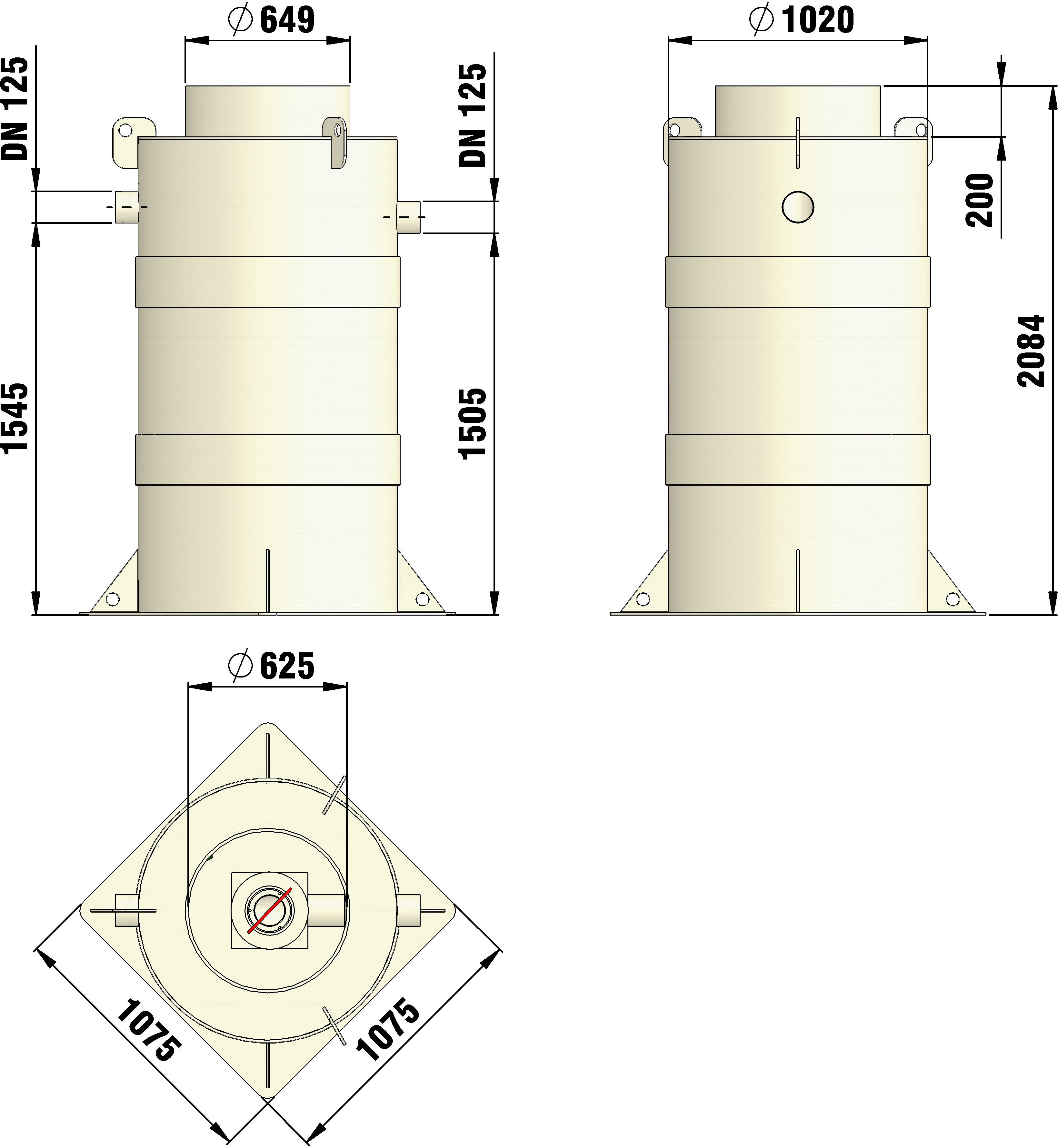

Drawing
Technical information and metrics
Article No.
88081
Length
1075 mm
Width
1075 mm
External diameter
1020 mm
Height
2084 mm
Weight
-
Material
AQUAFIX Coalescence material, Polypropylene
Nominal size
6.00 l/s
Bypass
without bypass
Durchflussleistung
6.0 l/s
Sludge trap capacity
600 l
Separator capacity
567 l
DN in-/outlet
125 mm
HE H inlet
1545 mm
HA height outlet
1505 mm
DNE Manhole 1
625 mm
Regulations
DIN 1999
Sales text
AQUAFIX SKPP 06/0600 Sludge Trap Coalescence Separator-Compact unit made of PP
Product description
AQUAFIX SKPP 06/0600 Sludge Trap-Coalescence Separator Compact unit made of PP item no. 88081
Packaging unit
-
