Article No. 65479
Cover 40 x 40, Class A 15
Longitudinal cover, bar distance 12 mm, stainless steel
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

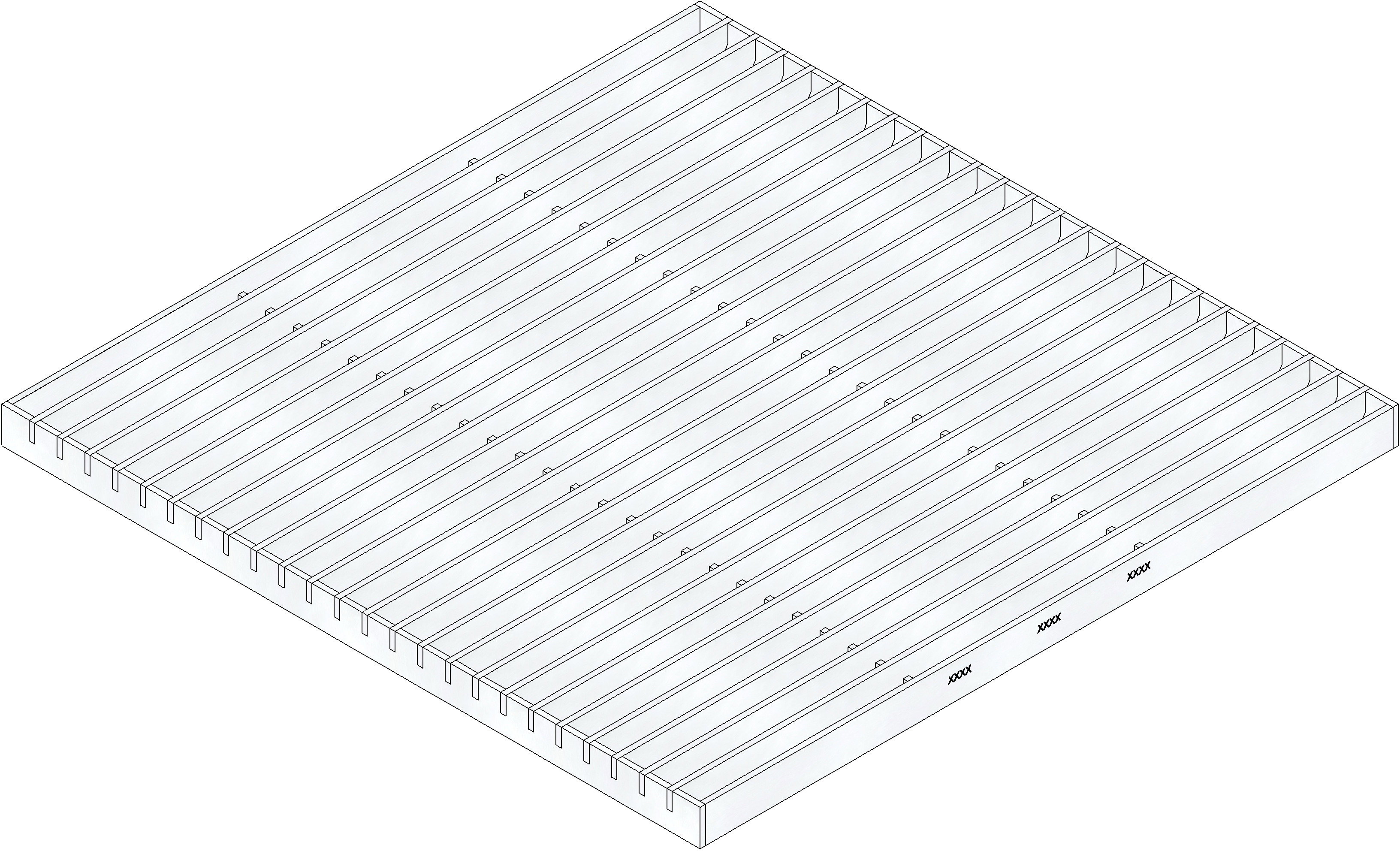

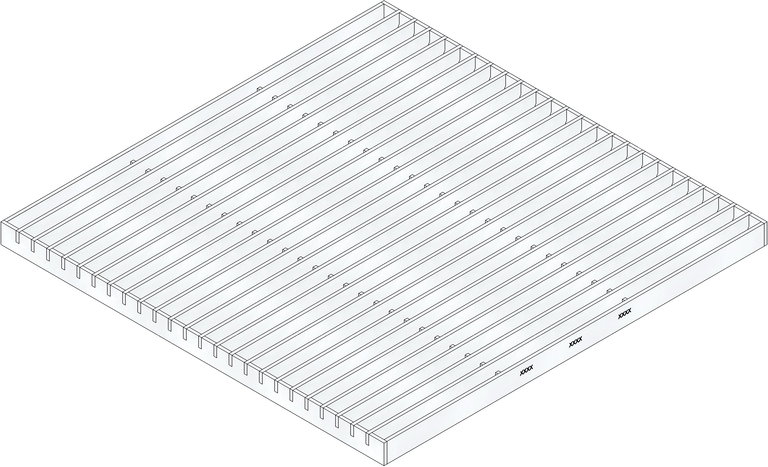

Product image

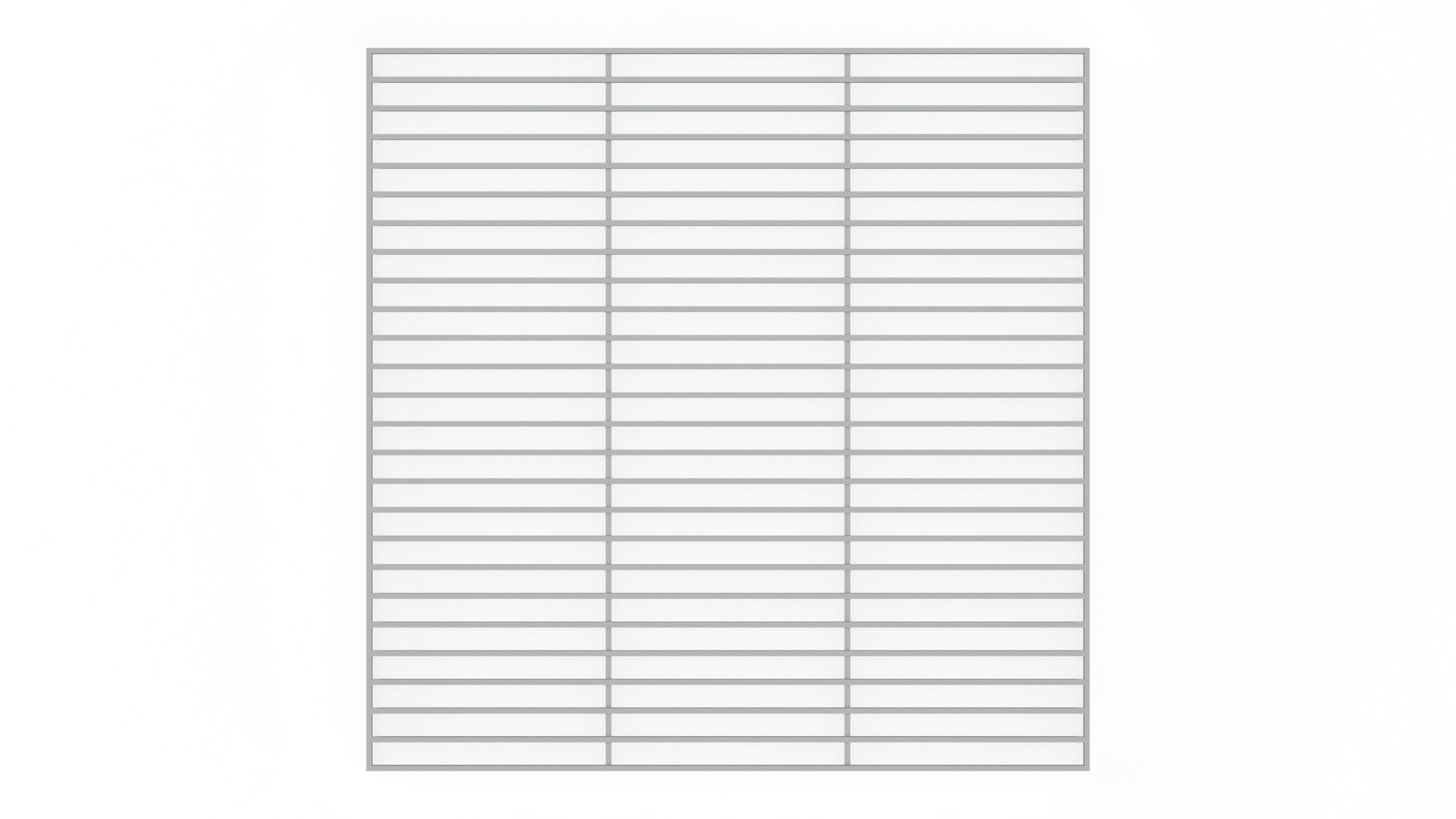

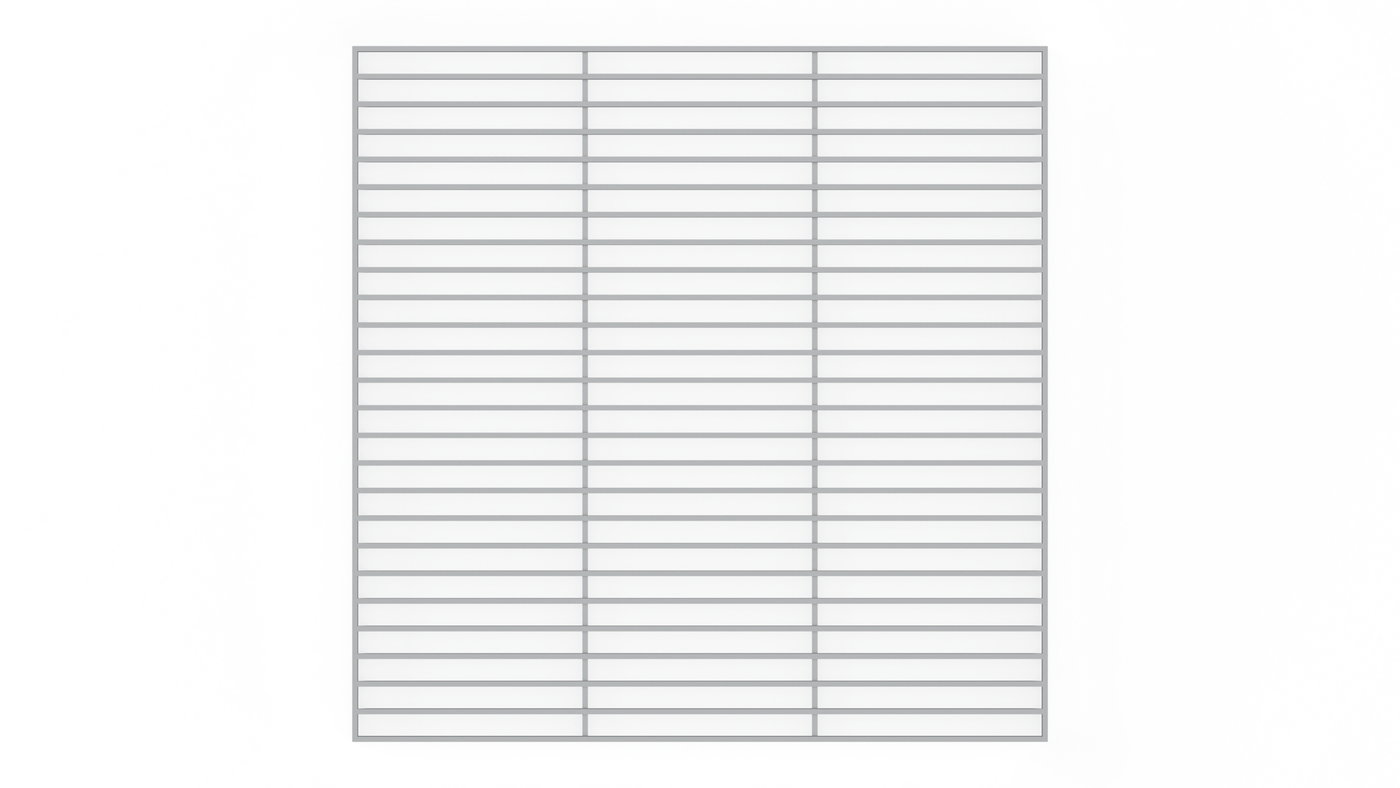

Top view

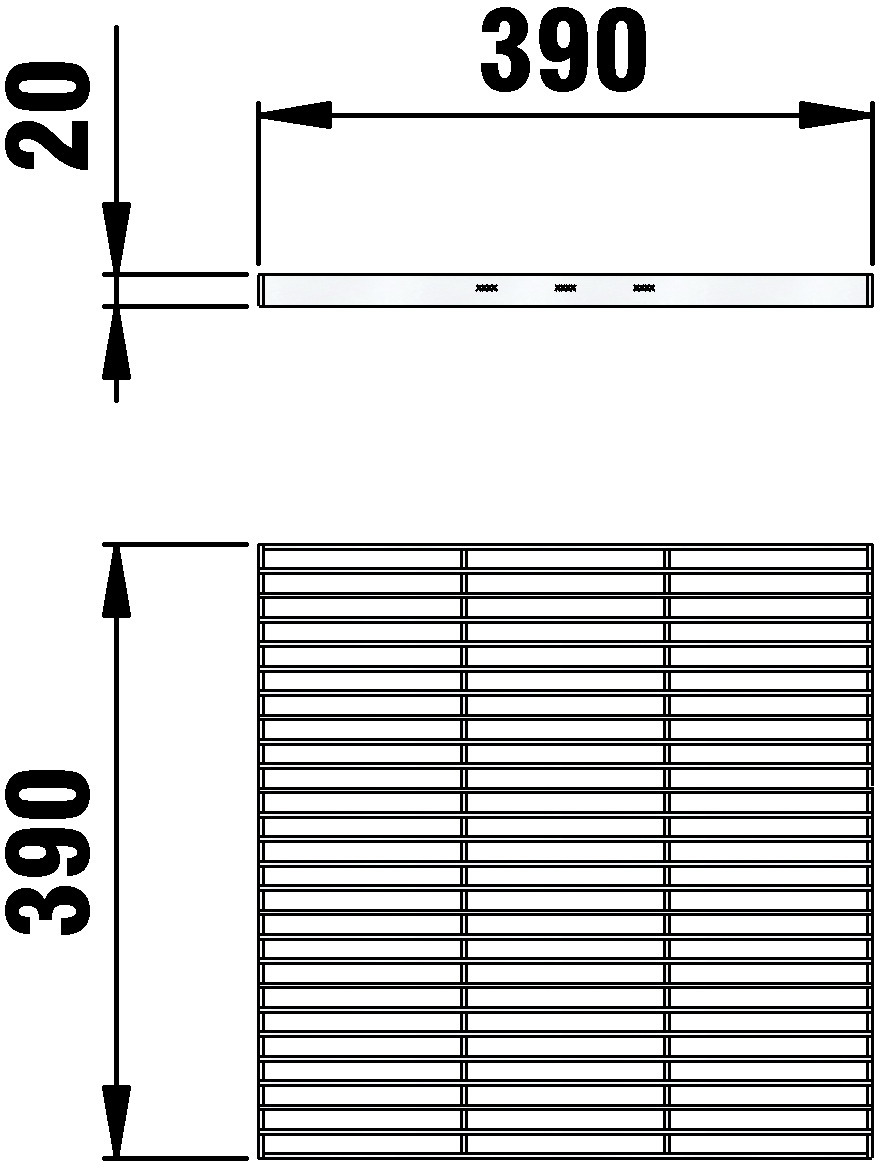

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65479
Length
390 mm
Width
390 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
5.20 kg
Material
Stainless steel 1.4301
Intake cross-section
2942.0 cm²/m
Inlet opening
0
Material cover
Stainless steel 1.4301
Sales text
Longitudinal cover bar distance 12 mm, stainless steel, bar thickness 3 mm, cl. A 15, DACHFIX POINT Gully 40/40
Product description
DACHFIX POINT Gully 40/40 - Longitudinal cover, bar distance 12 mm, bar thickness 3 mm, made of stainless steel CNS 1.4301, load class A 15, optionally screwable, LxW 390x390 mm, item no. 65479
Packaging unit
204
