Article No. 65477
Cover 40 x 40, Class A 15
Mesh cover MS 30/10 mm, stainless steel
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

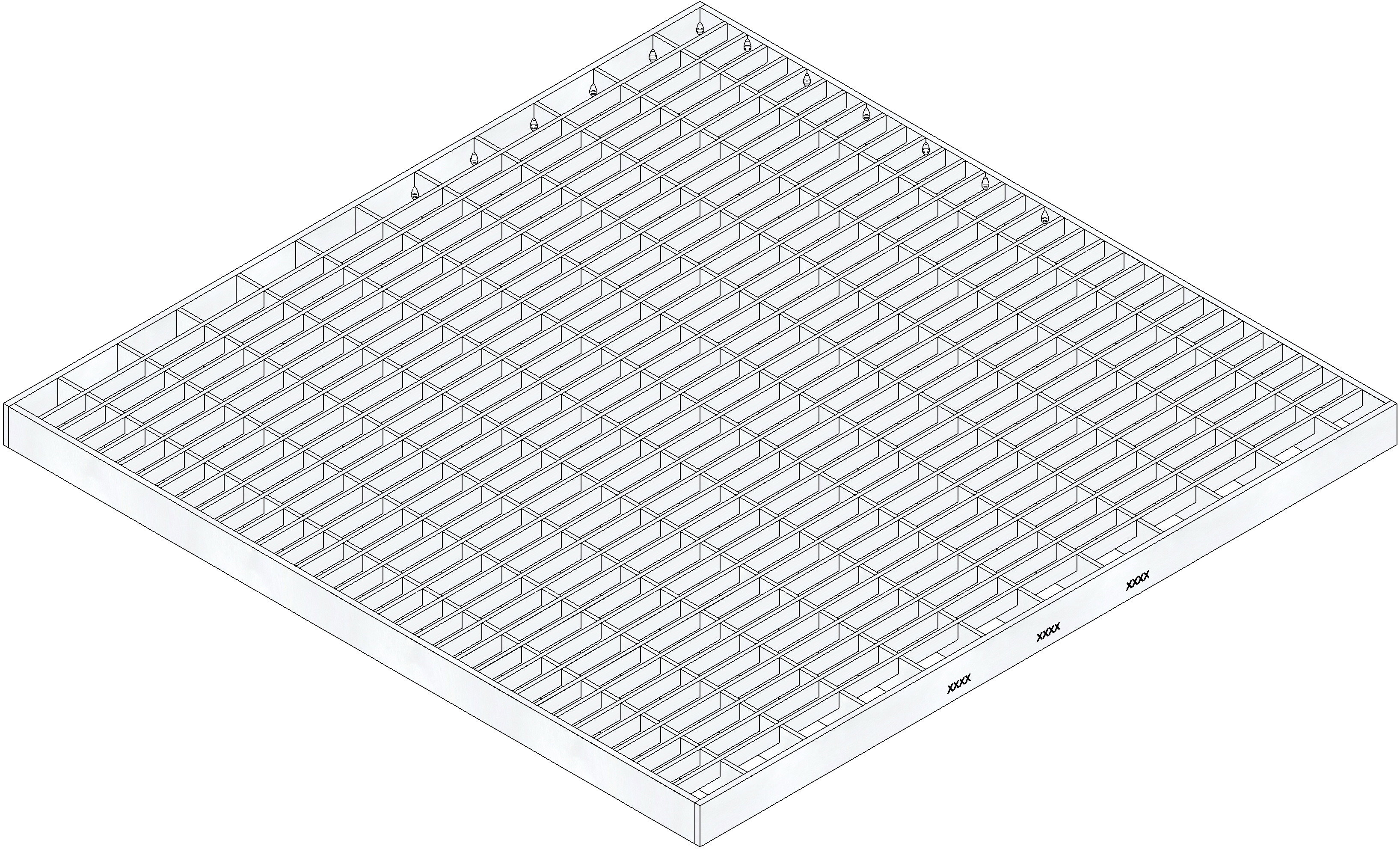

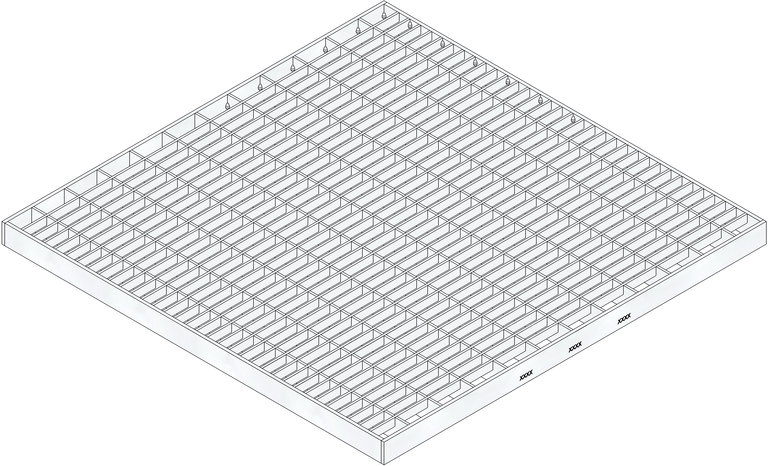

Product image
Technical drawing
Drawing (CAD)

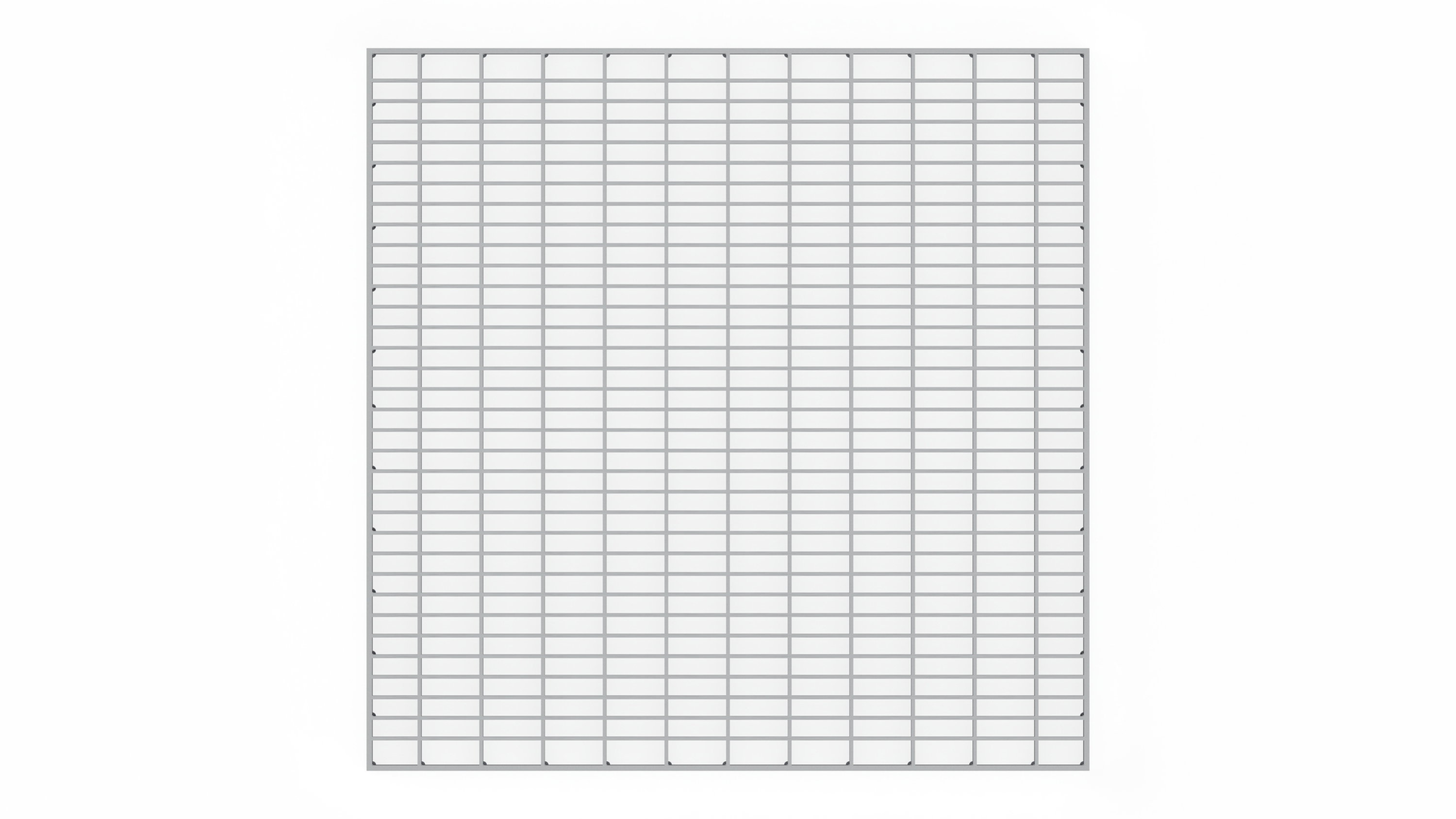

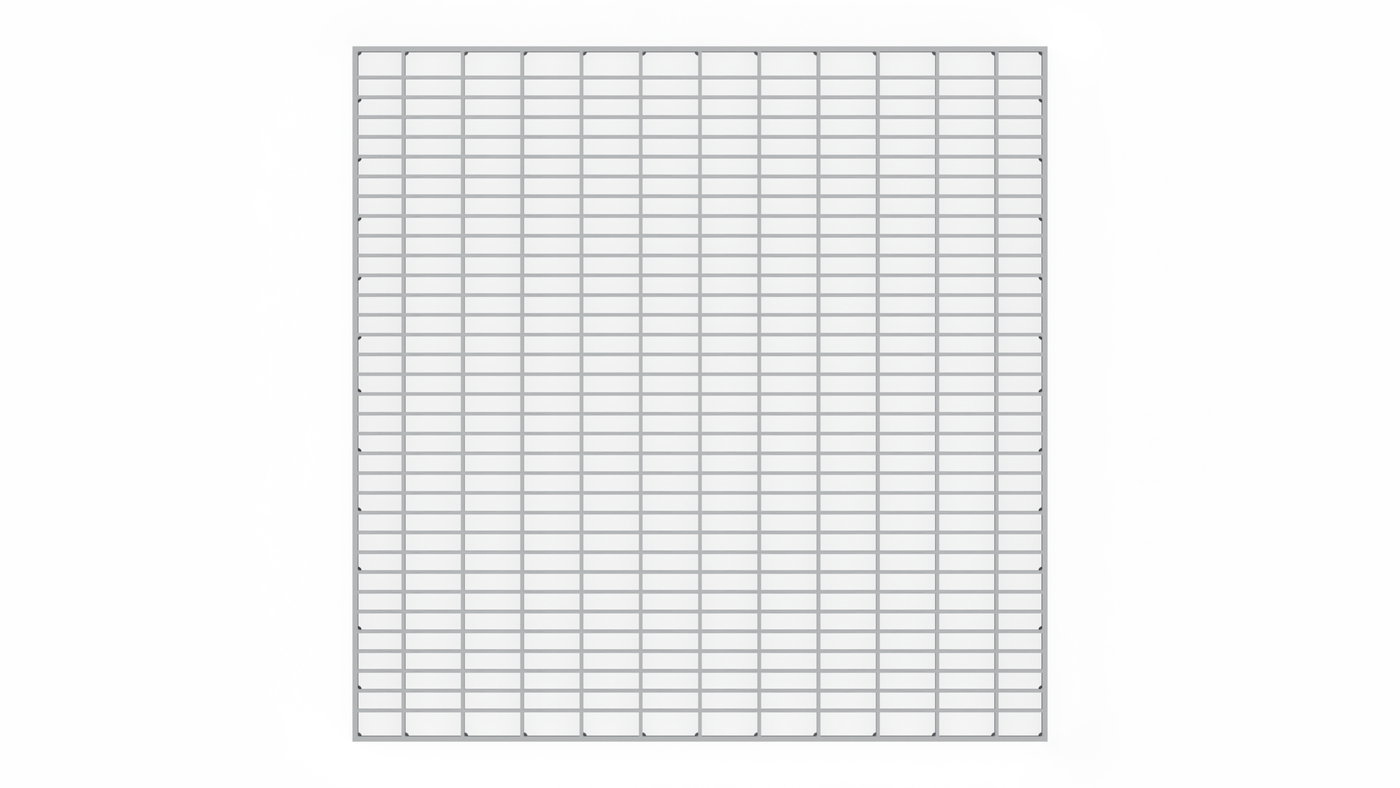

Top view
Data Sheet
Technical information and metrics
Article No.
65477
Length
390 mm
Width
390 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
3.58 kg
Material
Stainless steel 1.4301
Intake cross-section
3107.0 cm²/m
Inlet opening
10
Material cover
Stainless steel 1.4301
Sales text
Mesh cover MS 30/10 mm, stainless steel, cl. A 15, DACHFIX POINT Gully 40/40
Product description
DACHFIX POINT Gully 40/40 - Mesh cover MS 30/10 mm, made of stainless steel CNS 1.4301, load class A 15, optionally screwable, no interruption of mesh pattern, LxW 390x390 mm, item no. 65477
Packaging unit
204
