Article No. 10812
Cover for SPORTFIX Slotted channels
Running track cover, curved (radius = 36.5 m), white, with positioning pins, for SPORTFIX slotted channel, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

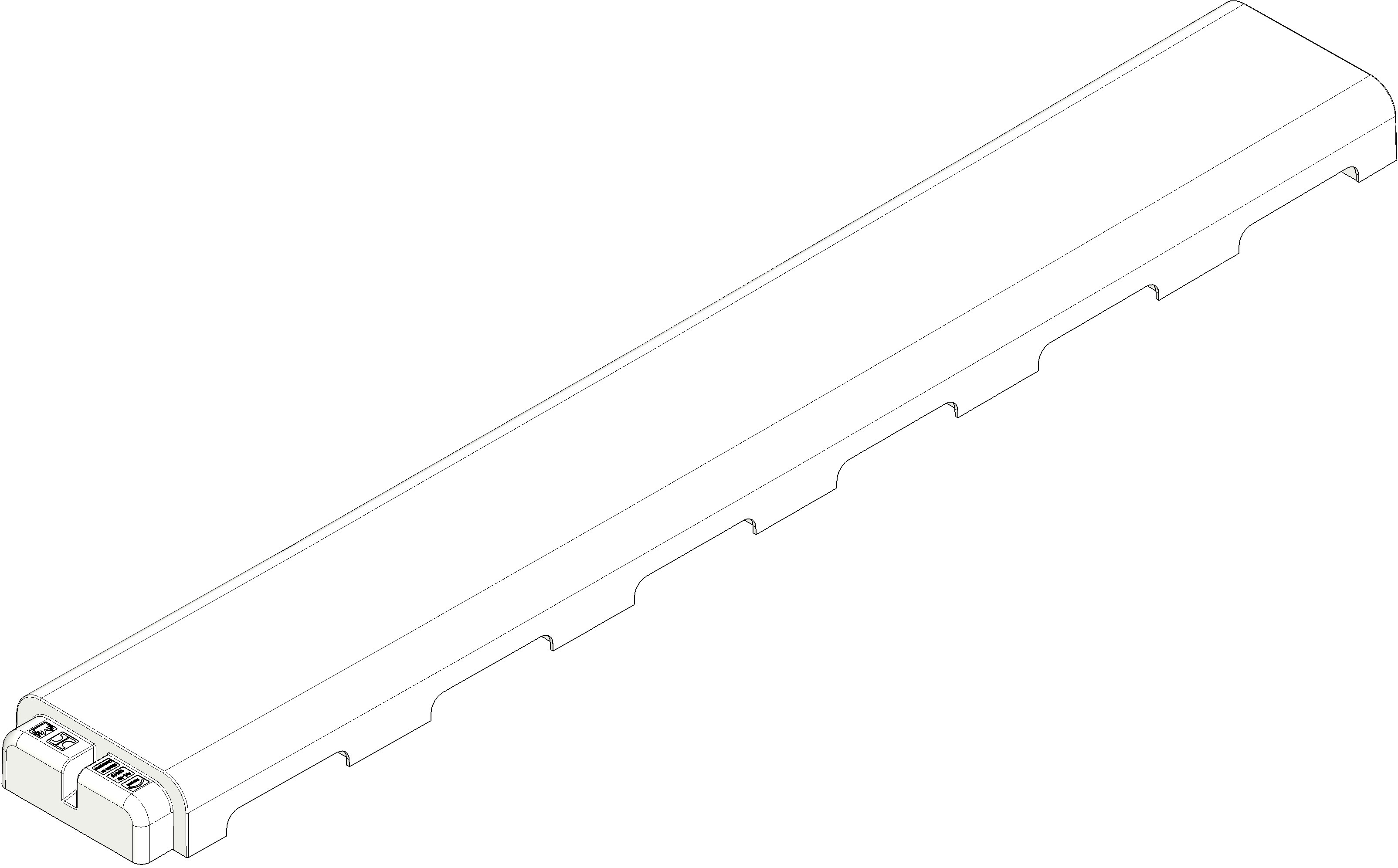

Product image

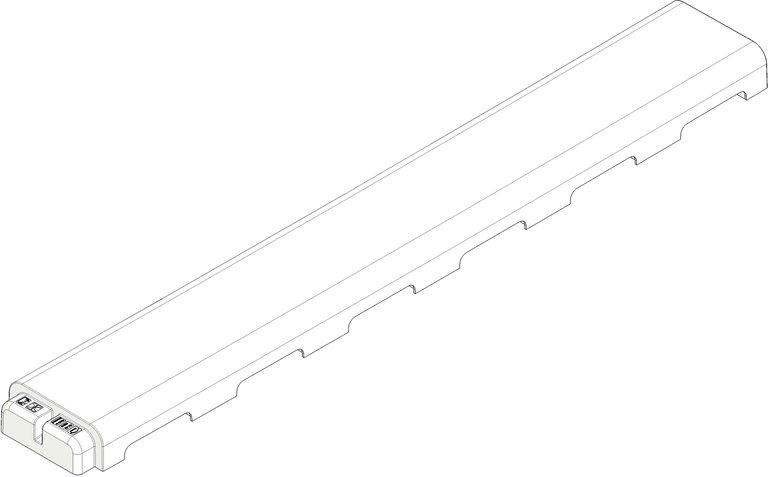

Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
10812
Length
1000 mm
Width
144 mm
Height
94 mm
Einlegetiefe
51 mm
Weight
1.39 kg
Material
reinforced Polypropylene
Intake cross-section
0.0 cm²/m
Nominal size
100
Inlet opening
0
Material cover
reinforced Polypropylene
Regulations
EN 1433 + IAKS, DIN 19580
Sales text
SPORTFIX Running track cover, curved, made of composite, white, with positioning pins, for SPORTFIX slotted channels, as inner track border for running tracks, removable and reattachable as needed, 1 m
Product description
SPORTFIX - Running track cover, curved (radius = 36.5 m), with inlets on both sides, made of UV-resistant, shatterproof composite, white, with positioning pins, as inner track border for running tracks, removable and reattachable as needed, for fixing on SPORTFIX slotted channels, curved (radius = 36.5 m), according to the requirements of World Athletics, LxWxH 1000x144x51 mm, item no. 10812
Packaging unit
-
