Article No. 65023
DACHFIX POINT Cross-intersection
as channel, galvanised, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

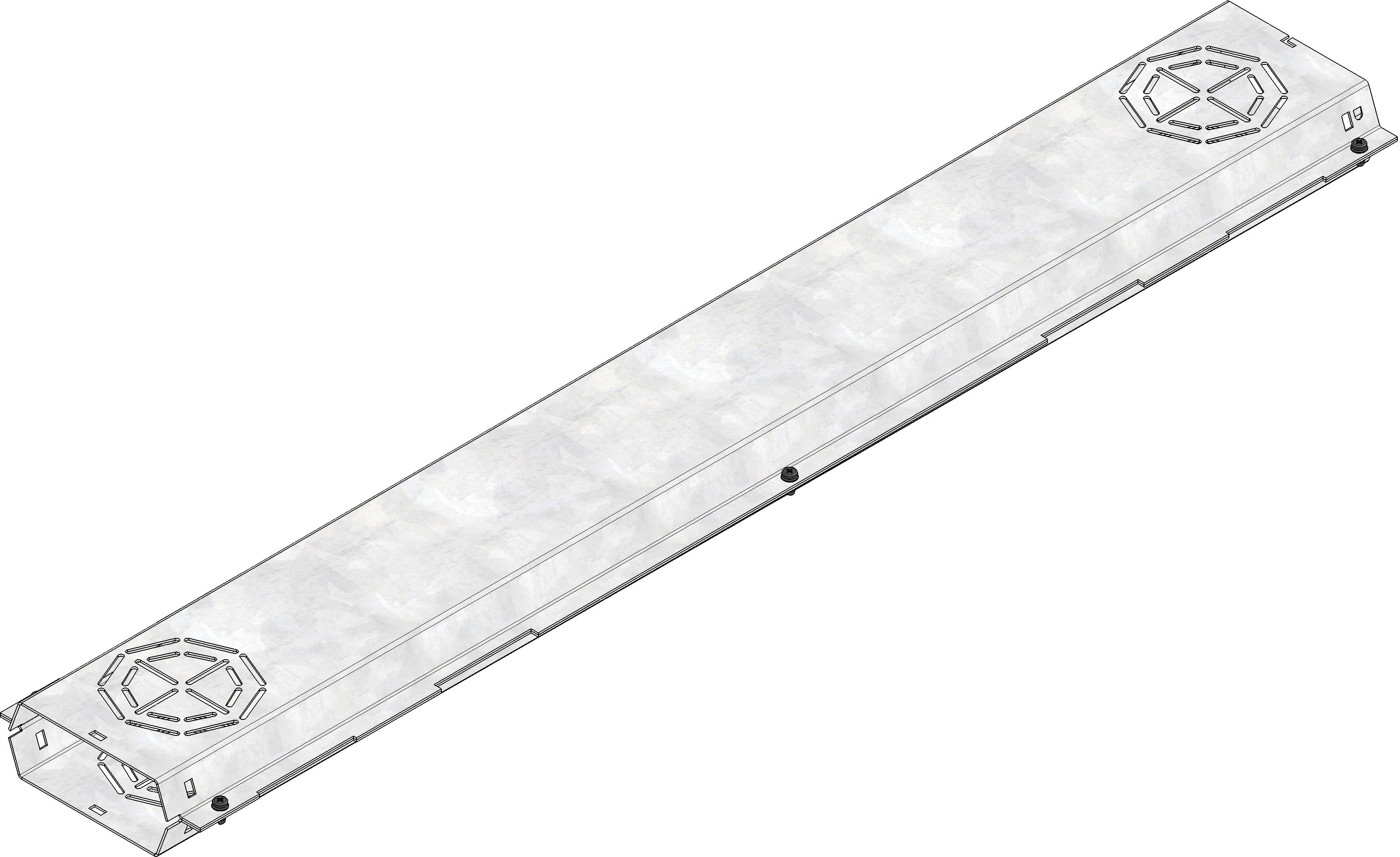

Product image

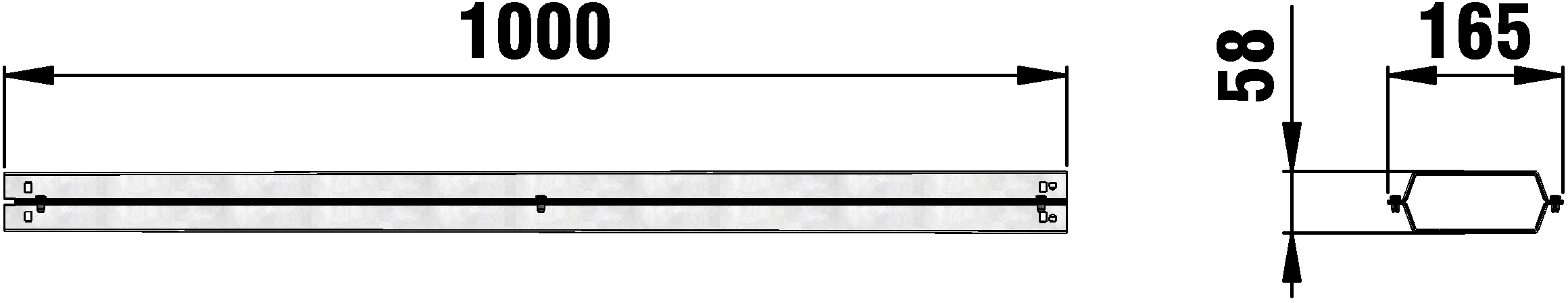

Technical drawing

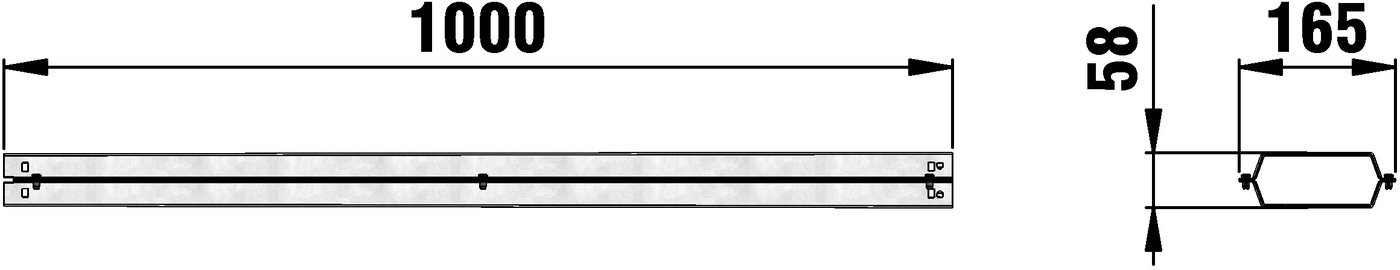

Drawing (CAD)
Drawing
Technical information and metrics
Article No.
65023
Length
1000 mm
Width
165 mm
Height
58 mm
Weight
4.46 kg
Material
strip galvanized steel
Nominal size
115, 135, 155, 205, 255
Sales text
Cross-intersection channel, galvanised, trapezoidal conical shape/hat profile, doubled variant as closed flat duct, DACHFIX STEEL/ STEELFIX REGULAR, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR - Cross-intersection channel, doubled variant as closed flat duct, hexagonal shape, made of galvanised steel, pluggable and fixable, with connection possibility DN/OD 110 as inlet and outlet, LxWxH 1000x165x58 mm, item no. 65023
Packaging unit
-
Tender Texts
Installation instructions
