Article No. 65002
DACHFIX POINT Cross-intersection
open, stainless steel, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

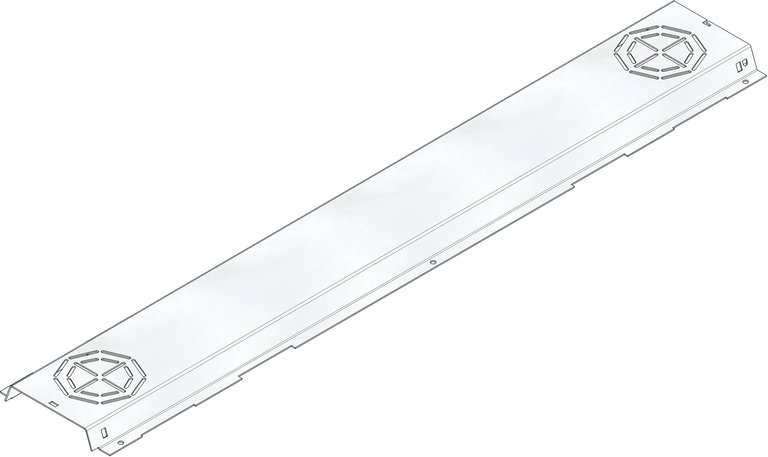

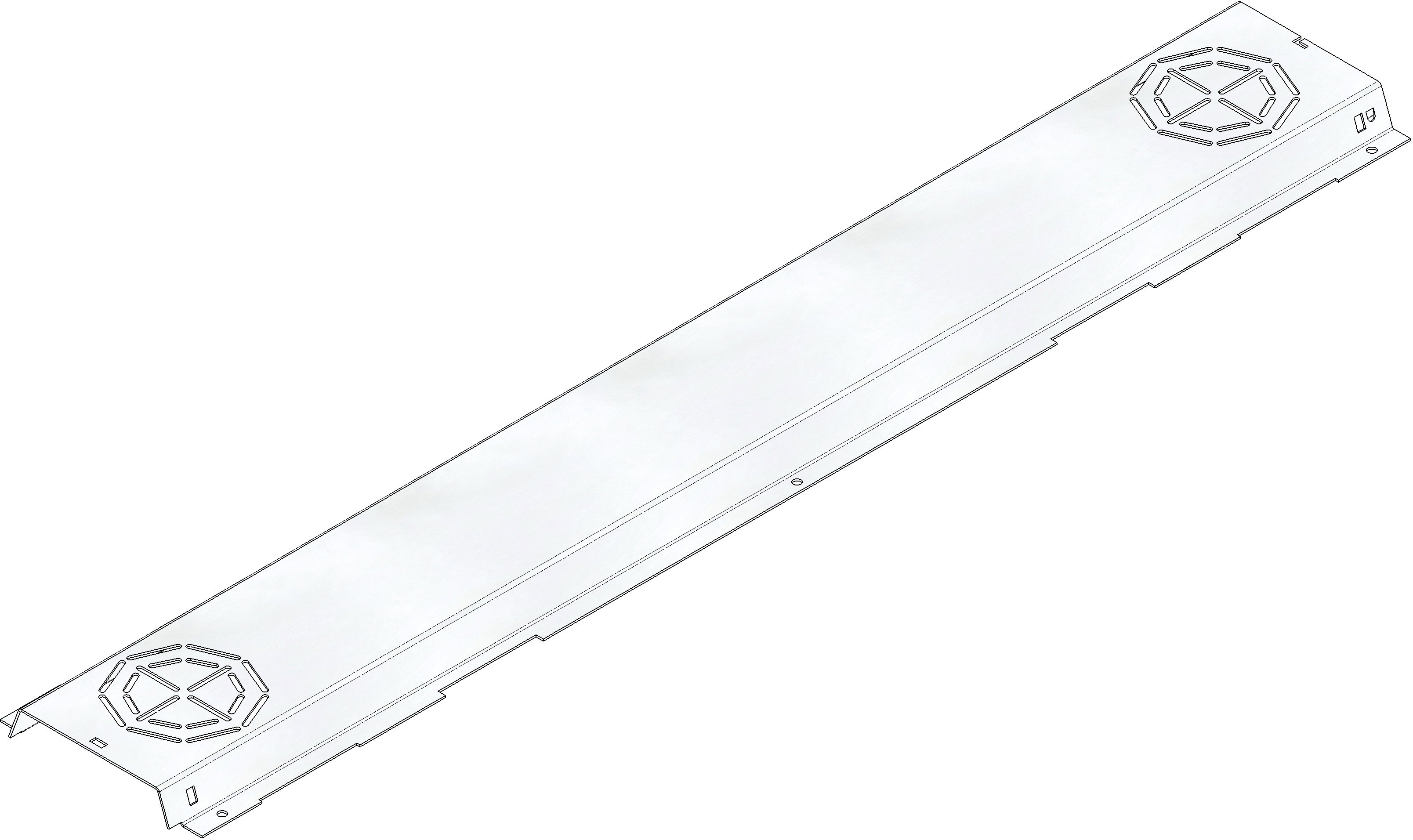

Product image

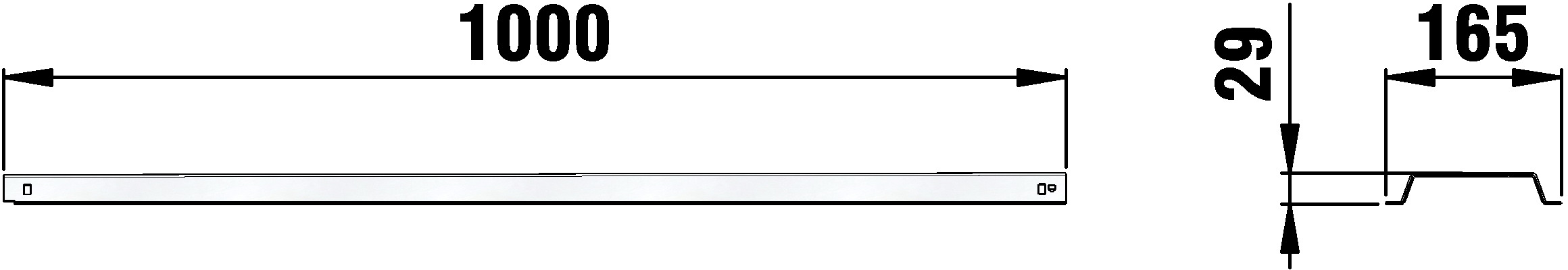

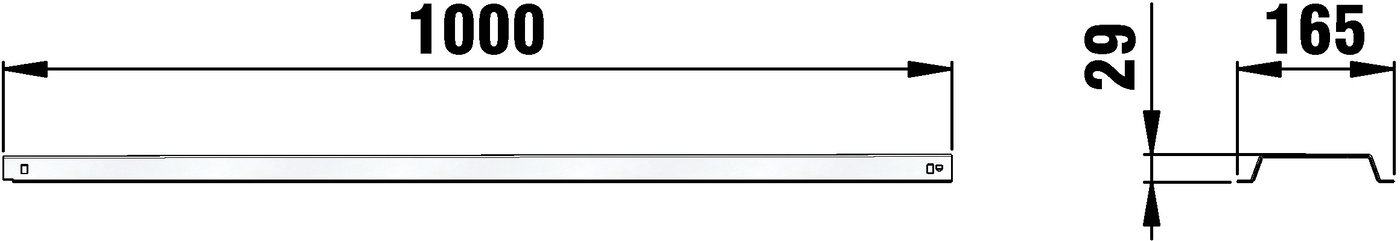

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
65002
Length
1000 mm
Width
165 mm
Height
29 mm
Weight
2.24 kg
Material
Stainless steel 1.4301
Nominal size
115, 135, 155, 205, 255
Sales text
Cross-intersection (channel), stainless steel, trapezoidal conical shape/hat profile, open downwards, DACHFIX STEEL/STEELFIX REGULAR , 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR -cross-intersection, open downwards, trapezoidal conical shape/hat profile, made of stainless steel CNS 1.4301, pluggable and fixable, with connection possibility DN/OD 110 as inlet, LxWxH 1000x165x29 mm, item no. 65002
Packaging unit
-
Tender Texts
Installation instructions
