Article No. 65072
DACHFIX POINT Cross-intersection
with u-plate, stainless steel, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

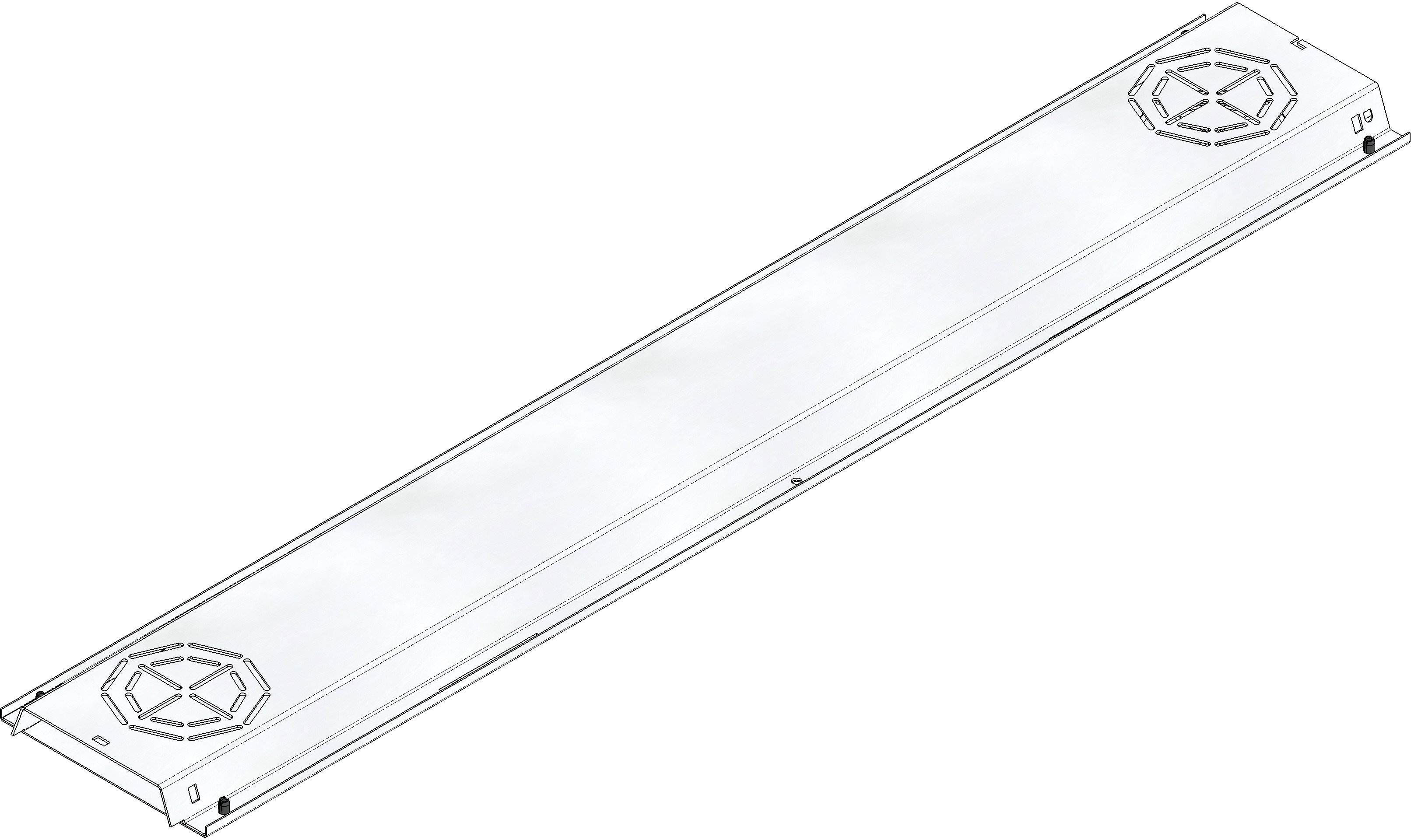

Product image

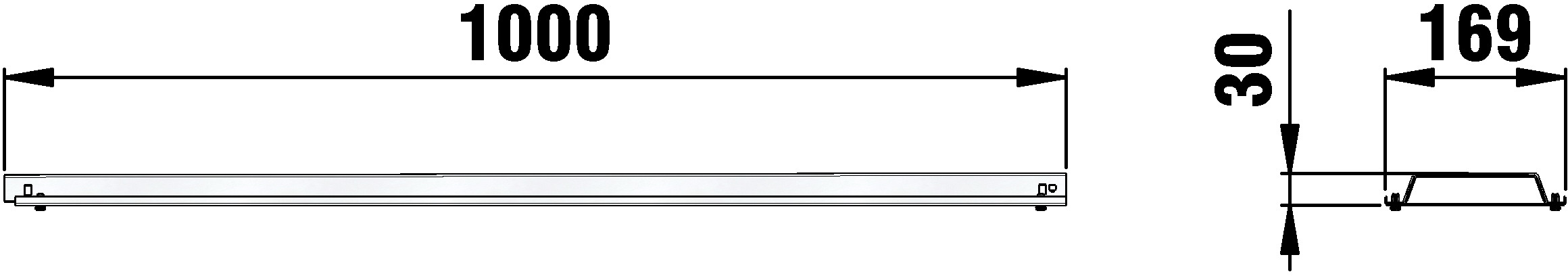

Technical drawing
Drawing (CAD)

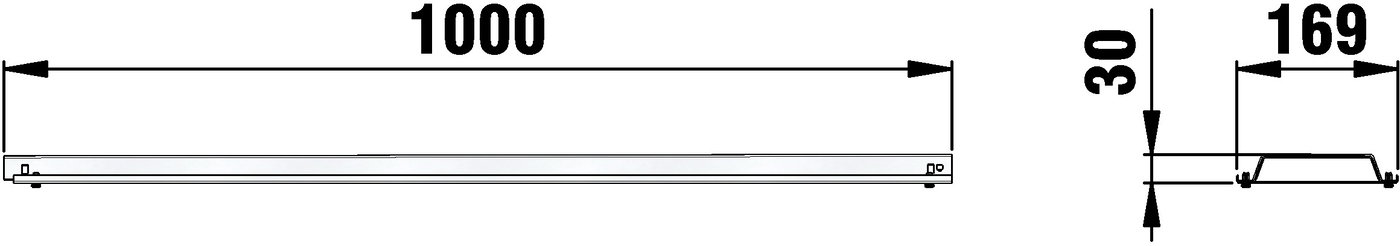

Drawing
Technical information and metrics
Article No.
65072
Length
1000 mm
Width
169 mm
Height
30 mm
Weight
3.60 kg
Material
Stainless steel 1.4301
Nominal size
115, 135, 155, 205, 255
Sales text
Cross-intersection (channel), stainless steel, trapezoidal conical shape/hat profile, with flat trough as closed flat duct, DACHFIX STEEL/STEELFIX REGULAR, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR -cross-intersection with base plate, trapezoidal conical shape/hat profile, with flat trough as closed flat duct, made of stainless steel CNS 1.4301, pluggable and fixable, with connection possibility DN/OD 110 as inlet and outlet, LxWxH 1000x169x30 mm, item no. 65072
Packaging unit
-
Tender Texts
Installation instructions
