Article No. 63000
DACHFIX RESIST, height 75 mm, channels made of recycled composite
Type 75, silver, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

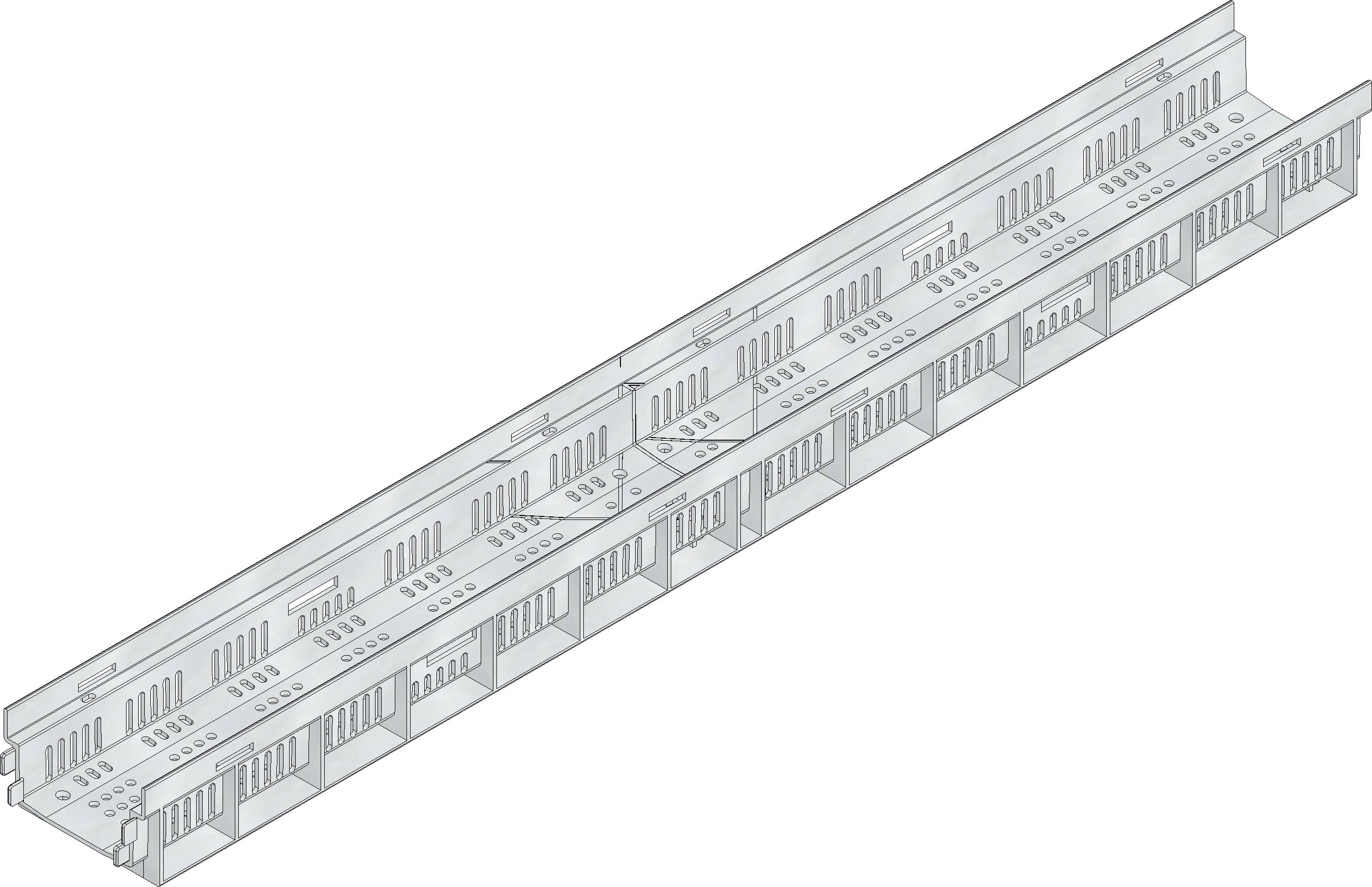

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
63000
Length
1000 mm
Width
115 mm
Height
75 mm
Weight
0.88 kg
Material
modified Polypropylene silver
Height of angle housing
20 mm
Nominal size
90
Internal channel cross-section
28 cm²
Fall
-
Type according to DIN EN 1433
M
Channel material
modified Polypropylene silver
Sales text
DACHFIX RESIST 115 Channel body type 75 made of recycled PP, silver, installation height 75 mm, 1 m
Product description
DACHFIX RESIST 115 type 75 - Channel body, made of recycled polypropylene, silver, LxWxH 1000x115x75 mm, item no. 63000
Packaging unit
180
Tender Texts
Installation example
wheelchair accessible, drainage without channel connection
