Article No. 65185

DACHFIX STEEL 135, height 150 mm

Type 150, stainless steel, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

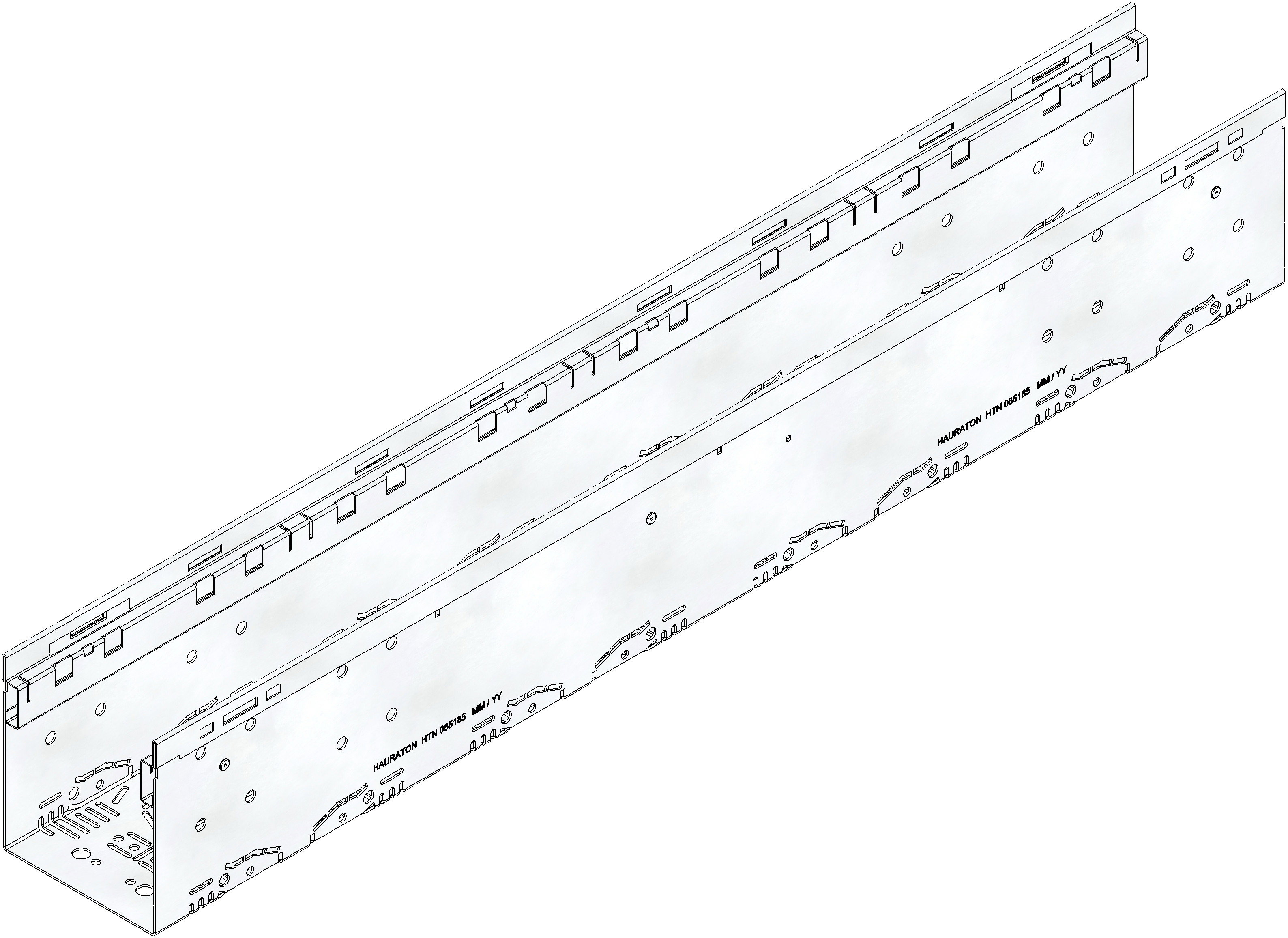

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
65185
Length
1000 mm
Width
135 mm
Height
150 mm
Weight
6.05 kg
Material
Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
135
Internal channel cross-section
169 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
Stainless steel 1.4301
Sales text
DACHFIX STEEL 135 Channel body type 150, stainless steel, installation height 150 mm, 1 m
Product description
DACHFIX STEEL 135 type 150 - Channel body made of stainless steel CNS 1.4301, pedestrian and wheelchair accessible, cover support tilted inwards, with perforation on the sides and in channel base, with connection possibility in the channel base for pipe connector DN/OD 75 or DN/OD 100 as well as lateral 8-fold connection possibility for cross-intersection, with integrated, optional 4 -fold fixing anchor, LxWxH 1000x135x150 mm, item no. 65185
Packaging unit
112

Tender Texts

Installation instructions
Installation instructions

Installation example

wheelchair accessible, drainage without channel connection

Installation example

wheelchair accessible, drainage via drain box, vertical connection

Installation example

wheelchair accessible, drainage via drain box, horizontal connection

Installation example

wheelchair-accessible, drainage via channel connection, vertical, barrier-free transition (2 cm)

Installation example

wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)

Installation example

flagstone surface class Walkable, wheelchair accessible

Installation example

wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection

Installation example

wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example
