Article No. 65103

DACHFIX STEEL 135, height 45 mm

Type 45, height adjustable, galvanised, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

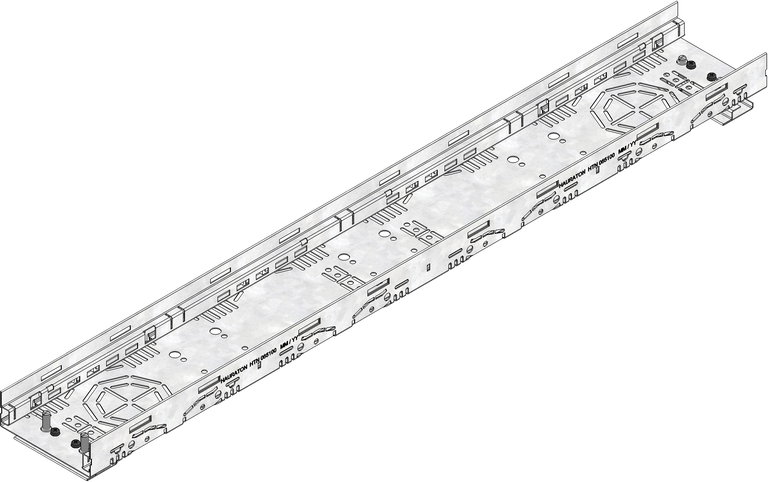

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
65103
Length
1000 mm
Width
135 mm
Height
59 - 74 mm
Weight
2.54 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
135
Internal channel cross-section
32 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
DACHFIX STEEL 135 Channel body type 45, height adjustable, galvanised, height adjustment range 59-74 mm, 1 m
Product description
DACHFIX STEEL 135 type 45 - channel body with adjustable base plate, made of corrosion-protected galvanised steel, pedestrian and wheelchair accessible, cover support tilted inwards, with perforation on the sides and in channel base, with connection possibility in the channel base for pipe connector DN/OD 75 or DN/OD 100 as well as lateral 8-fold connection possibility for cross-intersection, with integrated, optional 4-fold fixing anchor, incl. 2 adjustment sets/metre, height adjustability 59-74 mm, LxWxH 1000x135x59-74 mm, item no. 65103
Packaging unit
360

Tender Texts

Installation instructions
Installation instructions

Installation example

wheelchair accessible, drainage without channel connection

Installation example

wheelchair accessible, drainage via drain box, vertical connection

Installation example

wheelchair accessible, drainage via drain box, horizontal connection

Installation example

wheelchair-accessible, drainage via channel connection, vertical, barrier-free transition (2 cm)

Installation example

wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)

Installation example

flagstone surface class Walkable, wheelchair accessible

Installation example

wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection

Installation example

wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example
