Article No. 69062
DACHFIX STEEL 135
Longitudinal cover, bar distance 12 mm, stainless steel, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

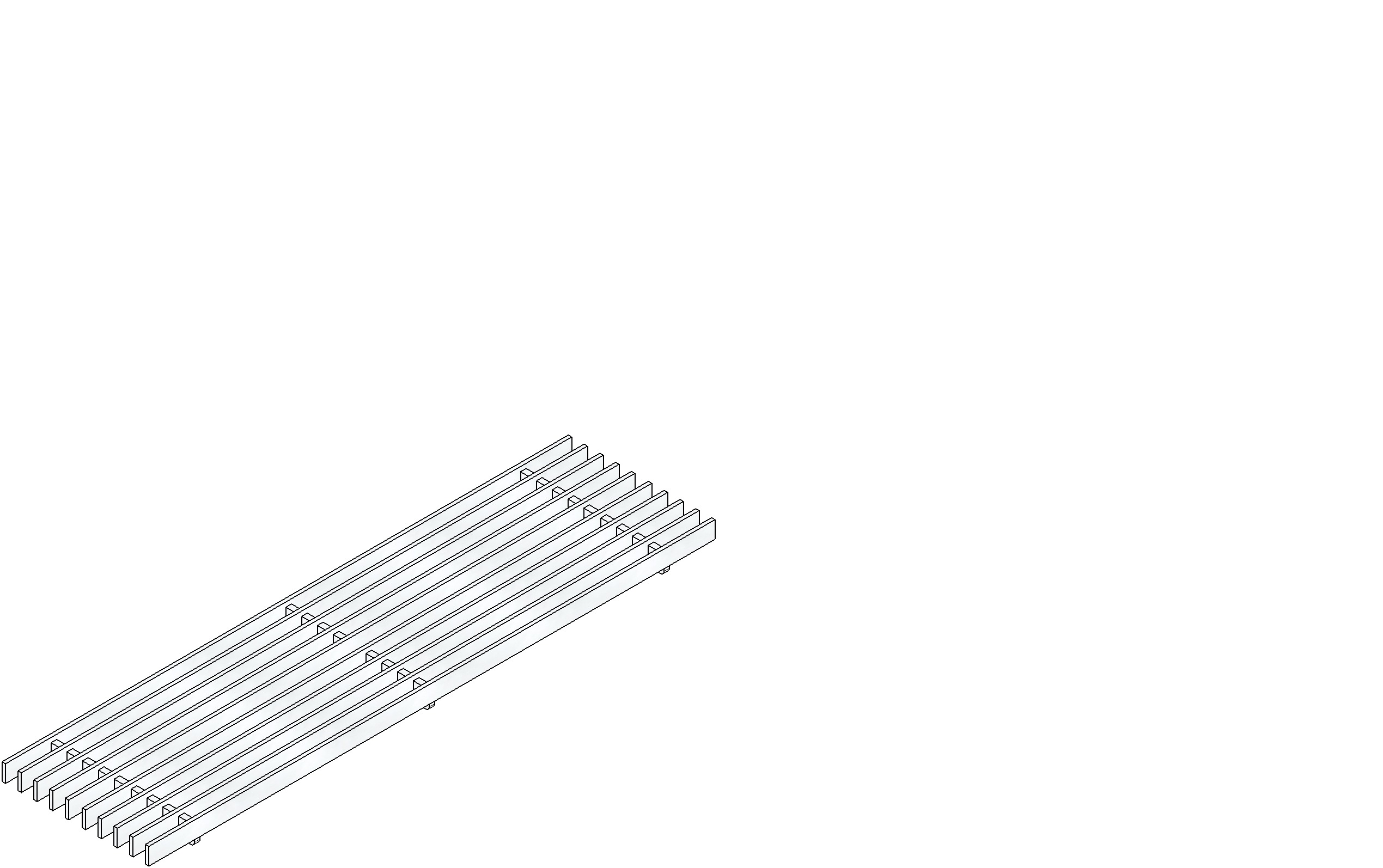

Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
69062
Length
500 mm
Width
129 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
1.91 kg
Material
Stainless steel 1.4301
Intake cross-section
946.0 cm²/m
Nominal size
135
Inlet opening
0
Fixing type
Locking handle
Material cover
Stainless steel 1.4301
Sales text
Longitudinal cover bar distance 12 mm, stainless steel, cl. A 15, DACHFIX STEEL/STEELFIX REGULAR 135, 0.5 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 135 -Longitudinal cover bar distance 12 mm, made of stainless steel CNS 1.4301, load class A 15, installation length 500 mm, item no. 69062
Packaging unit
-
