Article No. 69003
DACHFIX STEEL 205
Mesh cover MS 30/10 mm, galvanised, 1.0 m
Smaller quantities can be delivered immediately from stock, items will soon be available again in larger quantities
Questions?
Our experienced planning team will be happy to help you.
Get in touch

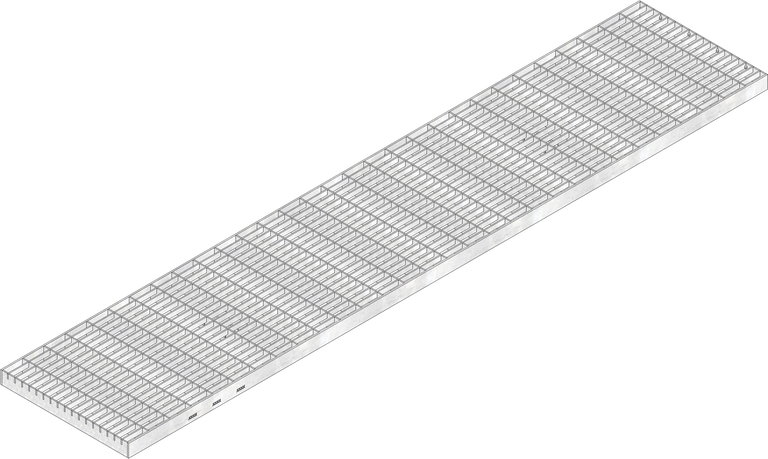

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
69003
Length
1000 mm
Width
200 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
3.76 kg
Material
hot-dip galvanised steel
Intake cross-section
1490.0 cm²/m
Nominal size
205
Inlet opening
10
Fixing type
Locking handle
Material cover
hot-dip galvanised steel
Sales text
Mesh cover MS 30/10 mm, galvanised, cl. A 15, 2-fold screwable, DACHFIX STEEL/STEELFIX REGULAR 205, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 205 -Mesh cover MS 30/10 mm made of galvanised steel, load class A 15, 2-fold bolting possibility, installation length 1000 mm, item no. 69003
Packaging unit
170
