Article No. 69065
DACHFIX STEEL 255
Longitudinal cover, bar distance 12 mm, stainless steel, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

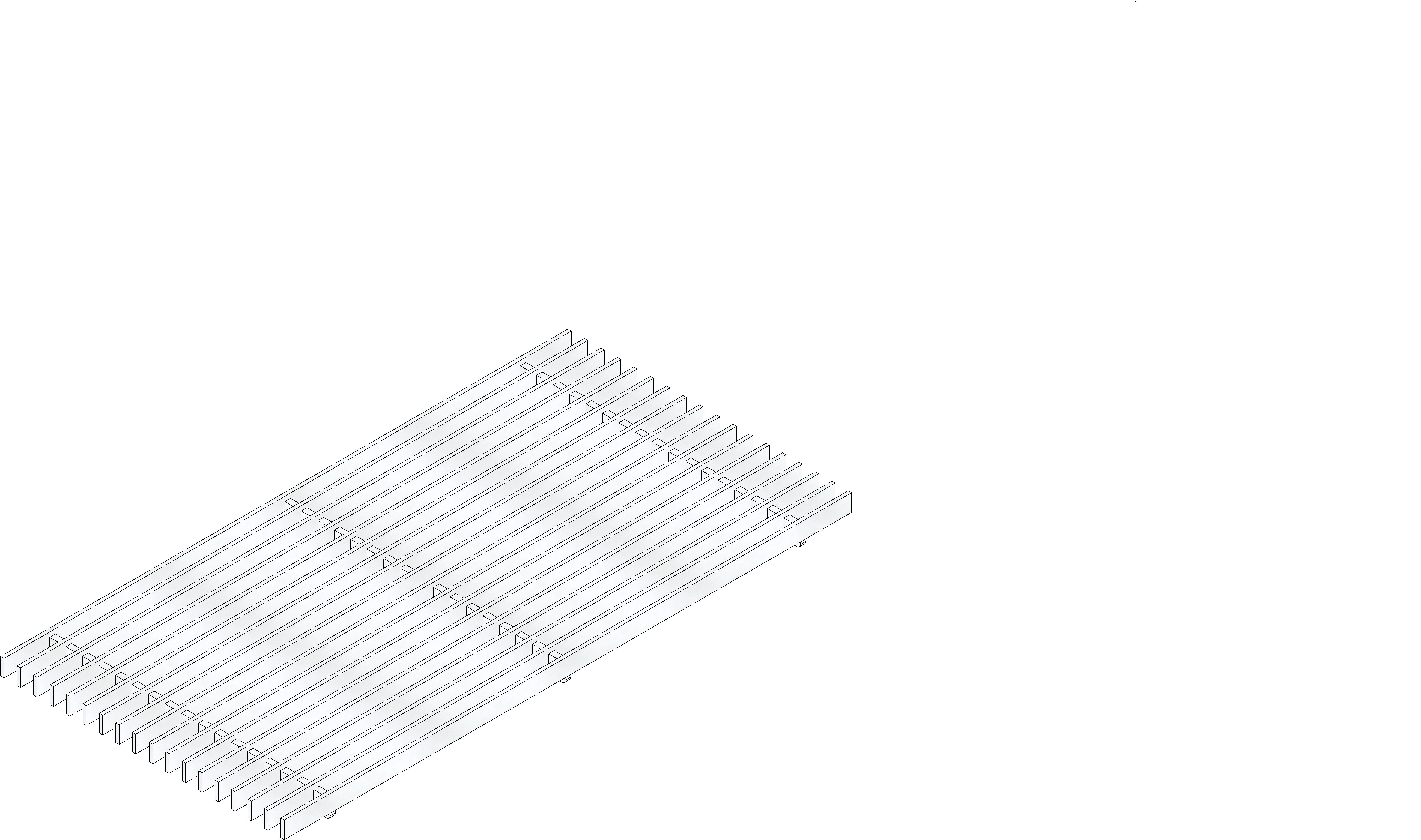

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
69065
Length
500 mm
Width
249 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
3.59 kg
Material
Stainless steel 1.4301
Intake cross-section
1884.0 cm²/m
Nominal size
255
Inlet opening
0
Fixing type
Locking handle
Material cover
Stainless steel 1.4301
Sales text
Longitudinal cover bar distance 12 mm, stainless steel, cl. A 15, DACHFIX STEEL/STEELFIX REGULAR 255, 0.5 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 255 -Longitudinal cover bar distance 12 mm, made of stainless steel CNS 1.4301, load class A 15, installation length 500 mm, item no. 69065
Packaging unit
-
