Article No. 10659
DRIVETEC PA 100, Class B 125
Type 01 with slotted mesh cover heelsafe made of PA, MS 12/7 mm, black, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

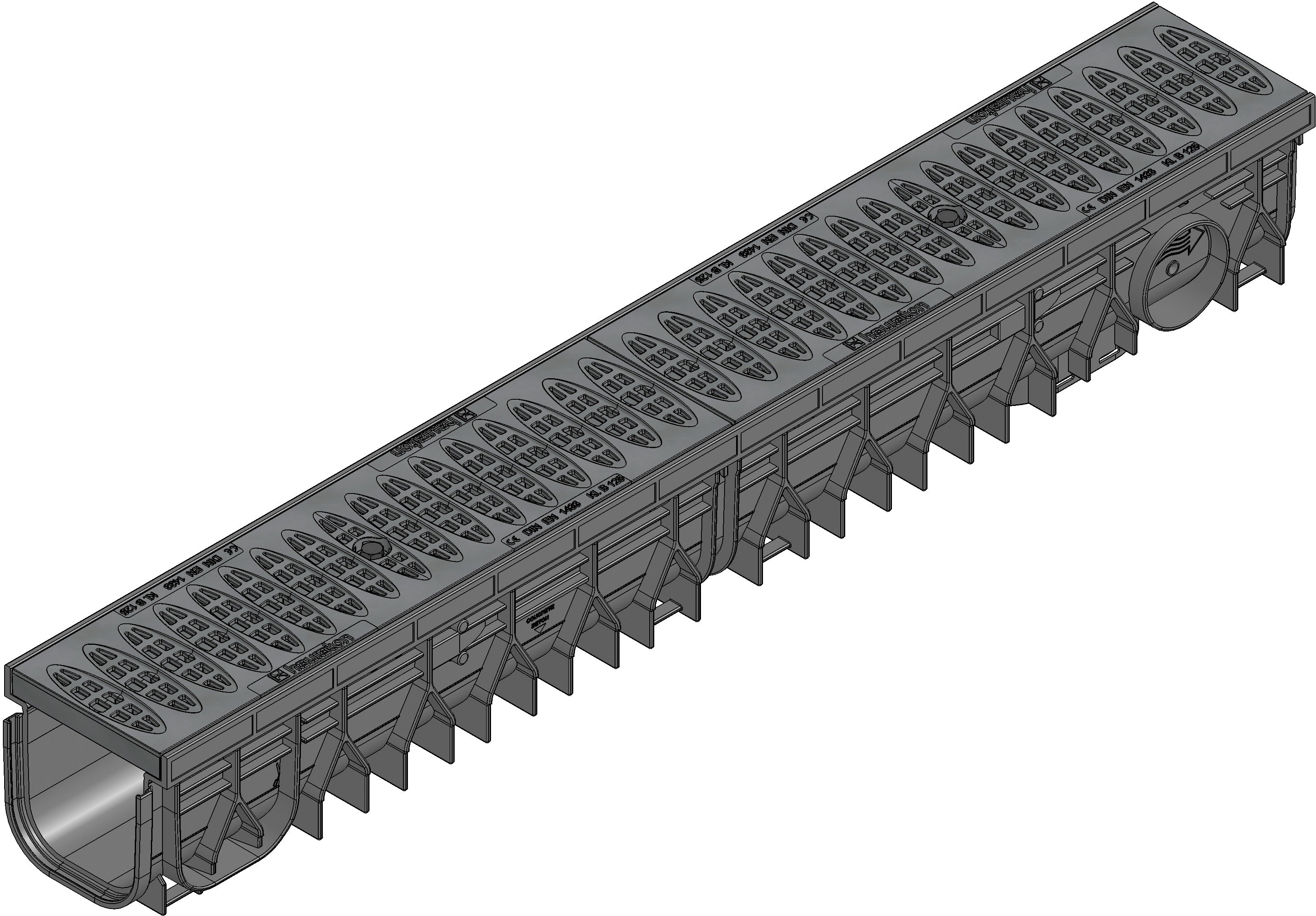

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10659
Length
1000 mm
Width
141 mm
Height
134 mm
Einlegetiefe
20 mm
Weight
3.67 kg
Material
recycled polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
212.0 cm²/m
Nominal size
100
Internal channel cross-section
95 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material cover
reinforced Polyamide
Regulations
EN 1433, DIN 19580
Sales text
DRIVETEC PA 100 Channel type 01 with integrated edge frames, with slotted mesh cover heelsafe made of PA, MS 12/7 mm, black, cl. B 125, locked, 1 m
Product description
DRIVETEC PA 100 type 01 - Channel body made of recycled polypropylene, with integrated edge frames, with lateral (DN/OD 75) and vertical connection possibility (DN/OD 110 through adapter, available separately), with mesh cover heelsafe MS 12/7 mm, made of polyamide, black, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x141x134 mm, item no. 10659
Packaging unit
64
Declaration of Performance
Tender Texts
Installation example
Asphalt class A 15 - B 125,
Pavement class A 15,
Pavement class B 125,
Pavement class B 125,
