Article No. 40591
End caps
for NW 150, for Type 01, with combined outlet DN/OD 75/110, made of PP
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

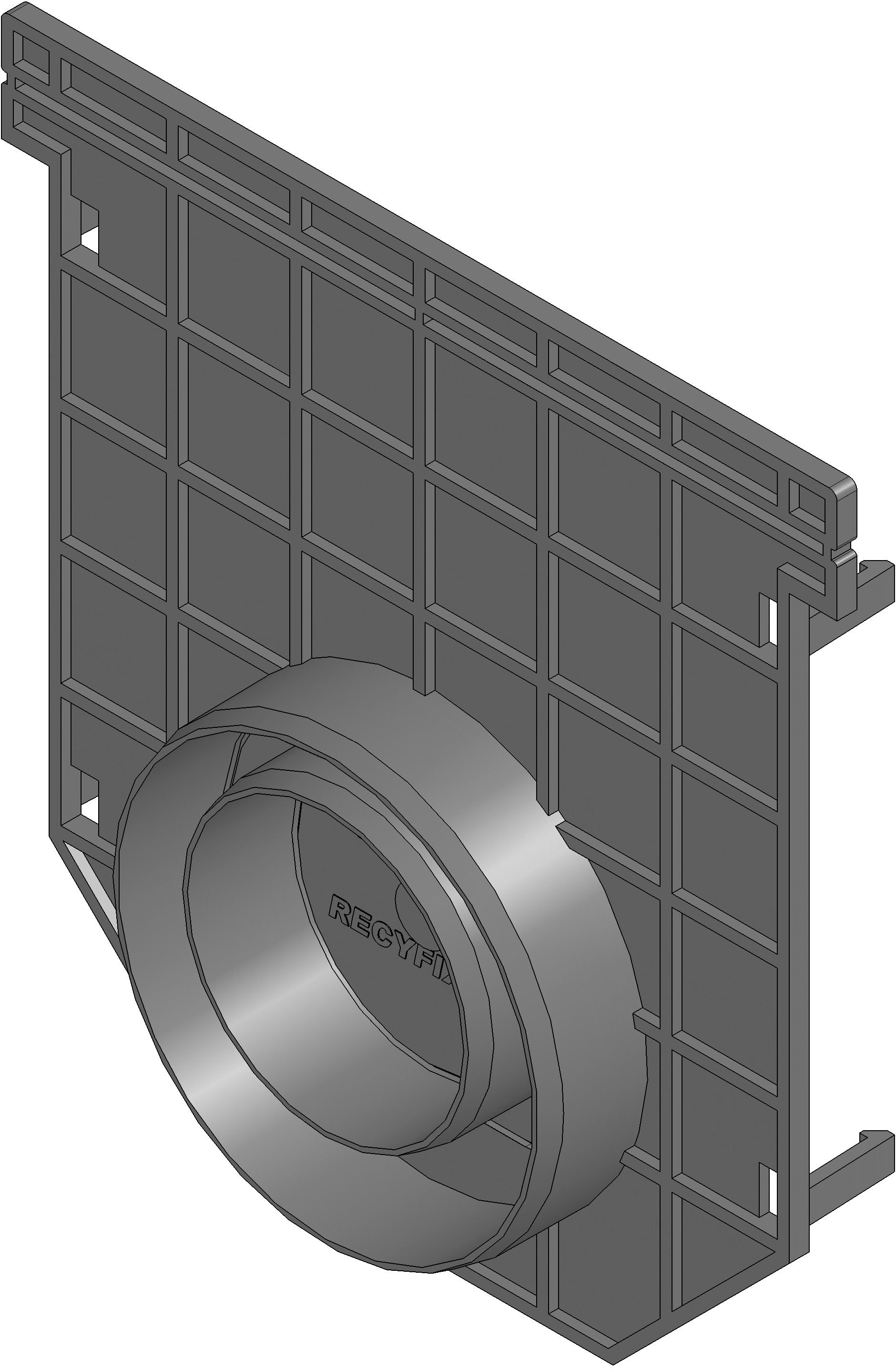

Product image

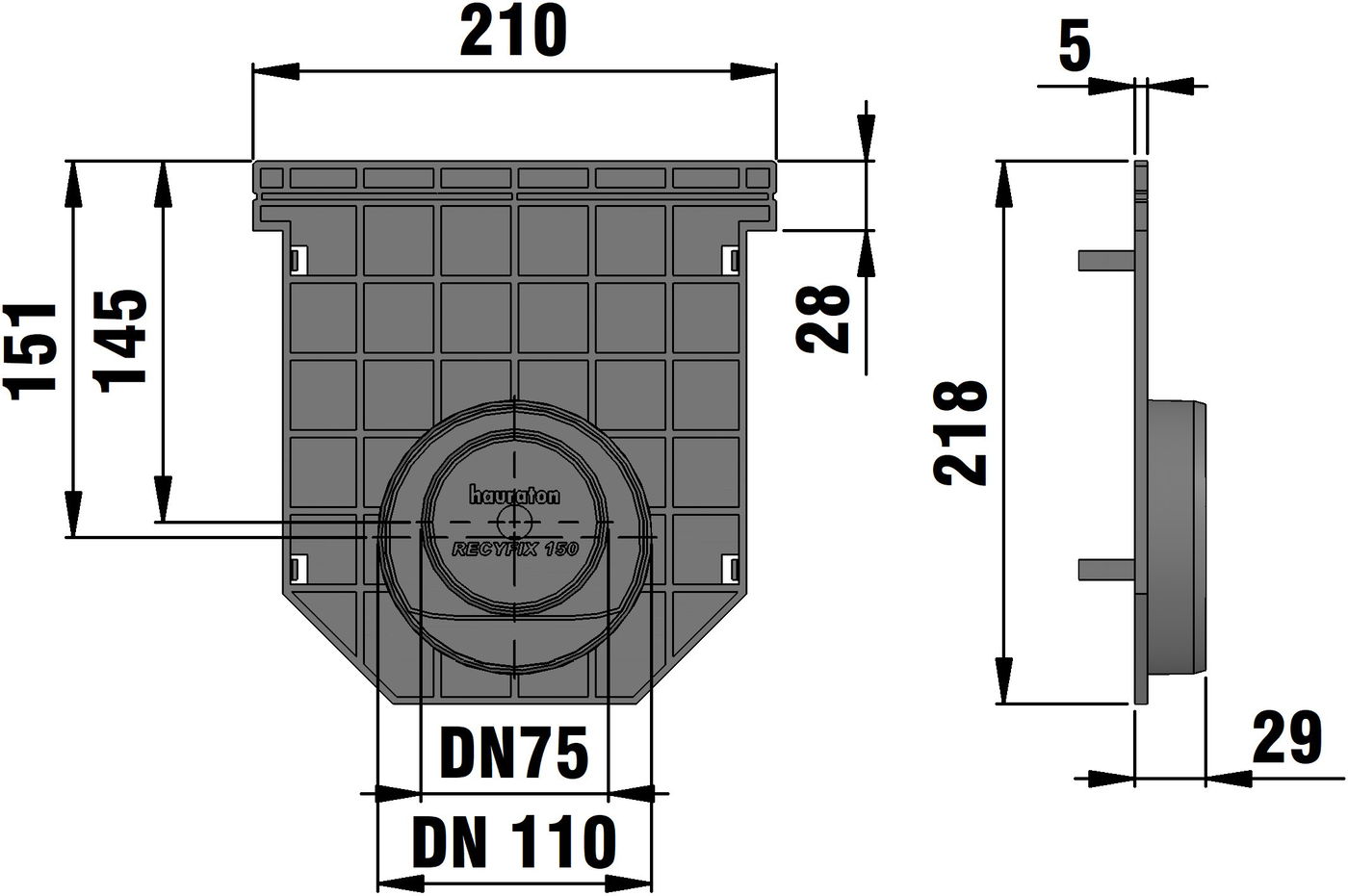

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
40591
Width
210 mm
Height
218 mm
Weight
0.14 kg
Material
recycled, modified Polypropylene
Nominal size
150
Sales text
End cap with connection possibility and preformed pipe outlet, optionally DN/OD 75/110, made of PP, RECYFIX PRO/NC 150 type 01
Product description
RECYFIX PRO/NC 150 type 01 - End cap, made of recycled polypropylene, with connection possibility and preformed pipe outlet, optionally DN/OD 75/110, for start/end of channel run, item no. 40591
Packaging unit
450
