Article No. 41387
End caps
for NW 200, for Type 010, with combined outlet DN/OD 110, made of PP
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

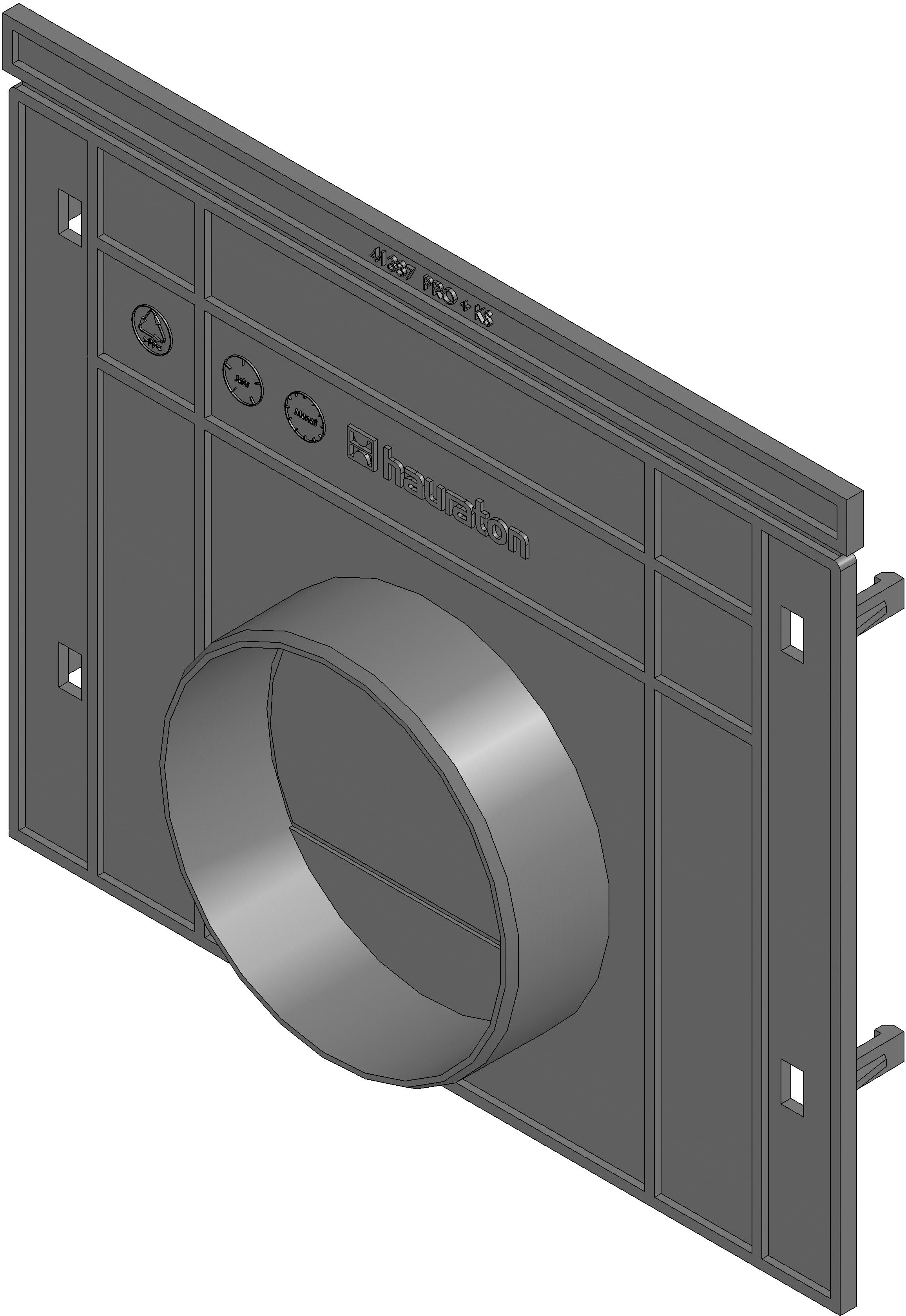

Product image

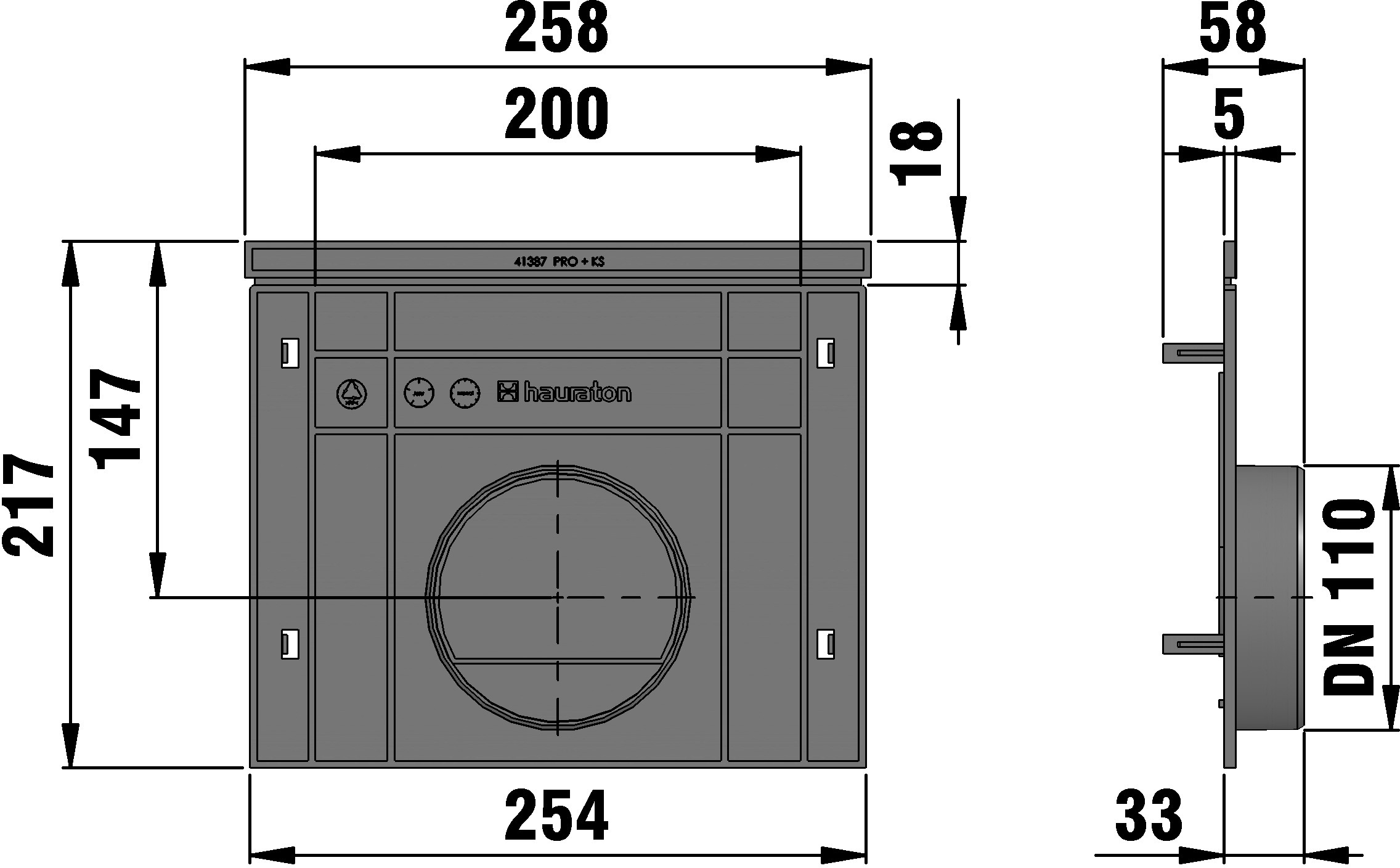

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
41387
Width
258 mm
Height
217 mm
Weight
0.20 kg
Material
recycled, modified Polypropylene
Nominal size
200
Sales text
End cap with connection possibility and preformed pipe outlet DN/OD 110, made of PP, RECYFIX PRO/NC/SUPER KS 200 type 010
Product description
RECYFIX PRO/NC/SUPER KS 200 type 010 - End cap, made of recycled polypropylene, with connection possibility and preformed pipe outlet, optionally DN/OD 110, for start/end of channel run, item no. 41387
Packaging unit
132
