Article No. 65322
Extension frame element 30 x 30
Frame, type 70, galvanised
Smaller quantities can be delivered immediately from stock, items will soon be available again in larger quantities
Questions?
Our experienced planning team will be happy to help you.
Get in touch

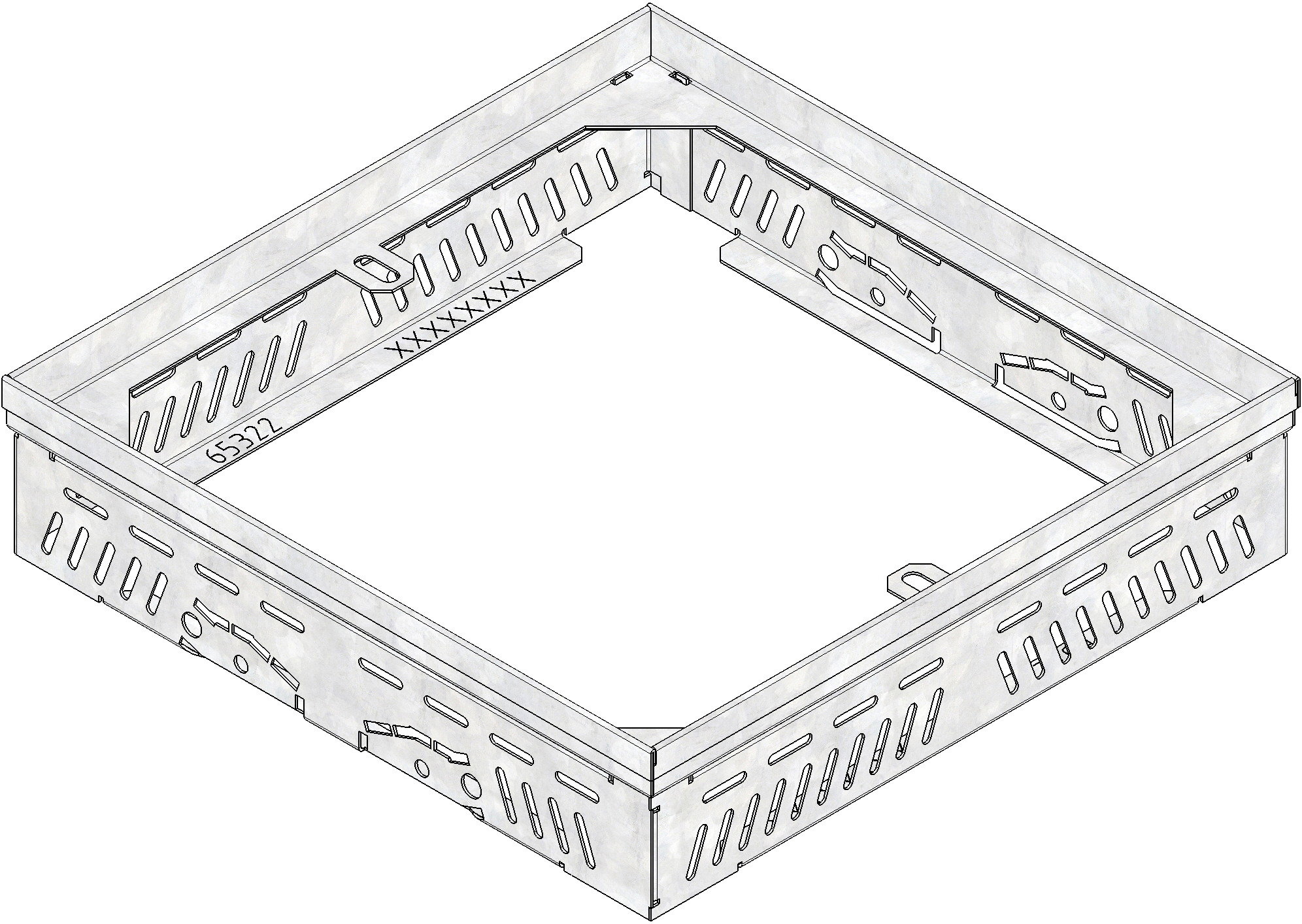

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65322
Length
300 mm
Width
300 mm
Height
70 mm
Weight
0.95 kg
Material
strip galvanized steel
Height of angle housing
-
Internal channel cross-section
-
Fall
-
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
DACHFIX POINT Gully 30/30 type 70, also for maintenance purposes above a flat roof drain, galvanised, cl. A 15
Product description
DACHFIX POINT Gully 30/30 type 70, made of galvanised steel, also for maintenance purposes above a flat roof drain, with connection possibility for cross-intersection channel, load class A 15, LxWxH 300x300x70 mm, item no. 65322
Packaging unit
120
Tender Texts
Installation instructions
