Article No. 26863
FASERFIX SUPER 100, class D 400
Ductile iron cover, SW 94/16 mm, galvanised, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

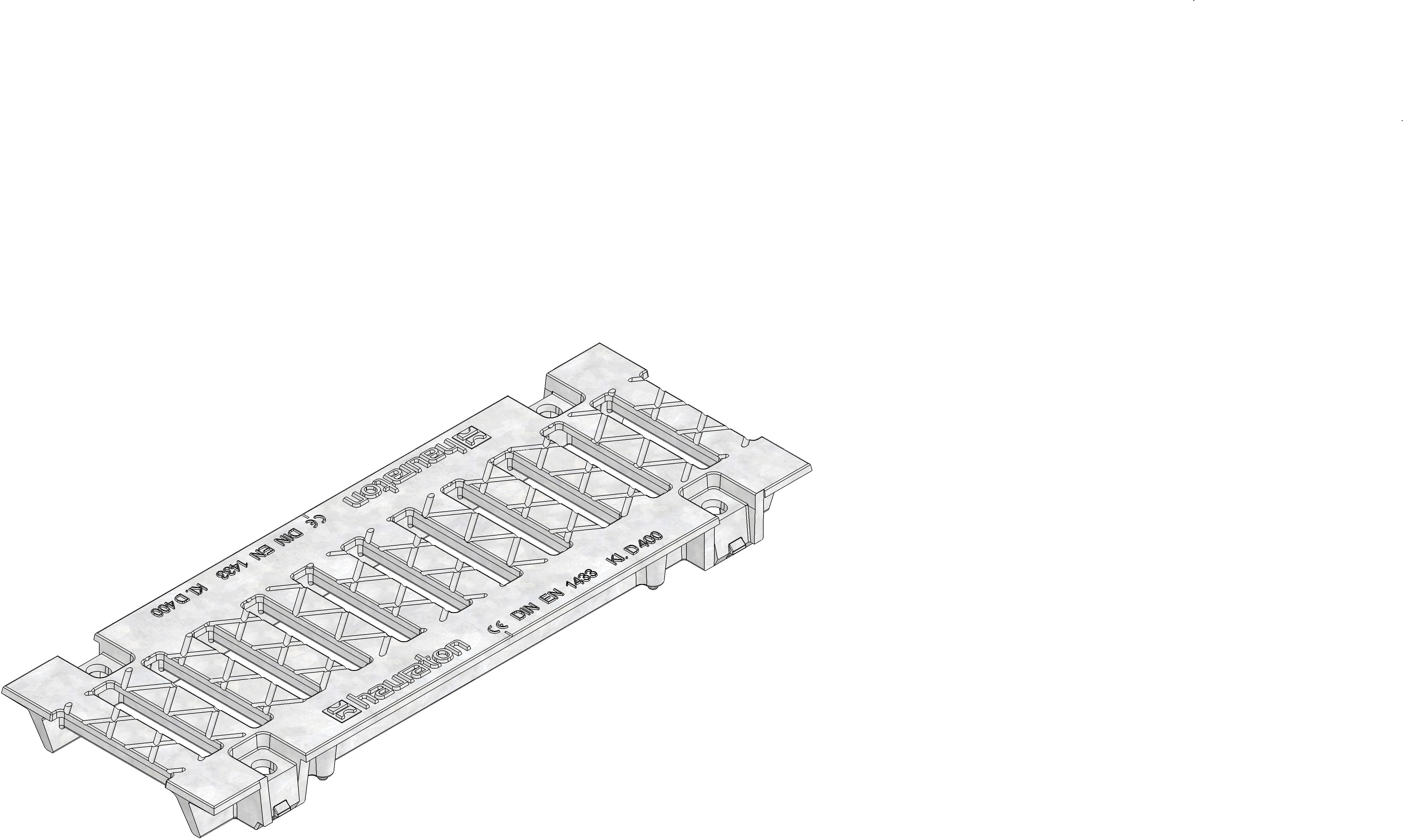

Product image
Technical drawing
Drawing (CAD)

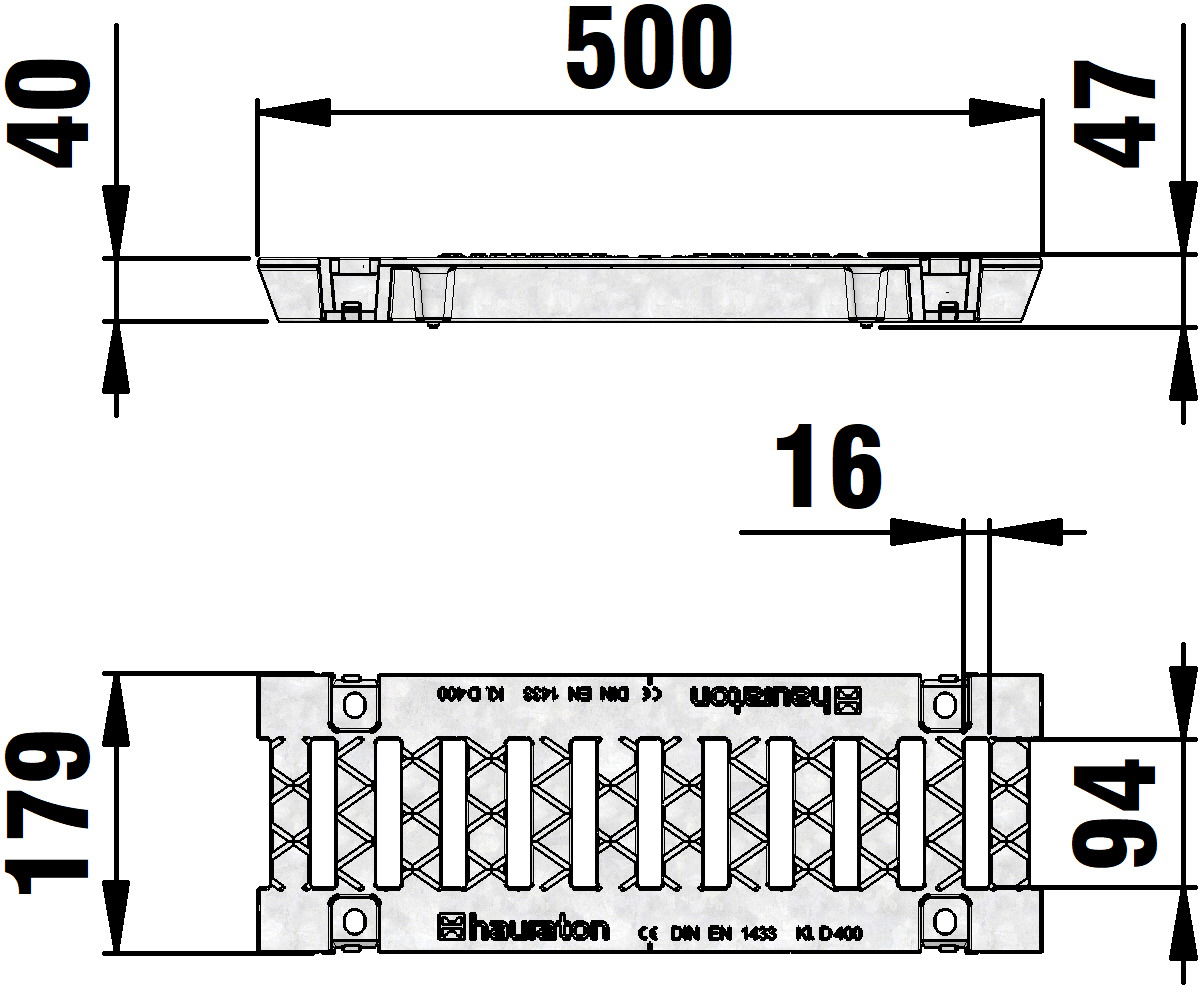

Drawing

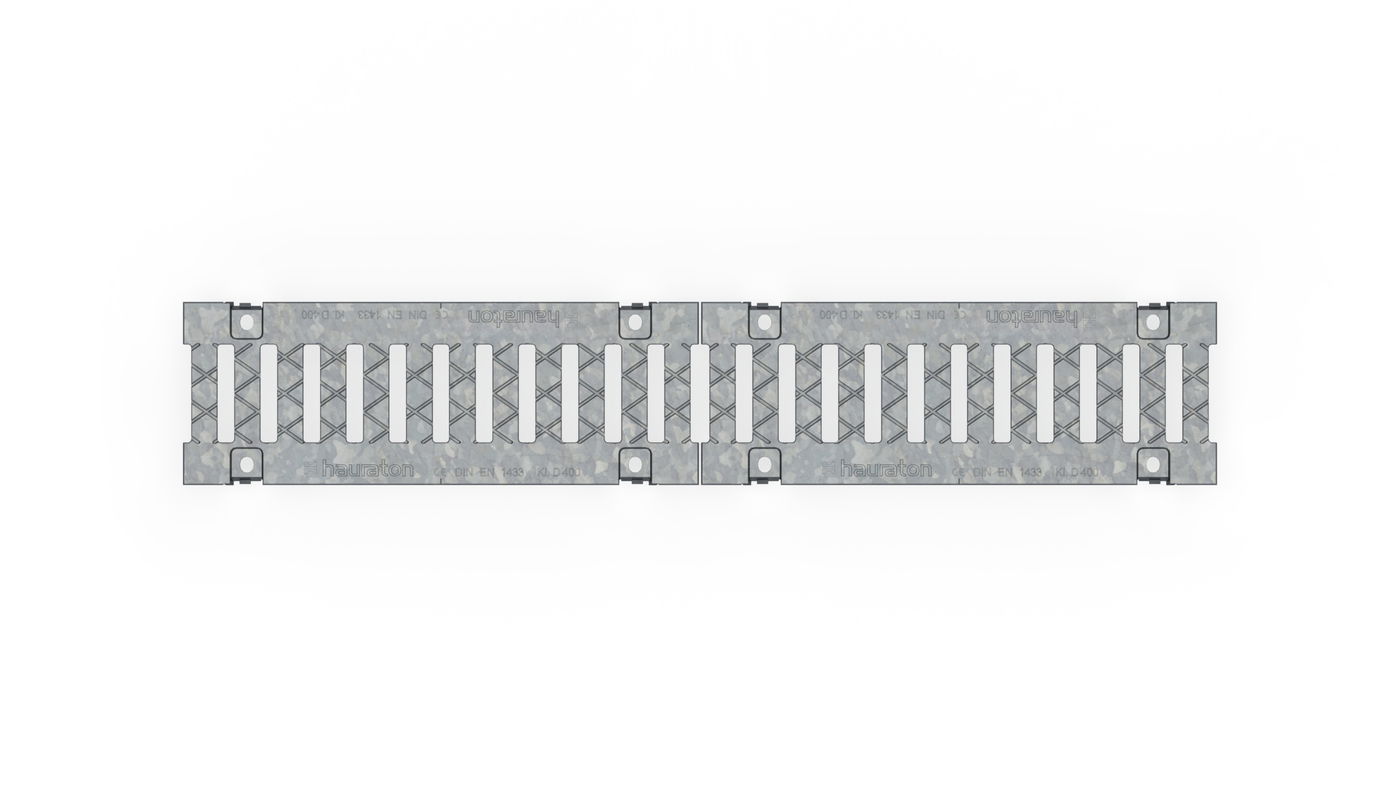

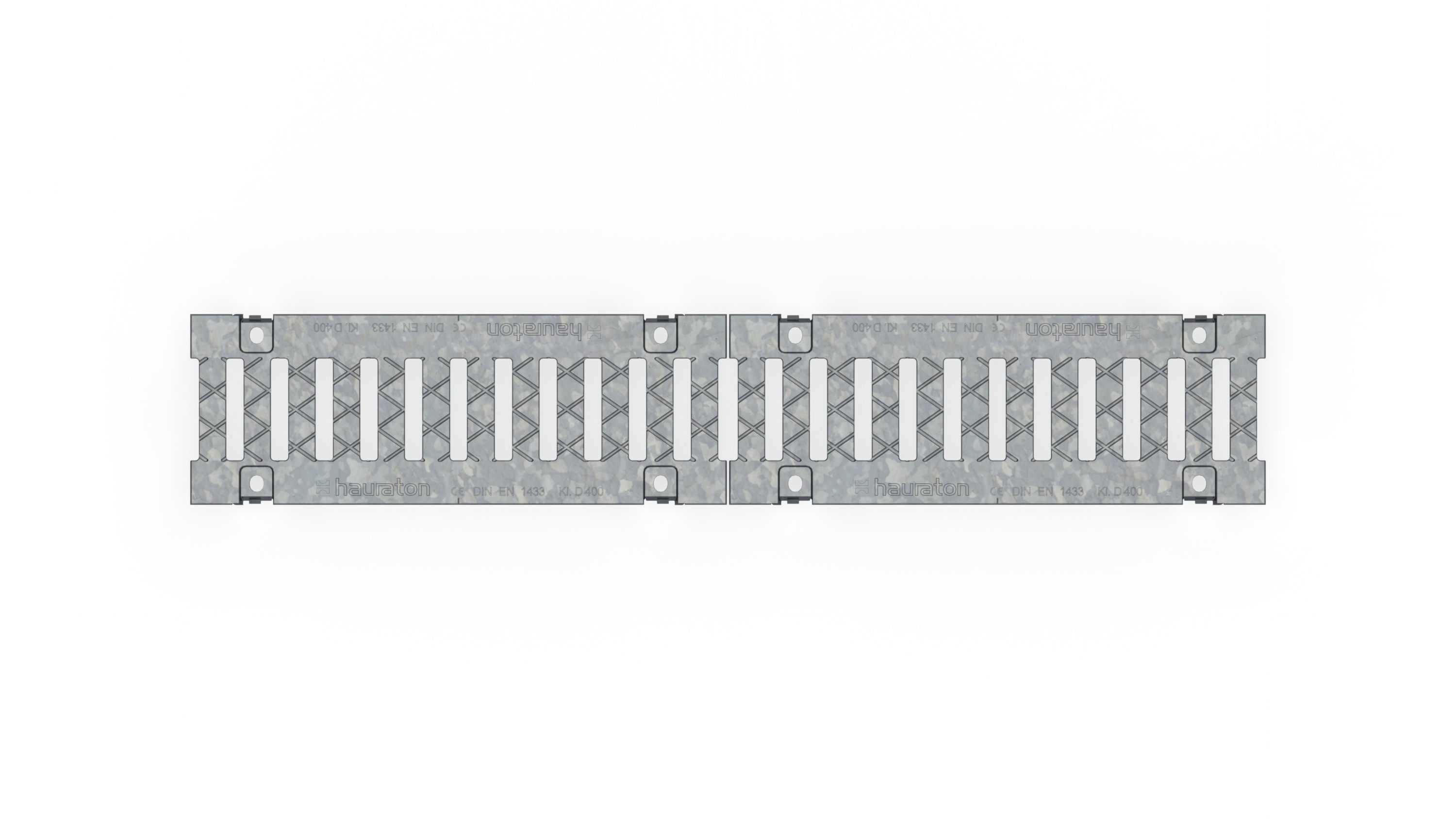

Top view
Data Sheet
Technical information and metrics
Article No.
26863
Length
500 mm
Width
179 mm
Height
47 mm
Einlegetiefe
40 mm
Weight
5.97 kg
Material
Ductile iron GJS 500-7
Intake cross-section
360.0 cm²/m
Nominal size
100
Inlet opening
16
Fixing type
SIDE-LOCK, Bolting
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron cover SW 94/16 mm, galvanised, cl. D 400, FASERFIX SUPER 100, 0.5 m
Product description
FASERFIX SUPER 100 - Ductile iron cover SW 94/16 mm, made of spheroidal ductile iron EN-GJS-500-7, galvanised, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 26863
Packaging unit
128
Declaration of Performance
