Article No. 32953
FASERFIX SUPER 500, class F 900
Ductile iron cover, 3x SW 140/18 mm, black, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

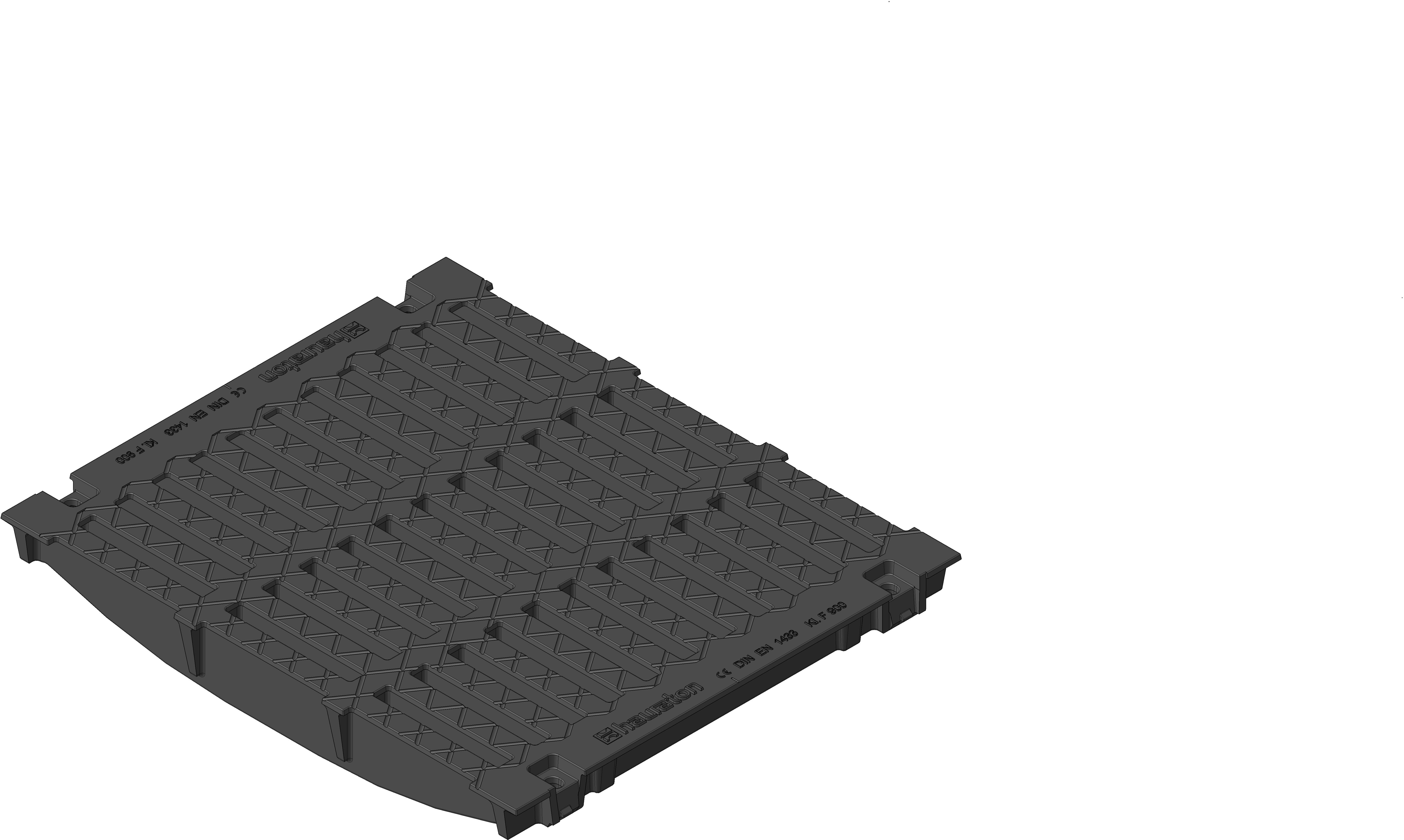

Product image

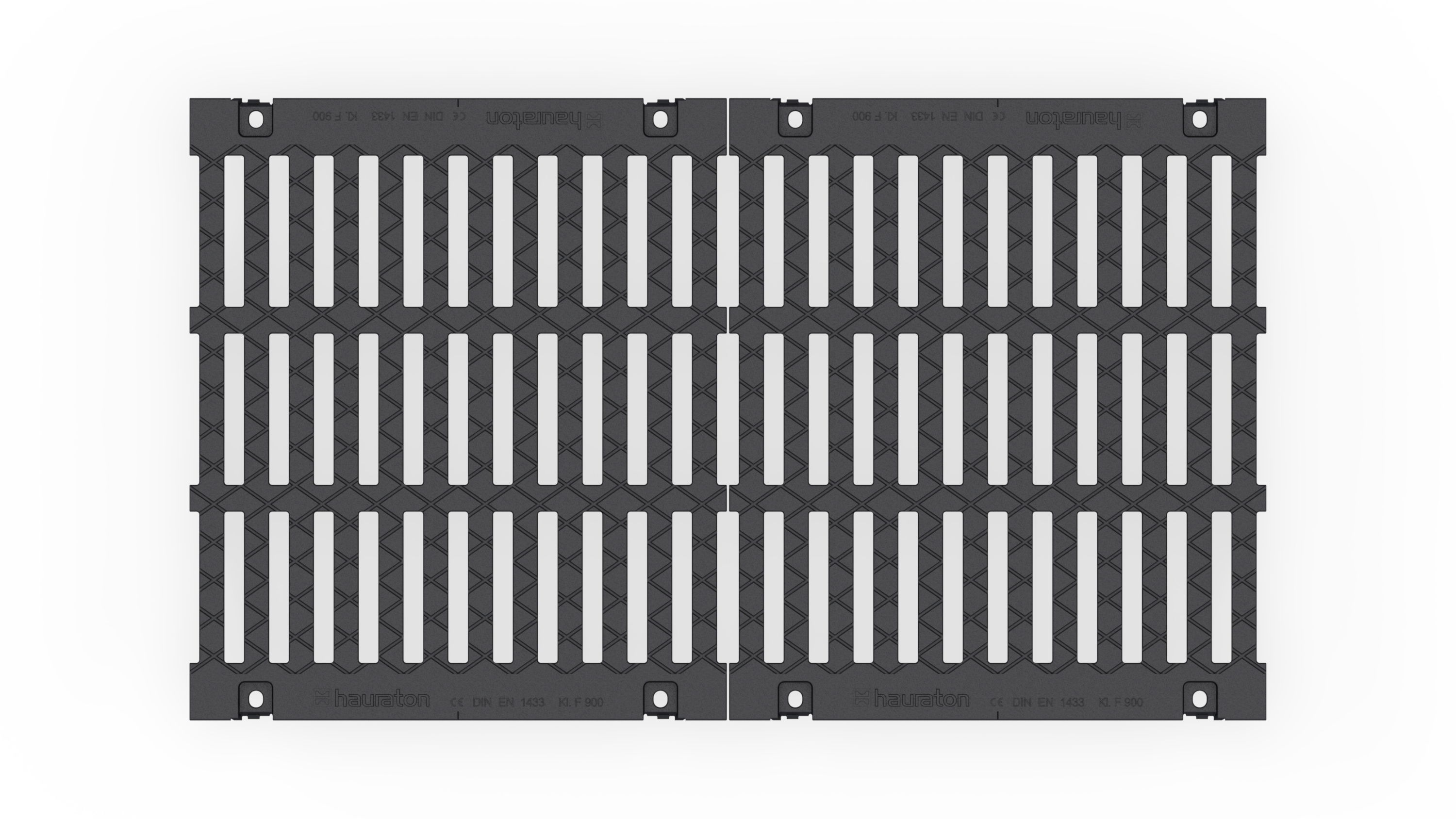

Top view
Technical drawing
Drawing (CAD)

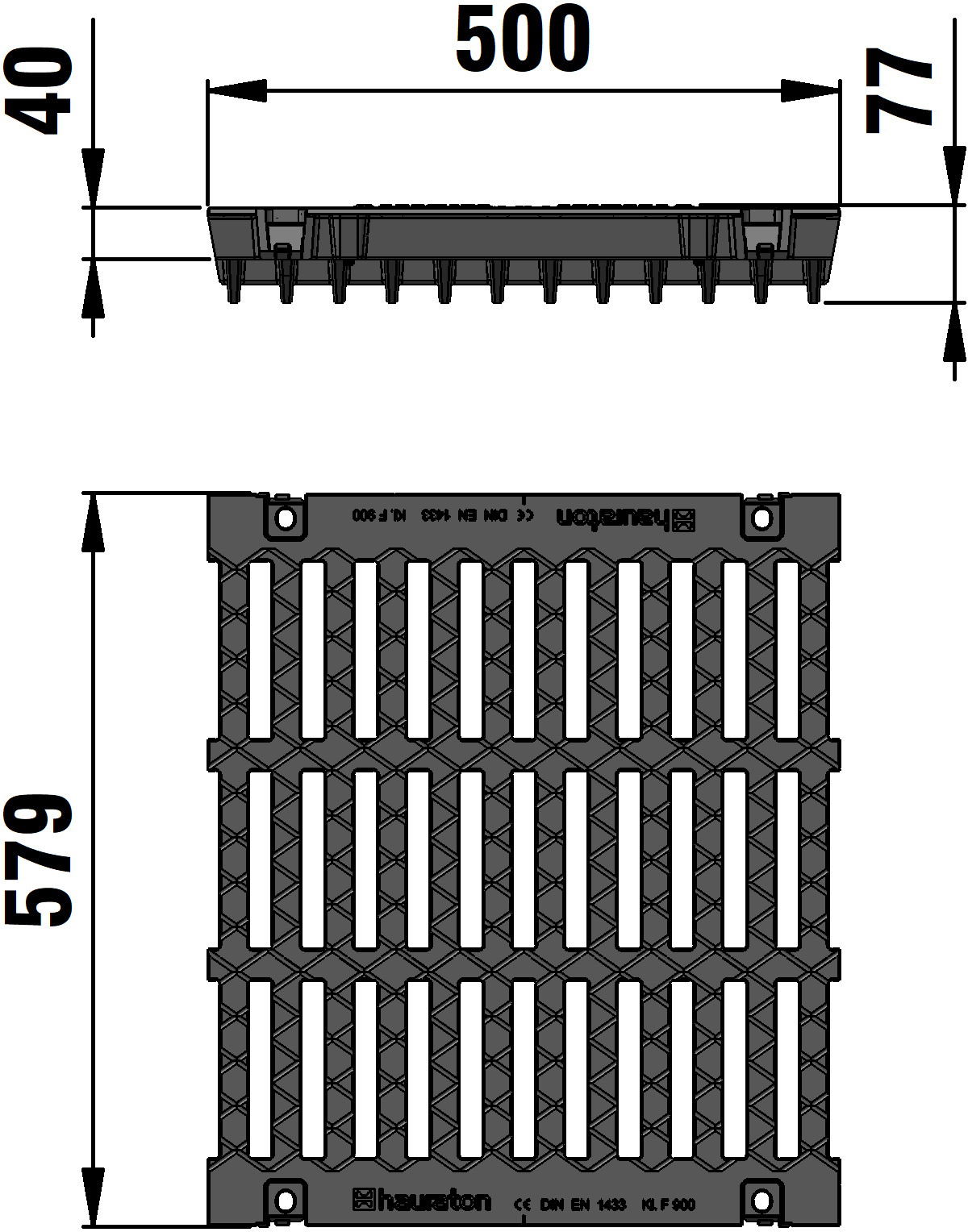

Drawing
Data Sheet
Technical information and metrics
Article No.
32953
Length
500 mm
Width
579 mm
Height
77 mm
Einlegetiefe
40 mm
Weight
47.00 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1810.0 cm²/m
Nominal size
500
Inlet opening
18
Fixing type
SIDE-LOCK, Bolting
Material cover
Ductile iron GJS 500-7
Regulations
DIN 19580
Sales text
Ductile iron cover 3x SW 140/18 mm, black, cl. F 900, FASERFIX SUPER 500, 0.5 m
Product description
FASERFIX SUPER 500 - Ductile iron cover 3x SW 140/18 mm, made of spheroidal ductile iron EN-GJS, black, with longitudinal slide protection, load class A 15 - F 900 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 32953
Packaging unit
24
Declaration of Performance
