Article No. 36065
Inspection elements
Access element, type 380, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

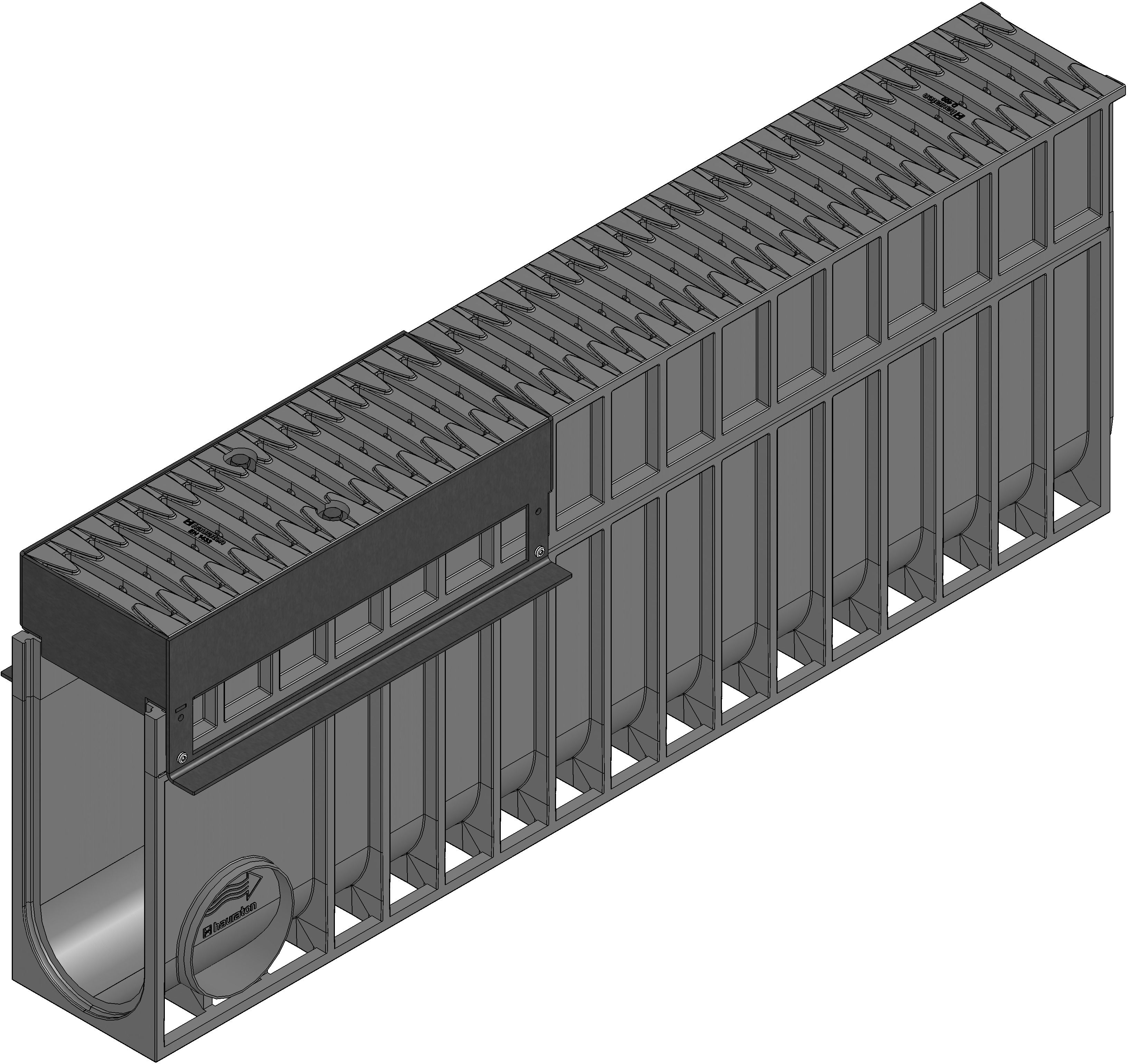

Product image
Technical drawing
Drawing (CAD)

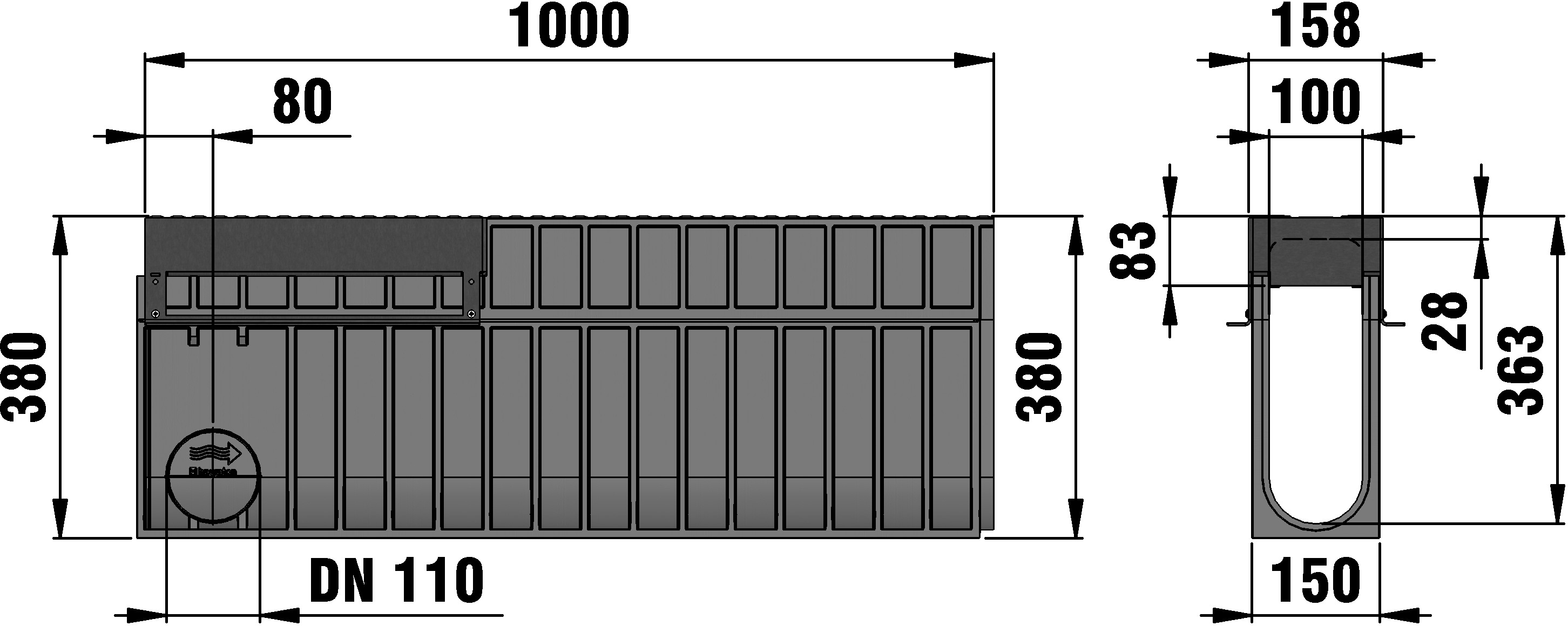

Drawing

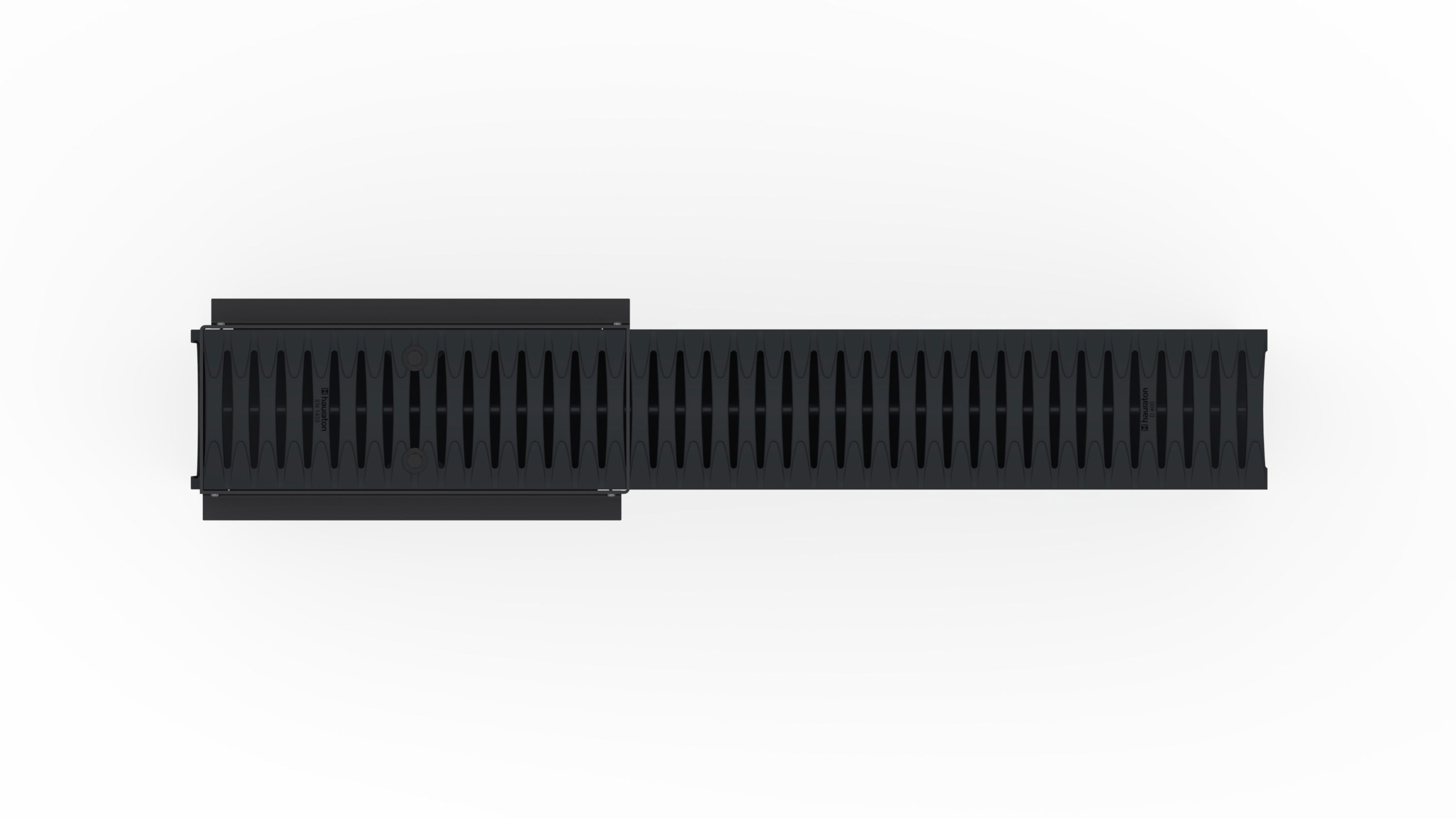

Top view
Data Sheet
Technical information and metrics
Article No.
36065
Length
1000 mm
Width
158 mm
Height
380 mm
Weight
13.72 kg
Material
KTL coated steel, reinforced Polypropylene
Height of angle housing
83 mm
Intake cross-section
351.0 cm²/m
Nominal size
100
Internal channel cross-section
295 cm²
Fall
-
Type according to DIN EN 1433
M
Regulations
DIN 19580
Sales text
RECYFIX MONOTEC 100 type 380 with permanently integrated cover in FIBRETEC design SW 110/9 mm and with integrated access unit, 1 m
Product description
RECYFIX MONOTEC 100 type 380 with integrated access element - Monolithic channel consists of channel body and permanently integrated cover in FIBRETEC design SW 110/9 mm, made of recycled polypropylene, black, and with integrated access unit, with lateral connection possibility DN/OD 110, load class A 15 - D 400 according to EN 1433, LxWxH 1000x158x380 mm, item no. 36065
Packaging unit
21
Tender Texts
Installation example
Concrete class D 400, with high shelf
Concrete class D 400,
Pavement class D 400,
Asphalt class D 400,
Installation instructions
