Article No. 13023
RECYFIX HICAP F 1000 up to load class F 900
Type 1200, ductile iron slot 14 mm, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

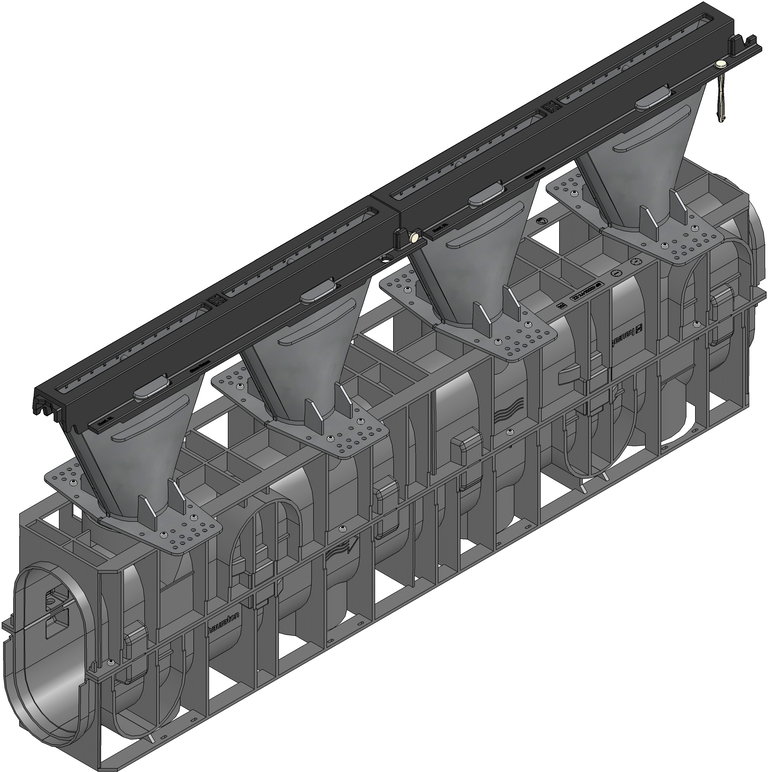

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
13023
Length
1000 mm
Width
146 mm
Height
465 mm
Weight
10.75 kg
Material
Ductile iron GJS 500-7, Galvanised steel, Polyamide, recycled, modified Polypropylene
Height of angle housing
228 mm
Intake cross-section
124.0 cm²/m
Nominal size
1000
Internal channel cross-section
184 cm²
Fall
-
Height funnel
200 mm
Inlet opening
220
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX HICAP F 1200 with ductile iron slot 14 mm, KTL coated, cl. F 900, 1 m
Produktbeschreibung
RECYFIX HICAP F 1200 -consists of closed channel body with inlet adapter, with integrated ductile iron slot 14 mm, KTL coated, loading capacity from A 15 up to F 900, length 1000 mm, item no. 13023
Verpackungseinheit
21 Unit / Pallet
Declaration of Performance
Tender Texts

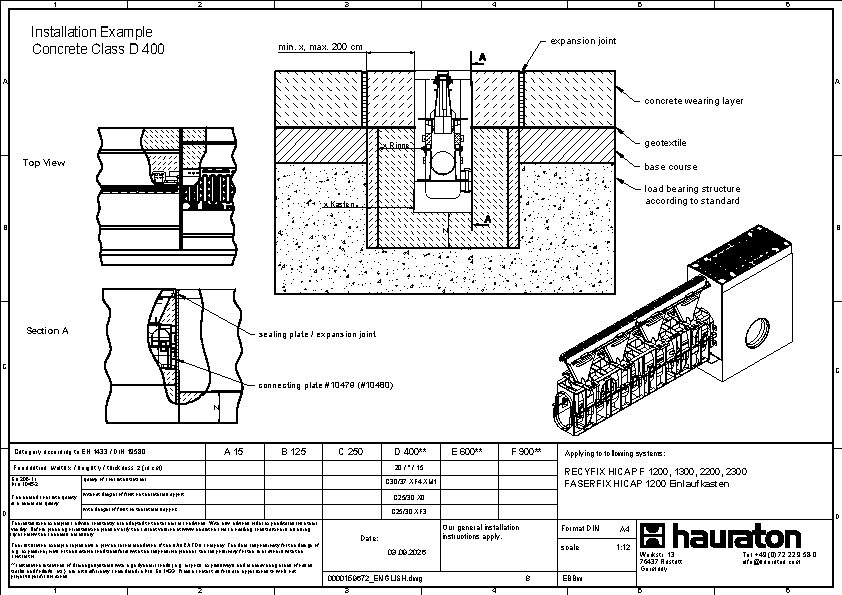

Installation example
Asphalt class A 15 - F 900
Asphalt class A 15 - F 900
Concrete class A 15 - F 900
Concrete class A 15 - F 900
Concrete class A 15 - F 900
Pavement / large-size slab class D 400 - F 900
Pavement / large-size slab class D 400 - F 900
Concrete class D 400 - F 900
Asphalt class A 15 - D 400
Concrete class A 15 - D 400
Pavement / large-size slab class D 400
Asphalt class E 600 - F 900
Concrete class E 600 - F 900
Pavement / large-size slab class E 600 - F 900
Concrete class D 400 - F 900
Concrete class A 15 - F 900
Concrete class D 400
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Pavement class A 15 - C 250
Asphalt class A 15 - F 900
Concrete class A 15 - F 900
Pavement / large-size slab class D 400 - F 900
Pavement / large-size slab class D 400
Asphalt class D 400
Asphalt class D 400
Concrete class D 400
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Pavement class A 15 - C 250
Asphalt class A 15 - F 900
Concrete class A 15 - F 900
Pavement / large-size slab class D 400 - F 900
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Asphalt class A 15 - E 600
Concrete class A 15 - E 600
Pavement / large-size slab class D 400 - E 600
Asphalt class F 900
Concrete class F 900
Pavement / large-size slab class F 900
