Back to overview
Article No. 13680

RECYFIX HICAP F 8000 up to load class F 900

Type 8300, ductile iron slotted cover SW 28 mm, KTL-coated, 1.0 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

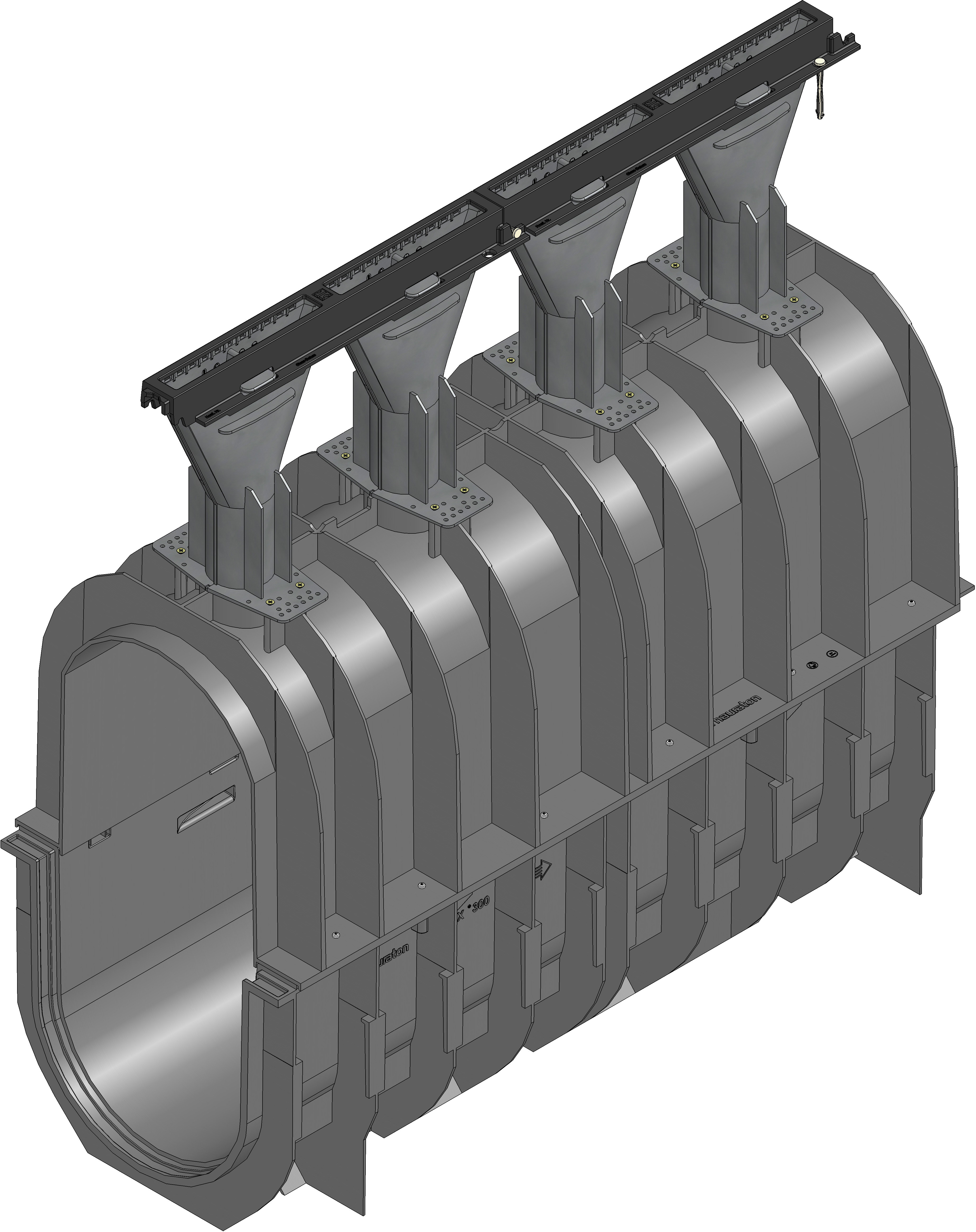

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
13680
Length
1000 mm
Width
432 mm
Height
1050 - 0 mm
Weight
22.24 kg
Material
ABS, Aluminium, Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, Polyamide
Height of angle housing
-
Intake cross-section
248.0 cm²/m
Internal channel cross-section
1714 cm²
Fall
-
Height funnel
300 mm
Inlet opening
220
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP F 8300 with ductile iron slotted cover SW 28 mm, KTL-coated, cl. F 900, 1 m
Product description
RECYFIX HICAP F 8300 consists of a closed channel body, made of recycled polypropylene, with inlet funnel, with integrated ductile iron slotted cover SW 28 mm, KTL-coated, load class A 15 - F 900 according to EN 1433, length 1000 mm, item no. 13680
Packaging unit
6
