RECYFIX HICAP T 8000 up to class F 900

32380

500 mm

432 mm

1050 mm

34.69 kg

354 mm

154.0 cm²/m

8000

1714 cm²

-

300 mm

EN 1433, DIN 19580

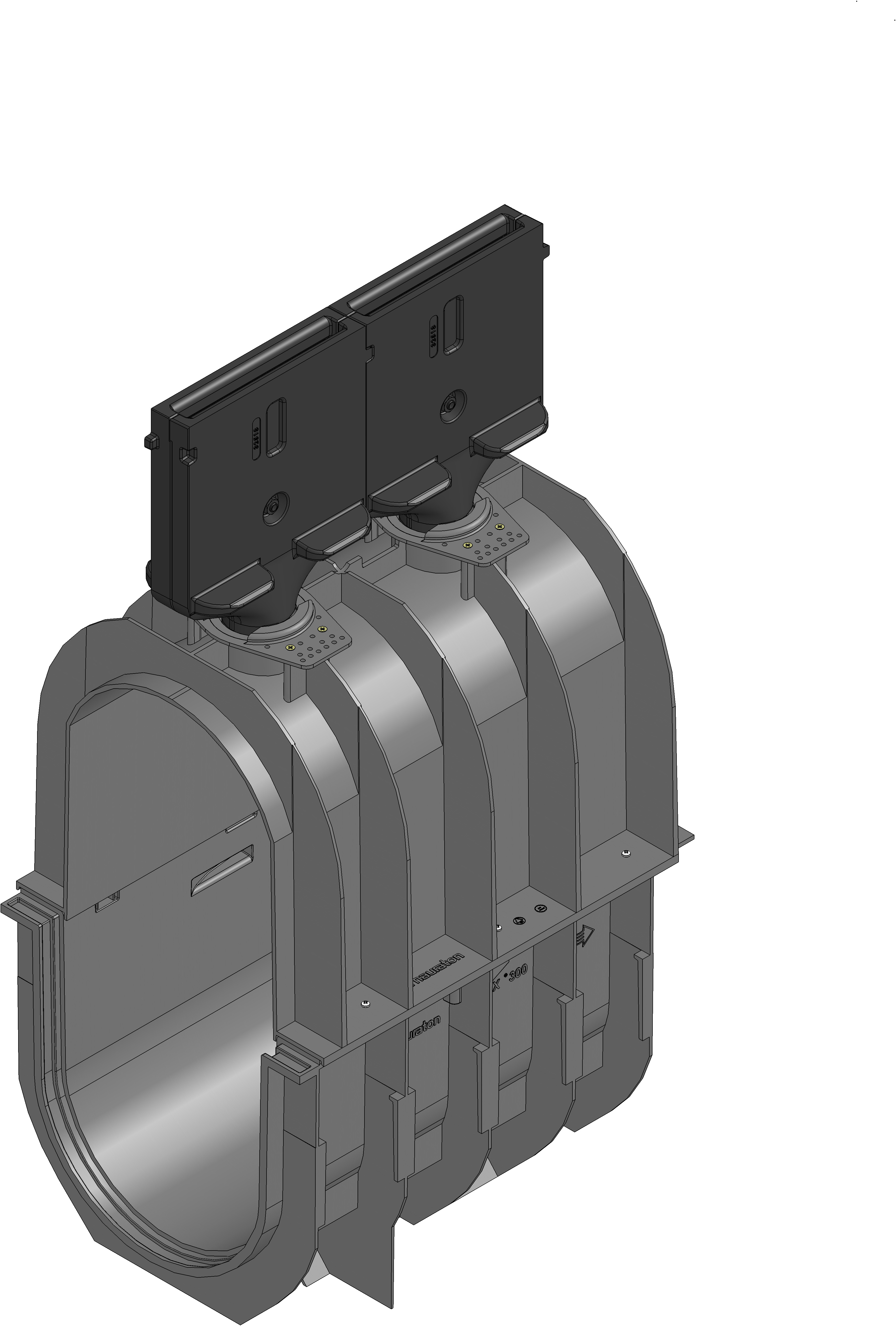

RECYFIX HICAP T 8300 Drainage/Retention channel type OPA/BZE with 30 cm high ductile iron slotted drainage inlets and additional inlets for OPA/BZE drainage, KTL-coated, cl. F 900, 0.5 m

RECYFIX HICAP T 8300 - Drainage/Retention channel type OPA/BZE with channel body made of recycled polypropylene, with 30 cm high ductile iron slotted drainage inlets SW 17 mm made of spheroidal ductile iron EN-GJS-500-7 (GGG-50), KTL-coated, hydraulically optimised edge of the slotted covers, with additional openings on both sides for drainage of porous asphalt surfaces (OPA) or for drainage during construction (BZE), load class A 15 - F 900 according to EN 1433, with a drainage cross-section of 1714 cm² and a retention volume of 171.4 L/m, LxWxH 500x432x1050 mm, item no. 32380

-
