Article No. 32386
RECYFIX HICAP T 8000 up to class F 900
Type 8300 with ductile iron slotted covers
Questions?

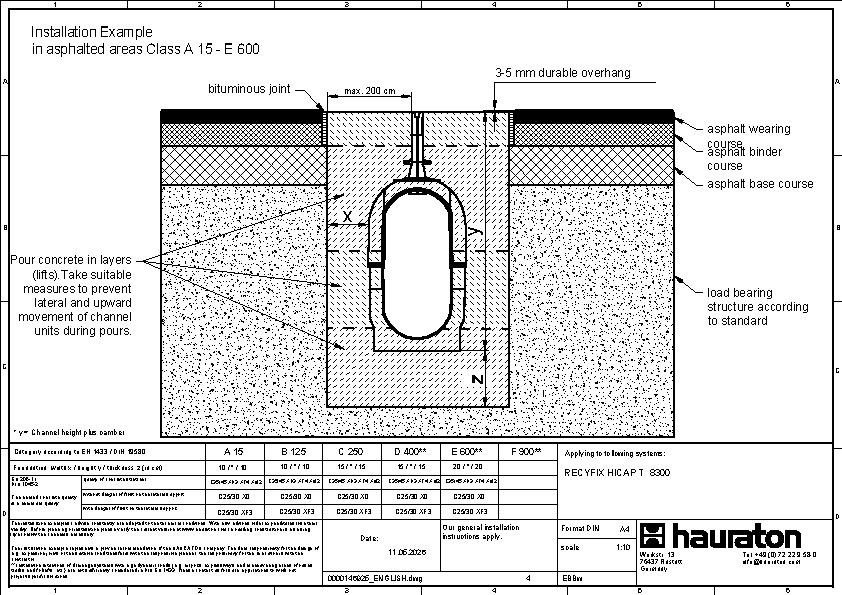

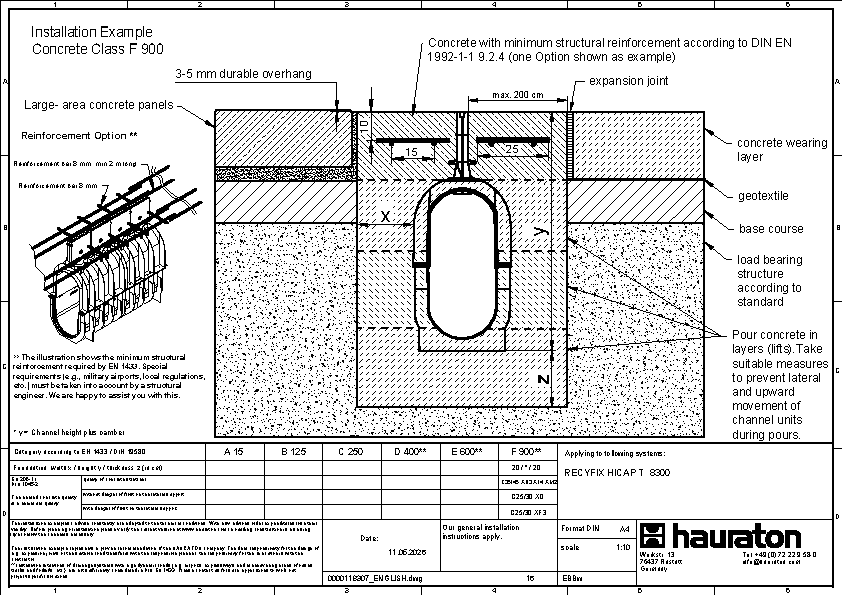

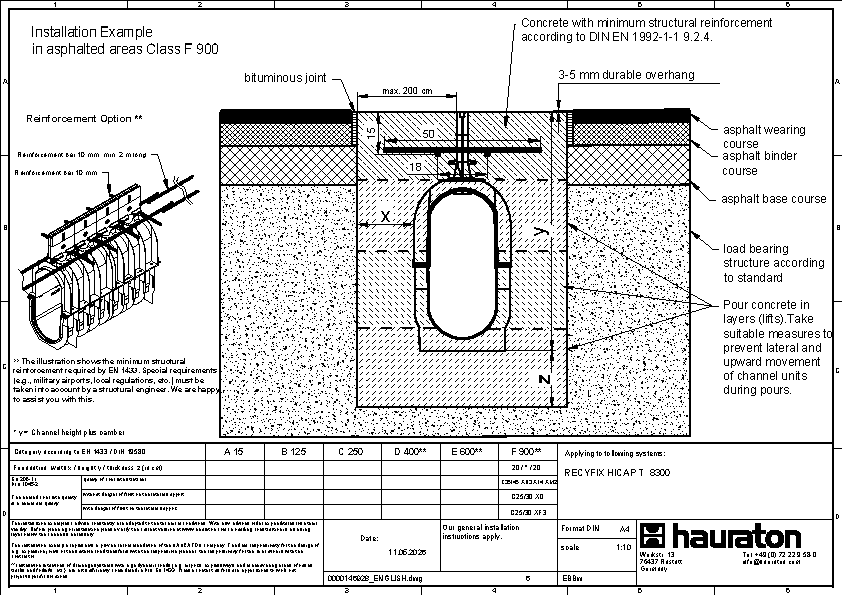

Technical drawing
Drawing (CAD)
Drawing

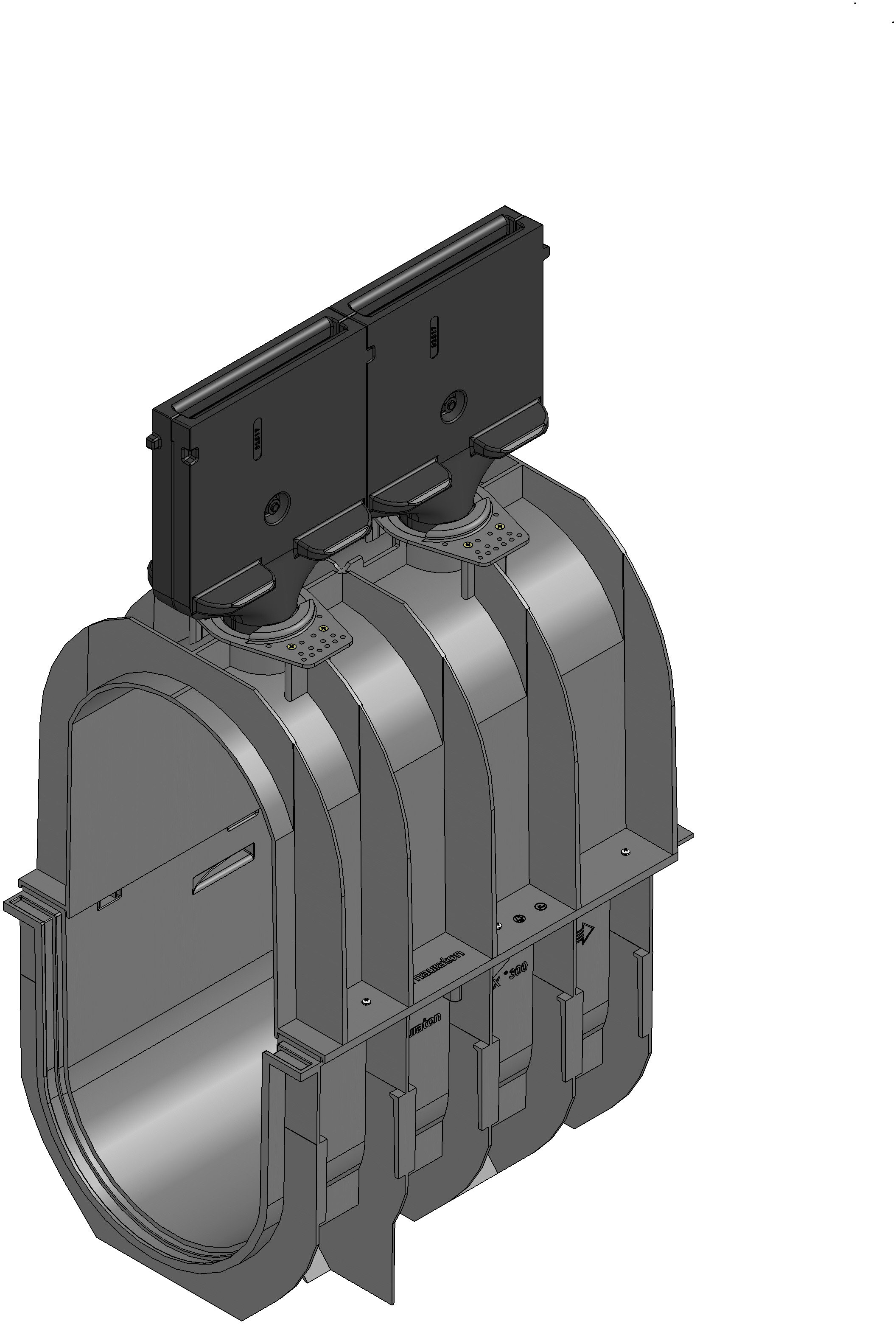

Product image
Data Sheet
Technical information and metrics
Article No.
32386
Length
500 mm
Width
432 mm
Height
1050 mm
Weight
33.81 kg
Height of angle housing
354 mm
Intake cross-section
154.0 cm²/m
Nominal size
8000
Internal channel cross-section
1714 cm²
Fall
-
Height funnel
300 mm
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX HICAP T 8300 Drainage/ Retention channel with 30 cm high solid cast iron slotted covers, KTL coated, cl. F 900, 0,5 m
Produktbeschreibung
Drainage/ Retention channel RECYFIX®HICAP T 8300 channel made of modified PP, with 30 cm high solid cast iron slotted covers, made of spheroidal ductile iron EN-GJS 500-7 (GGG-50) hydraulically optimized upper edge of the slotted covers, SW 17 mm, KTL coated, loading capacity F 900 according to DIN 19580/EN 1433, drainage cross-section 1714 cm² and a retention volume of 171,4 l/m, L/W/H 500x432x1050 mm, item no. 32386
