Article No. 48848
RECYFIX NC 150, class E 600
Type 01 with ductile iron cover, SW 154/18 mm, black, 4-fold bolted, 0.5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

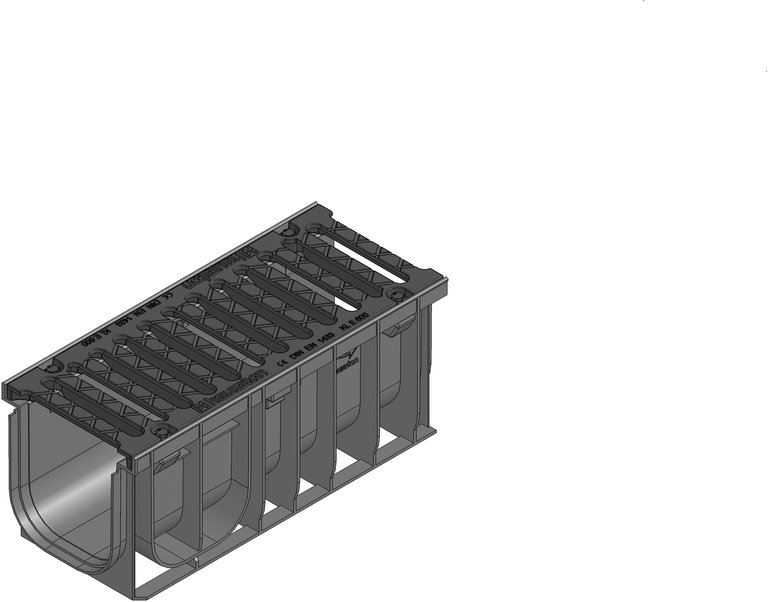

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
48848
Length
500 mm
Width
212 mm
Height
210 mm
Einlegetiefe
20 mm
Weight
7.88 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
702.0 cm²/m
Nominal size
150
Internal channel cross-section
230 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC 150 Channel type 01 with ductile iron cover SW 154/18 mm, black, cl. E 600, 0.5 m
Product description
RECYFIX NC 150 type 01 - Channel body made of recycled polypropylene, with integrated edge frames, with ductile iron cover SW 154/ 18 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, 4-fold bolting, load class A 15 - E 600 according to EN 1433, LxWxH 500x212x210 mm, item no. 48848
Packaging unit
50
Declaration of Performance
Tender Texts
Installation example
Concrete class D 400 - E 600,
Asphalt class D 400 - E 600,
Pavement class D 400,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Concrete class C 250 - D 400, as double strand
Asphalt class C 250 - D 400, as double strand
Concrete class E 600,
Installation instructions
