Article No. 49572
RECYFIX NC 200, class E 600
Type 010 with ductile iron cover SW 204/18 mm, black, 8-fold bolted, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

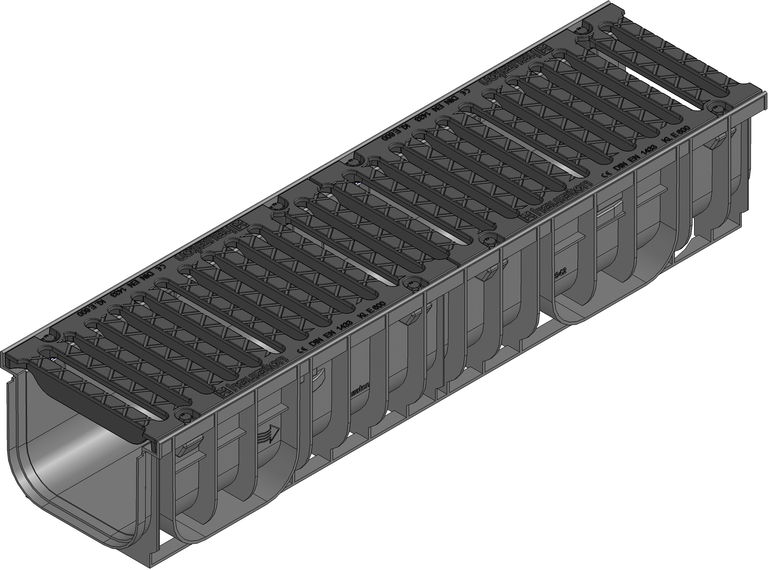

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
49572
Length
1000 mm
Width
262 mm
Height
200 mm
Weight
20.76 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
936.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regelwerke
EN 1433, AS 4586, DIN 19580
Vertriebstext
RECYFIX NC 200 type 010 with ductile iron cover, SW 204/18 mm, black, cl. E 600
Produktbeschreibung
RECYFIX NC 200 type 010 - channel made of modified PP with integrated angle housing, according EN 1433, with vertical connection possibility DN/OD 110/160, with ductile iron cover made of spheroidal ductile iron GJS 500-7, SW 204/18 mm, black, with horizontal thrust resistance, eightfold locking, loading capacity from A 15 - E 600, L/W/H 1000 x 262 x 200 mm item no. 49572
Verpackungseinheit
20 Unit / Pallet
Declaration of Performance
Tender Texts
Installation instructions
Installation example
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class D 400 - E 600
Concrete class D 400 - E 600
Pavement class D 400 - E 600
Asphalt class A 15 - B 125
Asphalt class C 250 - D 400
Concrete class C 250 - D 400
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Pavement class D 400
Asphalt class E 600
Concrete class C 250 - D 400
Asphalt class C 250 - D 400
